Bridge Rectifiers | Status :
Active

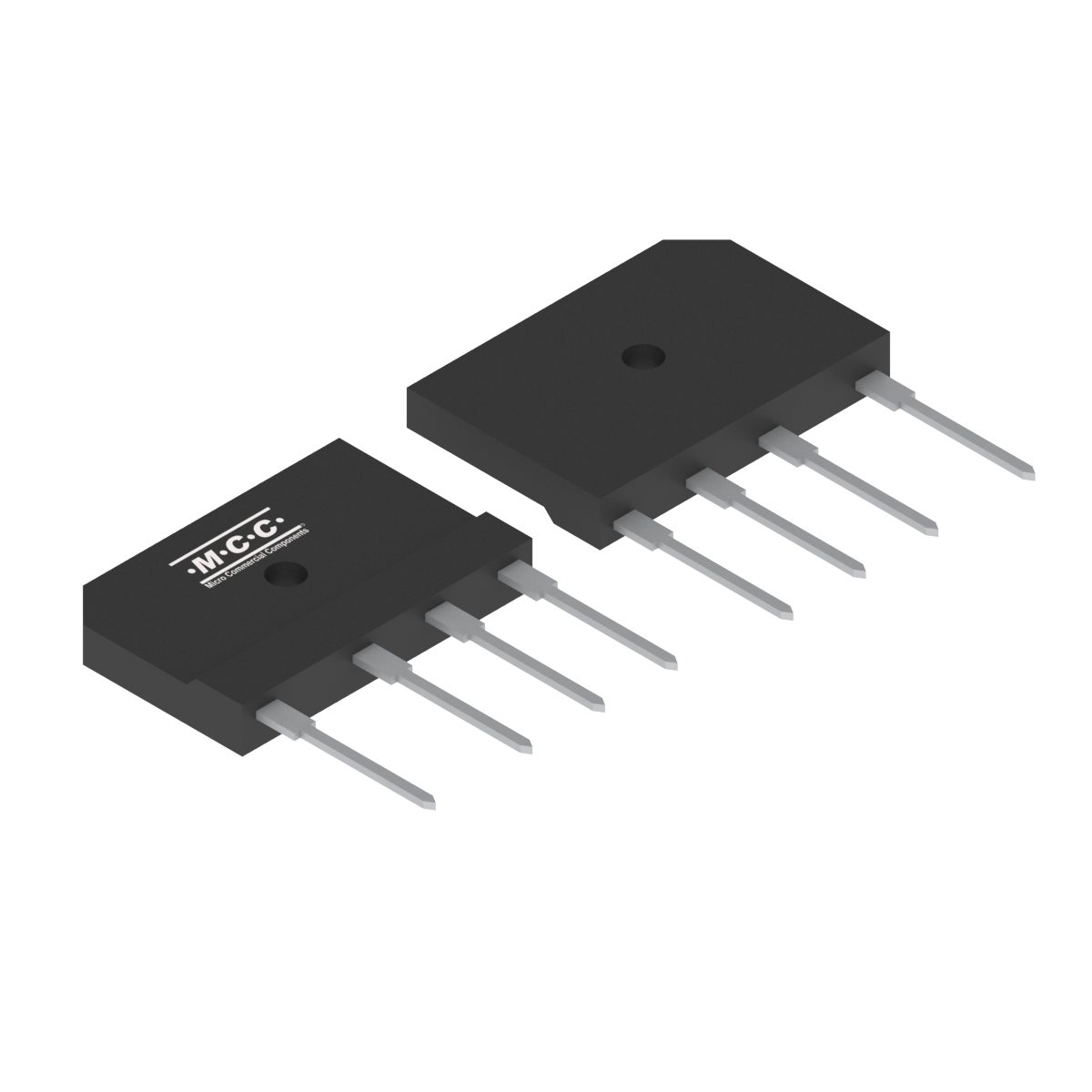

GBJ25L06
- Package Type:GBJ
- Packing Info:Tube : 15pcs/Tube, 750pcs/Box, 1.5K/Ctn;
- Category:Bridge Rectifiers
Product Detail
| Part Number | Number of Functions | IF(AV)(A) | VRWM (V) | VF (V) [max]@IF(A) |
IR (uA) [max] @ VR |
IFSM (A) | IF(A) | VR (V) | Tj [max] (°C) |
|---|---|---|---|---|---|---|---|---|---|
| GBJ25L06 | 1-Phase Bridge | 25 | 600 | 0.92 | 5 | 320 | 12.5 | 600 | 150 |
| Part Number GBJ25L06 | Number of Functions 1-Phase Bridge | IF(AV)(A) 25 | VRWM (V) 600 |
VF (V) [max]@IF(A) 0.92 |
IR (uA) [max] @ VR 5 |
IFSM (A) 320 | IF(A) 12.5 | VR (V) 600 | Tj [max] (°C) 150 |
Packing Information
Environmental Information
Download
| Tin Whisker Test Report |
|---|
|
