Schottky Barrier Rectifiers | Status : Active
Automotive

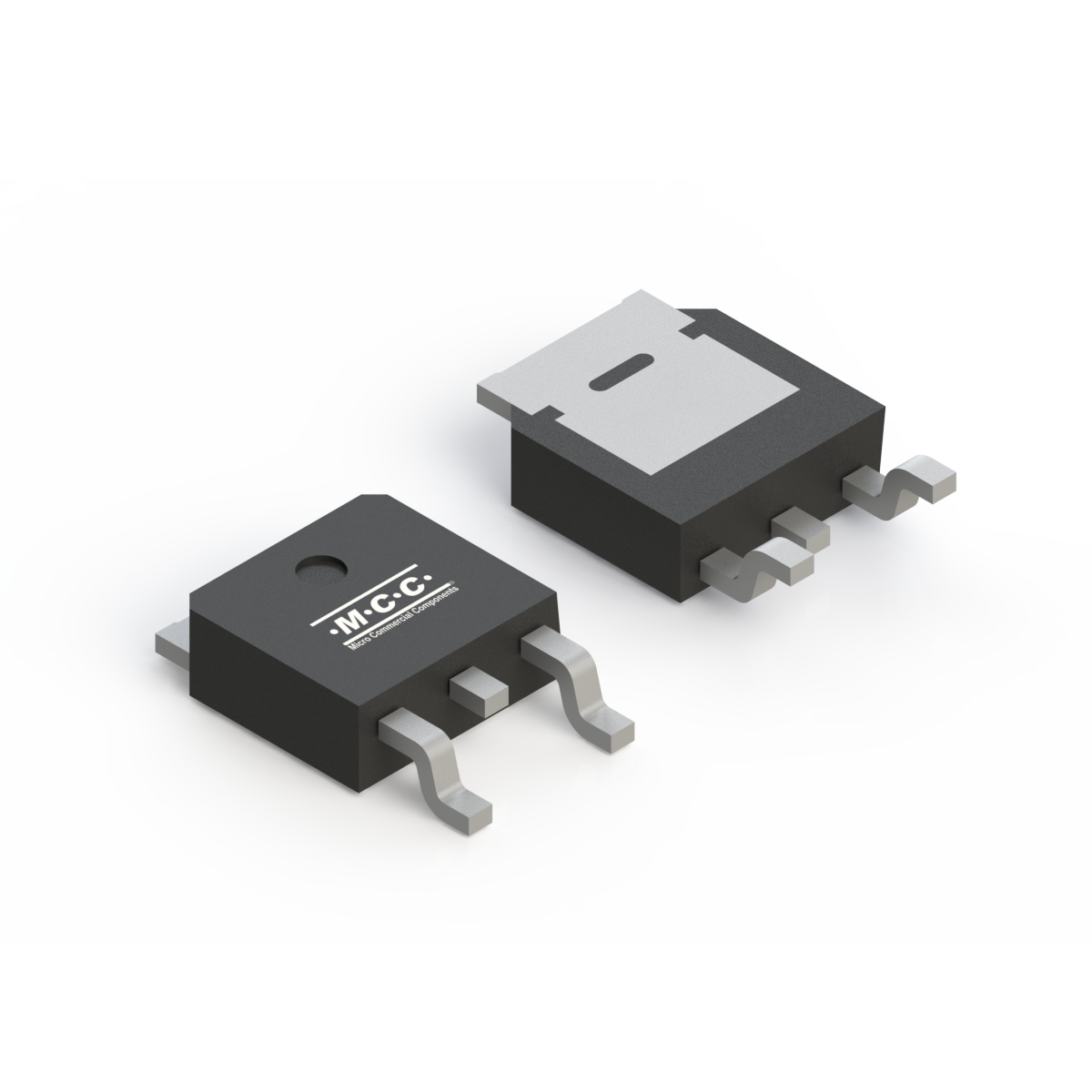

MBRD1045CTQ

Check Stock Add To Cart
Datasheet ECAD Model

Product Detail

Part Number Number of Functions IF(AV)(A) VRWM (V) VF
(V) [max]@IF(A)		 IR (uA)  [max] @
VR		 IFSM (A) VR (V) IF(A) Tj [max]
(°C)
MBRD1045CTQ Dual 10 45 0.58 100 120 45 5 150
Part Number MBRD1045CTQ Number of Functions Dual IF(AV)(A)  10 VRWM (V)  45 VF
(V) [max]@IF(A)  0.58 		IR (uA)  [max] @
VR  100 		IFSM (A)  120 VR (V)  45 IF(A)  5 Tj [max]
(°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
MBRD1045CTQ DPAK DPAK 0.3252 MBRD1045CT Tape&Reel: 2.5Kpcs/Reel;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
MSL Halogen Free
1 Halogen Free
