Power MOSFETS | Status : Active
Automotive

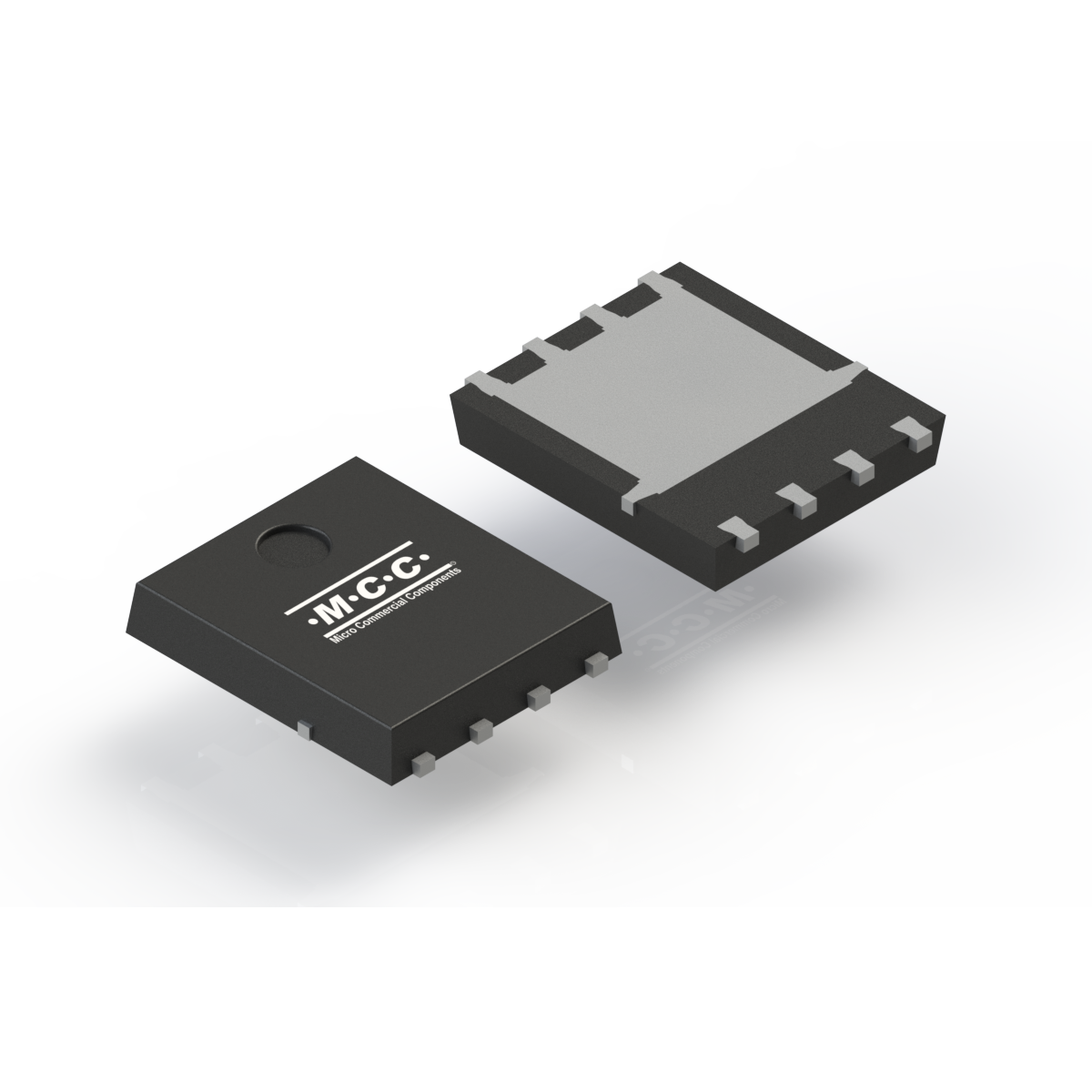

MCAC25P10YHE3

  • Package Type:DFN5060
  • Packing Info: Tape&Reel:5Kpcs/Reel;
  • Category:Power MOSFETS
Check Stock Add To Cart
Datasheet ECAD Model

Product Detail

Part Number Number of Functions Channel VDS VGS ID RDS(ON)
Max
@VGS=10V 		RDS(ON)
Max
@VGS=4.5V 		RDS(ON)
Max
@VGS=2.5V 		VGS(th)
Max 		ESD
Diode 		SPICE Model
MCAC25P10YHE3 Single P -100 ±20 -25 0.055 0.062 -2.5 No MCAC25P10YHE3.zip
V V A Ω Ω Ω V
Part Number MCAC25P10YHE3 Number of Functions Single Channel P VDS  -100 VGS  ±20 ID  -25 RDS(ON) Max @VGS=10V  0.055 RDS(ON) Max @VGS=4.5V  0.062 RDS(ON) Max @VGS=2.5V   VGS(th) Max  -2.5 ESD Diode  No SPICE Model  MCAC25P10YHE3.zip

Package

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
MCAC25P10YHE3 Package Type Image DFN5060 DFN5060 0.0878 MCAC25P10Y Tape&Reel:5Kpcs/Reel;

Reliability & Chemical Content link icon

Reliability Report Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report Halogen Free
Tin Whisker Test Report Halogen Free
