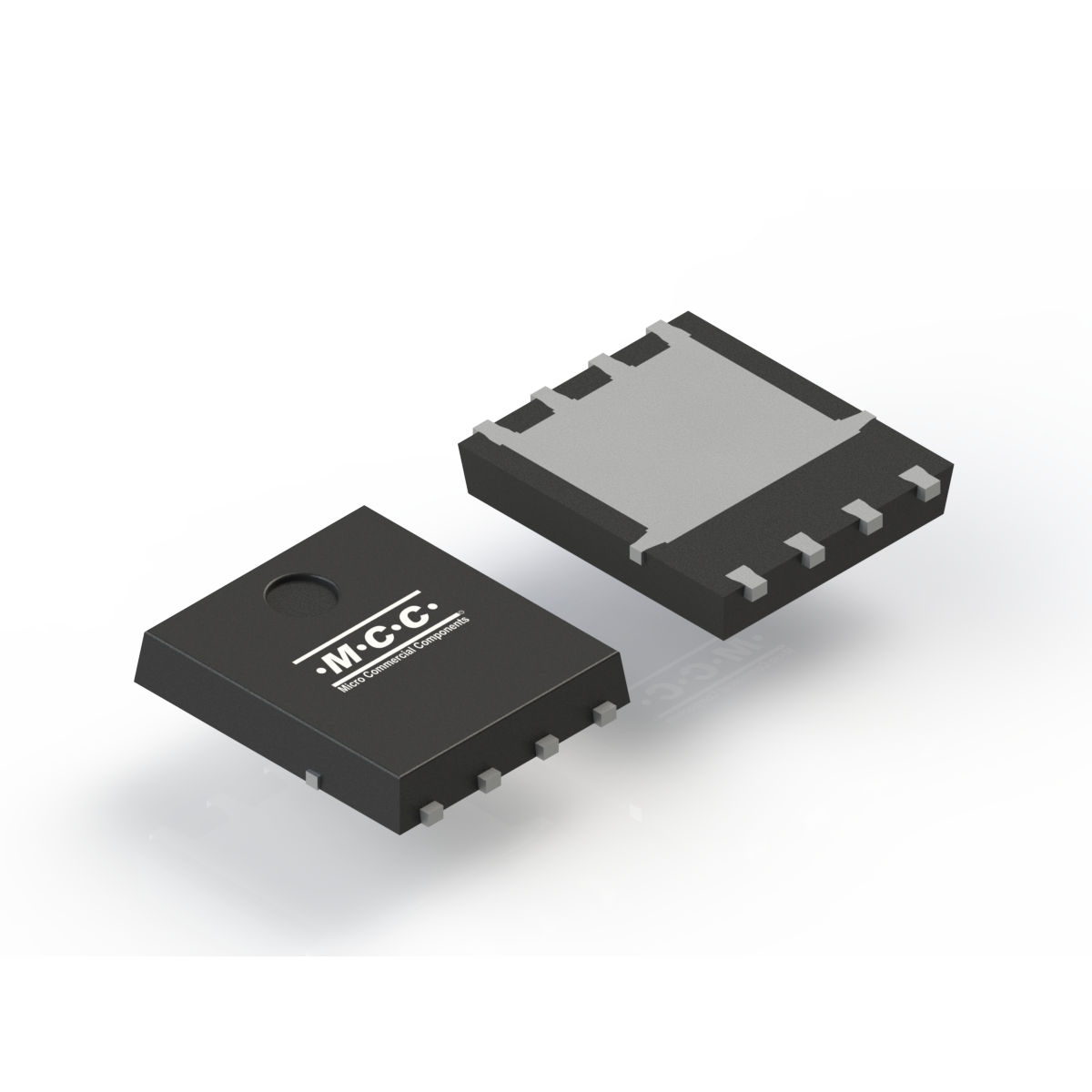

MCACL200N04Y
- Package Type:DFN5060-C
- Packing Info:Tape&Reel:5Kpcs/Reel;
- Category:Power MOSFETS
Product Detail
| Part Number | Number of Functions | Channel | Drain-Source Voltage VDS (V) |
Gate-Source Voltage VGS (V) |
Drain Current ID (A) |
Drain-Source On-Resistance RDS(ON) Max @VGS=10V (Ω) |
Drain-Source On-Resistance RDS(ON) Max @VGS=4.5V (Ω) |
Drain-Source On-Resistance RDS(ON) Max @VGS=2.5V (Ω) |
Gate Threshold Voltage VGS(th) Min (V) |
Gate Threshold Voltage VGS(th) Max (V) |
ESD Diodes |
Junction Temperature Tj [max] (°C) |
Single Pulsed Avalanche Energy EAS(mJ) |
Pulsed Drain Current IDM(A) |
Input Capacitance Ciss(pF) |
Output Capacitance Coss(pF) |
Power Rating PD(W) |
Total Gate Charge Qg(nC) |
Gate-Drain Charge Qgd(nC) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MCACL200N04Y | Single | N | 40 | ±20 | 200 | 0.00135 | 0.0021 | 1 | 2.5 | No | 150 | 625 | 800 | 6870 | 1250 | 120 | 112.7 | 21 |
| Part Number MCACL200N04Y | Number of Functions Single | Channel N |
Drain-Source Voltage VDS (V) 40 |
Gate-Source Voltage VGS (V) ±20 |
Drain Current ID (A) 200 |
Drain-Source On-Resistance RDS(ON) Max @VGS=10V (Ω) 0.00135 |
Drain-Source On-Resistance RDS(ON) Max @VGS=4.5V (Ω) 0.0021 |
Drain-Source On-Resistance RDS(ON) Max @VGS=2.5V (Ω) |
Gate Threshold Voltage VGS(th) Min (V) 1 |
Gate Threshold Voltage VGS(th) Max (V) 2.5 |
ESD Diodes No |
Junction Temperature Tj [max] (°C) 150 |
Single Pulsed Avalanche Energy EAS(mJ) 625 |
Pulsed Drain Current IDM(A) 800 |
