Power MOSFETS | Status :
Active

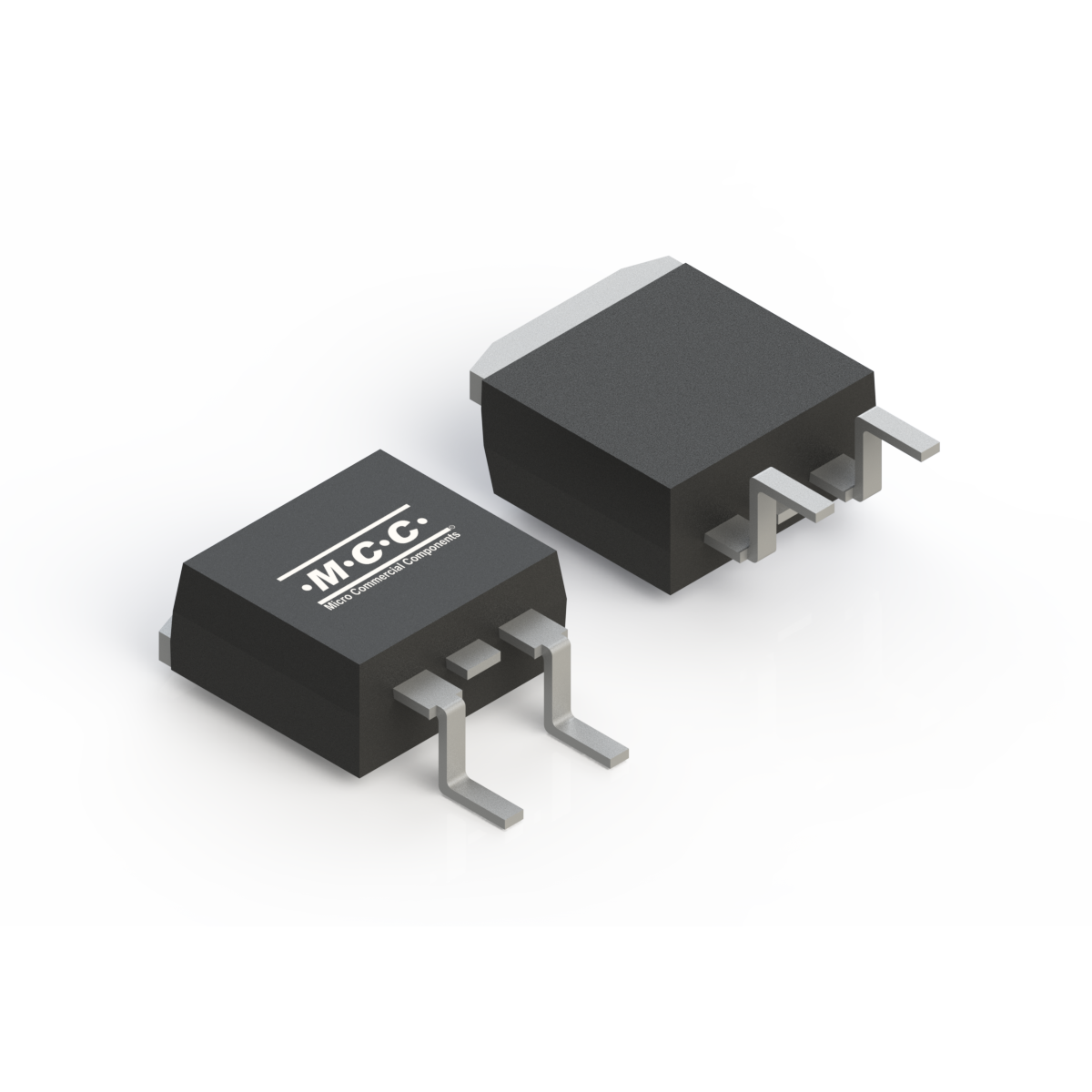

MCB145N06Y
- Package Type:D2-PAK
- Packing Info:Tape&Reel:800pcs/Reel;
- Category:Power MOSFETS
Product Detail
| Part Number | Number of Functions | Channel | Drain-Source Voltage VDS (V) |
Gate-Source Voltage VGS (V) |
Drain Current ID (A) |
Drain-Source On-Resistance RDS(ON) Max @VGS=10V (Ω) |
Drain-Source On-Resistance RDS(ON) Max @VGS=4.5V (Ω) |
Drain-Source On-Resistance RDS(ON) Max @VGS=2.5V (Ω) |
Gate Threshold Voltage VGS(th) Min (V) |
Gate Threshold Voltage VGS(th) Max (V) |
ESD Diodes |
Junction Temperature Tj [max] (°C) |
Single Pulsed Avalanche Energy EAS(mJ) |
Pulsed Drain Current IDM(A) |
Input Capacitance Ciss(pF) |
Output Capacitance Coss(pF) |
Power Rating PD(W) |
Total Gate Charge Qg(nC) |
Gate-Drain Charge Qgd(nC) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MCB145N06Y | Single | N | 60 | ±20 | 145 | 0.0075 | 0.0095 | 1.2 | 2.5 | No | 150 | 144 | 580 | 1913 | 380 | 91 | 32 | 5.9 |
| Part Number MCB145N06Y | Number of Functions Single | Channel N |
Drain-Source Voltage VDS (V) 60 |
Gate-Source Voltage VGS (V) ±20 |
Drain Current ID (A) 145 |
Drain-Source On-Resistance RDS(ON) Max @VGS=10V (Ω) 0.0075 |
Drain-Source On-Resistance RDS(ON) Max @VGS=4.5V (Ω) 0.0095 |
Drain-Source On-Resistance RDS(ON) Max @VGS=2.5V (Ω) |
Gate Threshold Voltage VGS(th) Min (V) 1.2 |
Gate Threshold Voltage VGS(th) Max (V) 2.5 |
ESD Diodes No |
Junction Temperature Tj [max] (°C) 150 |
Single Pulsed Avalanche Energy EAS(mJ) 144 |
Pulsed Drain Current IDM(A) 580 |
Packing Information
Environmental Information
Download
| MSL | Halogen Free |
|---|---|
| 1 |
|
