Power MOSFETS | Status :
Active
Automotive
MCG15P10YHE3

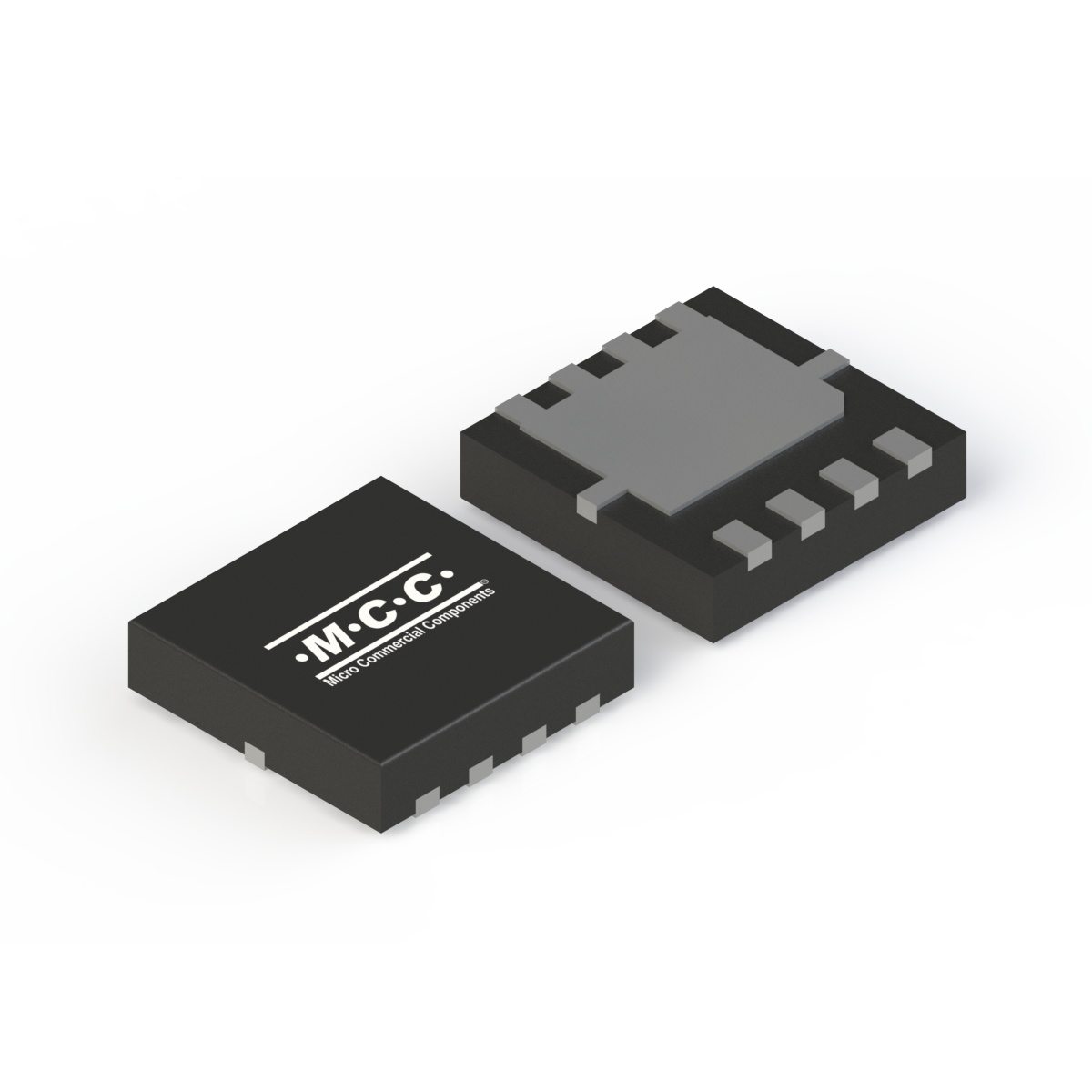

- Package Type:DFN3333
- Packing Info:Tape&Reel:5Kpcs/Reel;
- Category:Power MOSFETS
- MPN:MCG15P10YHE3-TP
Product Detail
| Part Number | Number of Functions | Channel | Drain-Source Voltage VDS (V) |
Gate-Source Voltage VGS (V) |
Drain Current ID (A) |
Drain-Source On-Resistance RDS(ON) Max @VGS=10V (Ω) |
Drain-Source On-Resistance RDS(ON) Max @VGS=4.5V (Ω) |
Drain-Source On-Resistance RDS(ON) Max @VGS=2.5V (Ω) |
Gate Threshold Voltage VGS(th) Min (V) |
Gate Threshold Voltage VGS(th) Max (V) |
ESD Diodes |
Junction Temperature Tj [max] (°C) |
Single Pulsed Avalanche Energy EAS(mJ) |
Pulsed Drain Current IDM(A) |
Input Capacitance Ciss(pF) |
Output Capacitance Coss(pF) |
Power Rating PD(W) |
Total Gate Charge Qg(nC) |
Gate-Drain Charge Qgd(nC) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MCG15P10YHE3 | Single | P | -100 | ±20 | -15 | 0.11 | 0.12 | -1 | -2.5 | No | 150 | 64 | -35 | 1100 | 150 | 50 | 20.1 | 4.38 |
| Part Number MCG15P10YHE3 | Number of Functions Single | Channel P |
Drain-Source Voltage VDS (V) -100 |
Gate-Source Voltage VGS (V) ±20 |
Drain Current ID (A) -15 |
Drain-Source On-Resistance RDS(ON) Max @VGS=10V (Ω) 0.11 |
Drain-Source On-Resistance RDS(ON) Max @VGS=4.5V (Ω) 0.12 |
Drain-Source On-Resistance RDS(ON) Max @VGS=2.5V (Ω) |
Gate Threshold Voltage VGS(th) Min (V) -1 |
Gate Threshold Voltage VGS(th) Max (V) -2.5 |
ESD Diodes No |
Junction Temperature Tj [max] (°C) 150 |
Single Pulsed Avalanche Energy EAS(mJ) 64 |
Pulsed Drain Current IDM(A) -35 |
Packing Information
| Part Number | Package Type | Packing Specification | Component Weight (g) | Marking Code | Packing Info |
|---|---|---|---|---|---|
| MCG15P10YHE3 | DFN3333 | DFN3333 | 0.0280 | MCG15P10Y | Tape&Reel:5Kpcs/Reel; |
Environmental Information
Download
| Tin Whisker Test Report | MSL | Halogen Free |
|---|---|---|
|
3 |
|
