Power MOSFETS | Status : Active

MSJP11N80A

Check Stock Add To Cart
Datasheet ECAD Model

Product Detail

Part Number Number of Functions Channel Drain-Source
Voltage
VDS (V)		 Gate-Source
Voltage
VGS (V)		 Drain
Current
ID (A)		 Drain-Source
On-Resistance
RDS(ON)
Max
@VGS=10V (Ω)		 Drain-Source
On-Resistance
RDS(ON)
Max
@VGS=4.5V (Ω)		 Drain-Source
On-Resistance
RDS(ON)
Max
@VGS=2.5V (Ω)		 Gate
Threshold
Voltage
VGS(th)
Min
(V)		 Gate
Threshold
Voltage
VGS(th) Max
(V)		 ESD
Diodes		 Junction
Temperature
Tj [max]
(°C)		 Single Pulsed
Avalanche
Energy
EAS(mJ)		 Pulsed Drain
Current
IDM(A)		 Input
Capacitance
Ciss(pF)		 Output
Capacitance
Coss(pF)		 Power
Rating
PD(W)		 Total Gate
Charge
Qg(nC)		 Gate-Drain
Charge
Qgd(nC)
MSJP11N80A Single N 800 ±20 11 0.47 2.5 4.5 Yes 150 142 44 918 21 250 24 10
Part Number MSJP11N80A Number of Functions Single Channel N Drain-Source
Voltage
VDS (V)  800 		Gate-Source
Voltage
VGS (V)  ±20 		Drain
Current
ID (A)  11 		Drain-Source
On-Resistance
RDS(ON)
Max
@VGS=10V (Ω)  0.47 		Drain-Source
On-Resistance
RDS(ON)
Max
@VGS=4.5V (Ω)   		Drain-Source
On-Resistance
RDS(ON)
Max
@VGS=2.5V (Ω)   		Gate
Threshold
Voltage
VGS(th)
Min
(V)  2.5 		Gate
Threshold
Voltage
VGS(th) Max
(V)  4.5 		ESD
Diodes  Yes 		Junction
Temperature
Tj [max]
(°C)  150 		Single Pulsed
Avalanche
Energy
EAS(mJ)  142 		Pulsed Drain
Current
IDM(A)  44

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code

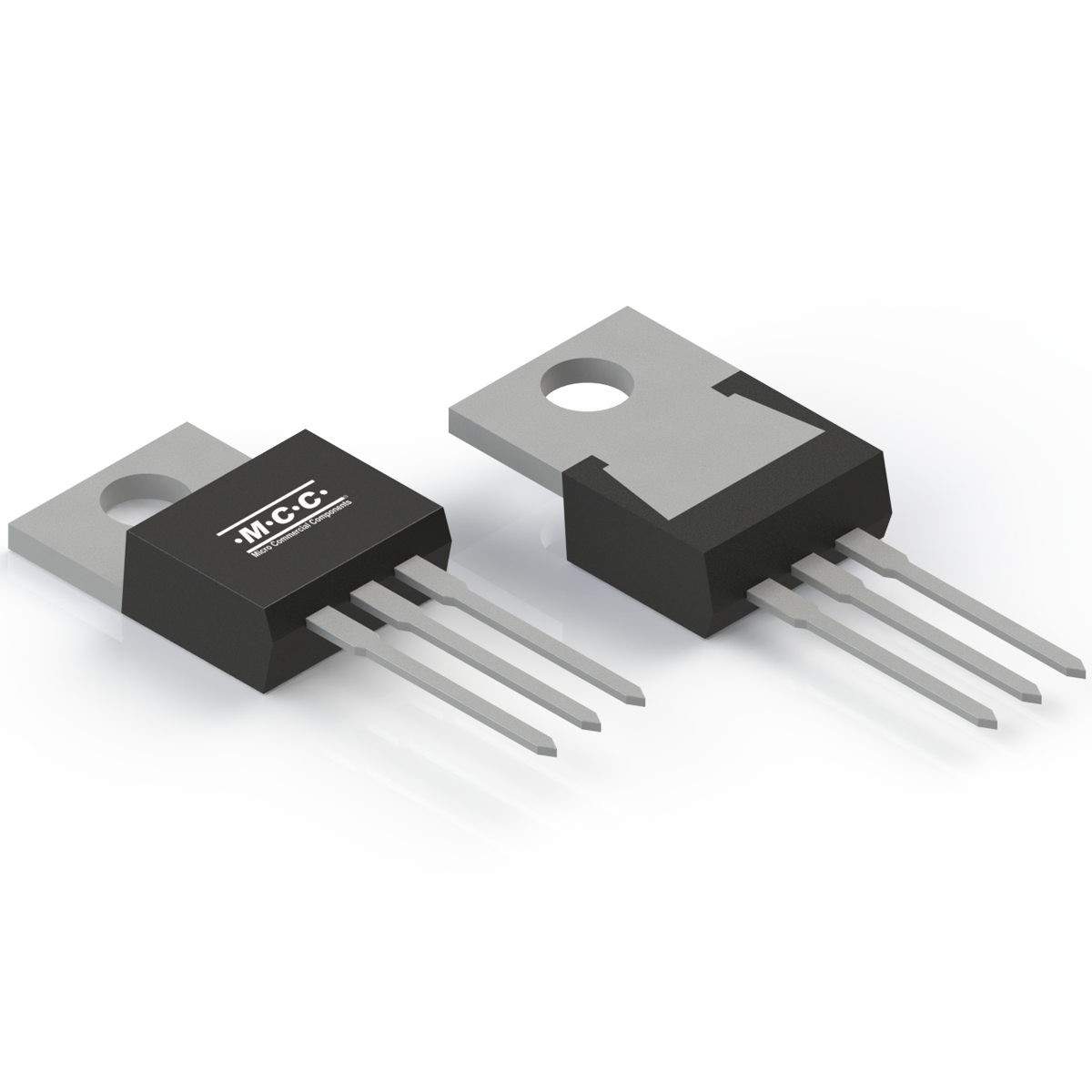

MSJP11N80A TO-220 TO-220 2.2400 MSJP11N80A

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report
Tin Whisker Test Report
