Schottky Barrier Rectifiers | Status : Active
Automotive

SMD110PLQ

Check Stock Add To Cart
Datasheet ECAD Model

Product Detail

Part Number Number of Functions IF(AV)(A) VRWM (V) VF
(V) [max]@IF(A)		 IR (uA)  [max] @
VR		 IFSM (A) VR (V) IF(A) Tj [max]
(°C)
SMD110PLQ Single 1 100 0.77 1 40 100 1 175
Part Number SMD110PLQ Number of Functions Single IF(AV)(A)  1 VRWM (V)  100 VF
(V) [max]@IF(A)  0.77 		IR (uA)  [max] @
VR  1 		IFSM (A)  40 VR (V)  100 IF(A)  1 Tj [max]
(°C)  175

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info

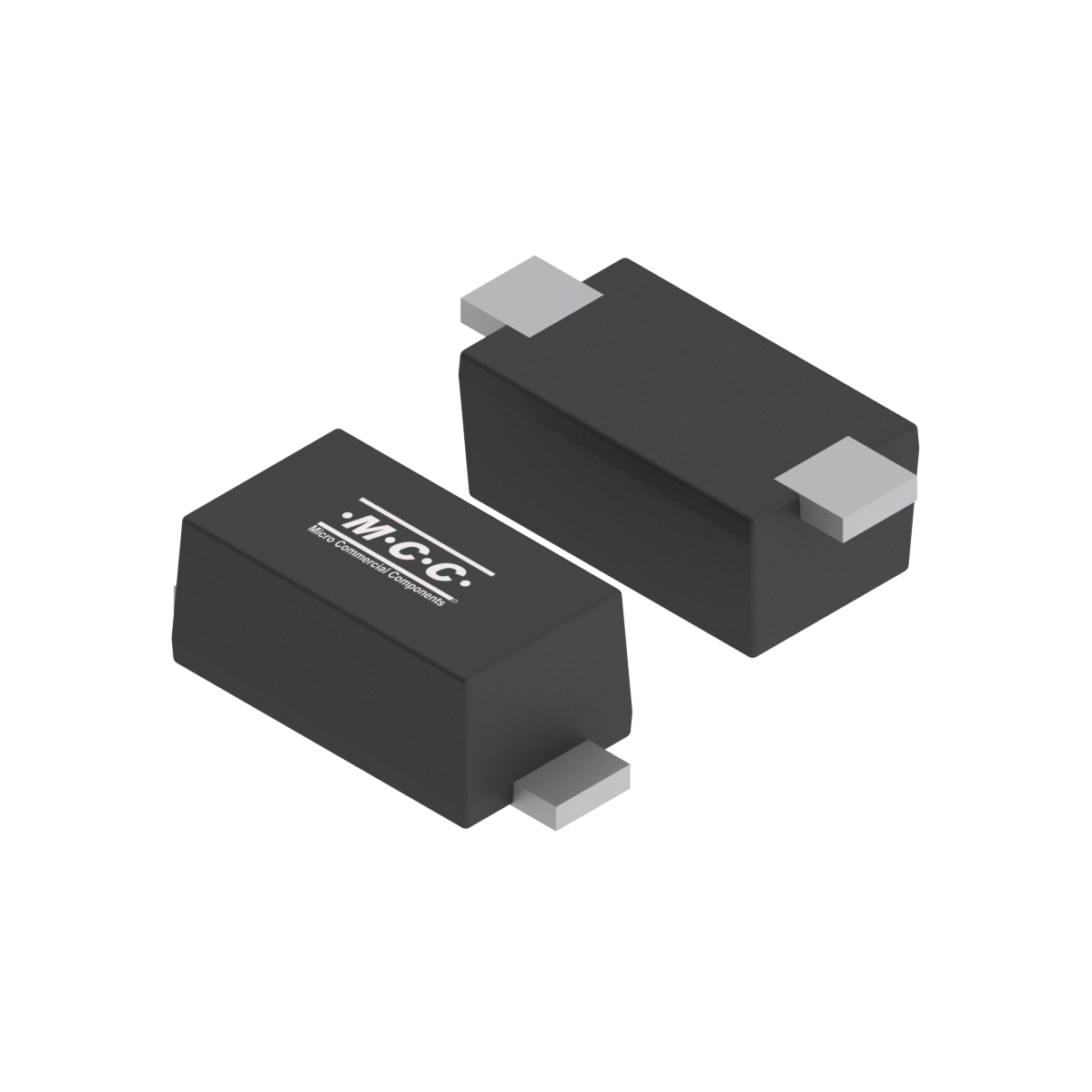

SMD110PLQ SOD-123FL SOD-123FL 0.0180 D10 Tape&Reel: 2.5Kpcs/Reel;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report MSL Halogen Free
Tin Whisker Test Report 1 Halogen Free
