Schottky Barrier Rectifiers | Status :
Active
Automotive

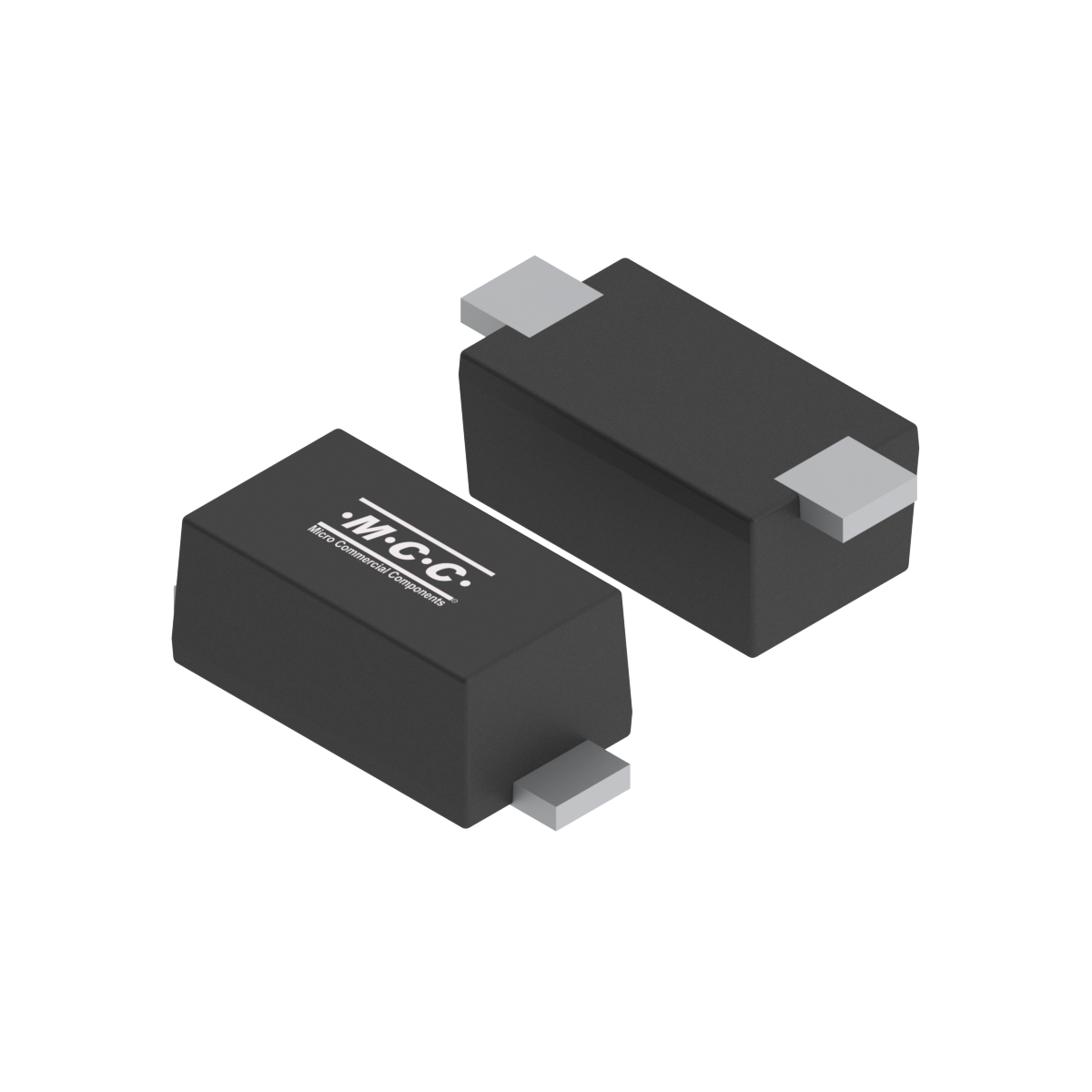

SMD120PLQ
- Package Type:SOD-123FL
- Packing Info:Tape&Reel: 2.5Kpcs/Reel;
- Category:Schottky Barrier Rectifiers
- MPN:SMD120PLQ-TP
Product Detail
| Part Number | Number of Functions | IF(AV)(A) | VRWM (V) | VF (V) [max]@IF(A) |
IR (uA) [max] @ VR |
IFSM (A) | VR (V) | IF(A) | Tj [max] (°C) |
|---|---|---|---|---|---|---|---|---|---|
| SMD120PLQ | Single | 1 | 200 | 0.9 | 1 | 40 | 200 | 1 | 175 |
| Part Number SMD120PLQ | Number of Functions Single | IF(AV)(A) 1 | VRWM (V) 200 |
VF (V) [max]@IF(A) 0.9 |
IR (uA) [max] @ VR 1 |
IFSM (A) 40 | VR (V) 200 | IF(A) 1 |
Tj [max] (°C) 175 |
Packing Information
| Part Number | Package Type | Packing Specification | Component Weight (g) | Marking Code | Packing Info |
|---|---|---|---|---|---|
| SMD120PLQ | SOD-123FL | SOD-123FL | 0.0180 | D20 | Tape&Reel: 2.5Kpcs/Reel; |
Environmental Information
Download
| Tin Whisker Test Report | MSL | Halogen Free |
|---|---|---|
|
1 |
|
