Schottky Barrier Rectifiers | Status : Active
Automotive

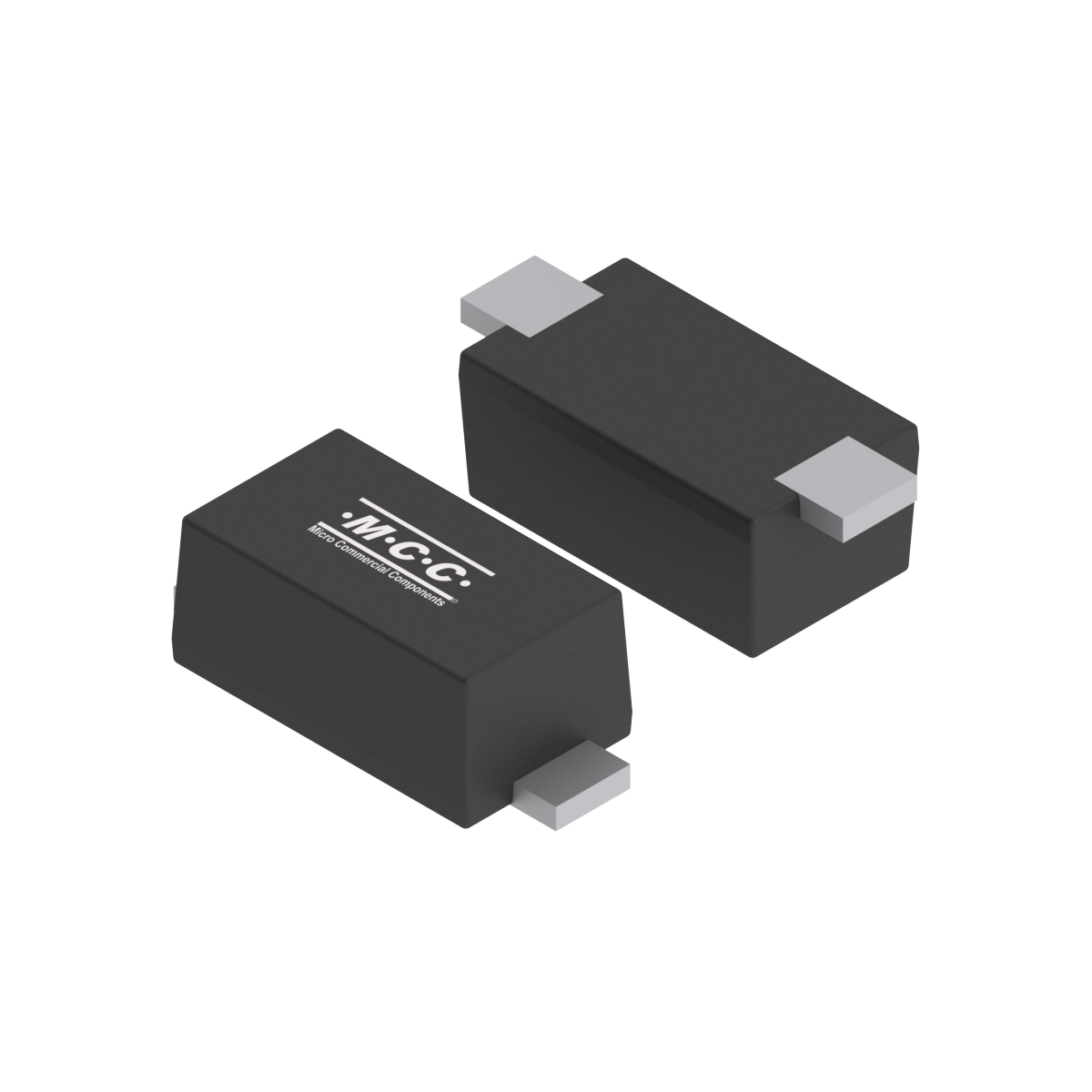

SMD26PLQ

Check Stock Add To Cart
Datasheet ECAD Model

Product Detail

Part Number Number of Functions IF(AV)(A) VRWM (V) VF
(V) [max]@IF(A)		 IR (uA)  [max] @
VR		 IFSM (A) VR (V) IF(A) Tj [max]
(°C)
SMD26PLQ Single 2 60 0.7 100 50 60 2 150
Part Number SMD26PLQ Number of Functions Single IF(AV)(A)  2 VRWM (V)  60 VF
(V) [max]@IF(A)  0.7 		IR (uA)  [max] @
VR  100 		IFSM (A)  50 VR (V)  60 IF(A)  2 Tj [max]
(°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
SMD26PLQ SOD-123FL SOD-123FL 0.0180 M6 Tape&Reel: 2.5Kpcs/Reel;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report MSL Halogen Free
Tin Whisker Test Report 1 Halogen Free
