SIC MOSFETS | Status : Active

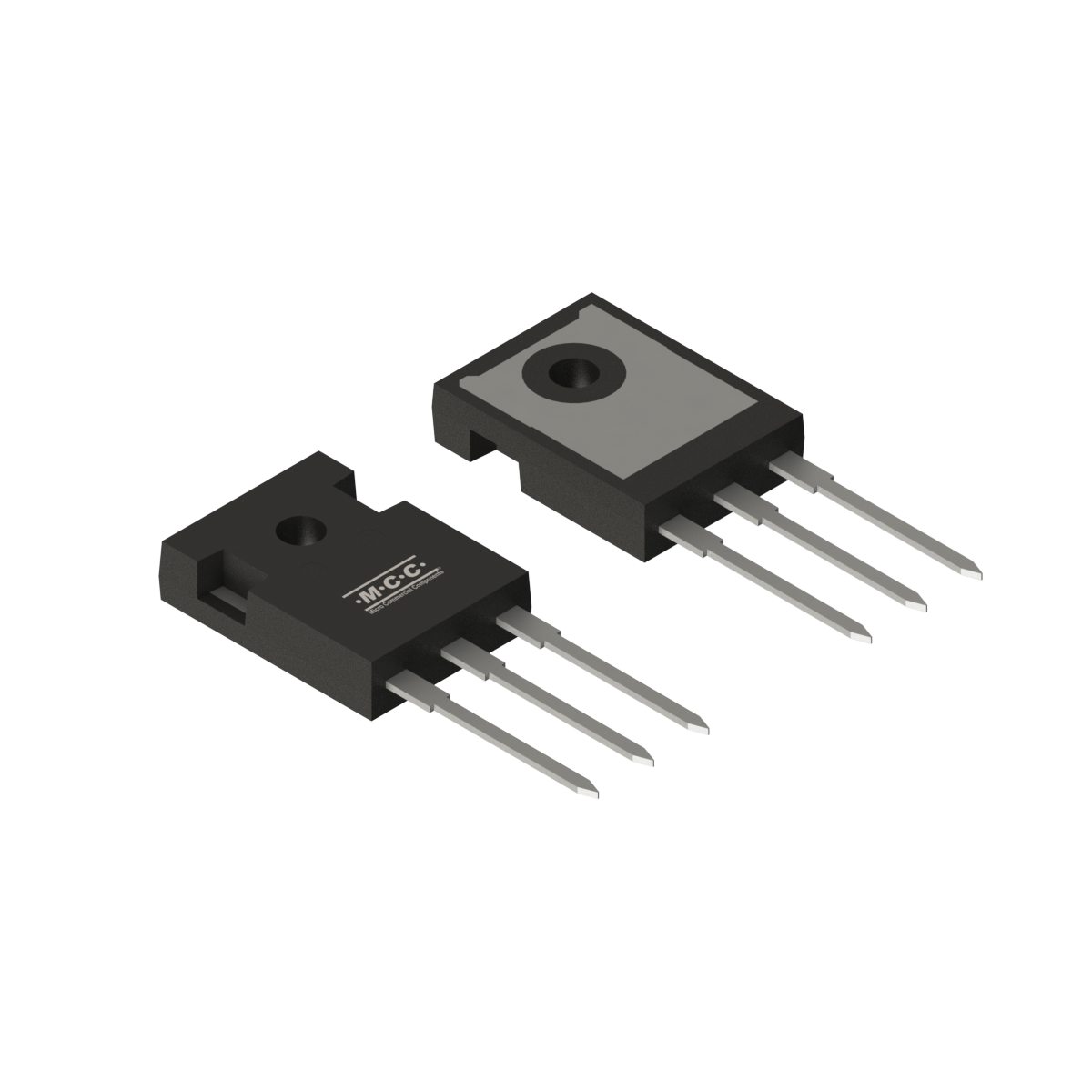

SICW080N120H

  • Package Type:TO-247AB
  • Packing Info:Tube:30pcs/Tube, 1.8K/Ctn;
  • Category:SIC MOSFETS
Check Stock Add To Cart
Datasheet ECAD Model

Product Detail

Part Number Number of Functions Channel Drain-Source
Voltage
VDS (V)		 Gate-Source
Voltage
VGS (V)		 Drain
Current
ID (A)		 Drain-Source
On-Resistance
RDS(ON)
Max
@VGS=18V (Ω)		 Drain-Source
On-Resistance
RDS(ON)
Max
@VGS=15V (Ω)		 Gate
Threshold
Voltage
VGS(th) Min
(V)		 Gate
Threshold
Voltage
VGS(th) Max (V)		 ESD
Diodes		 Junction
Temperature
Tj [max]
(°C)		 Single
Pulsed
Avalanche
Energy
EAS(mJ)		 Pulsed Drain
Current
IDM(A)		 Input
Capacitance
Ciss(pF)		 Power
Rating
PD(W)		 Total Gate
Charge
Qg(nC)
SICW080N120H Single N 1200 -10/+25 33 2 4.5 No 175 81 2644 224 131
Part Number SICW080N120H Number of Functions Single Channel N Drain-Source
Voltage
VDS (V)  1200 		Gate-Source
Voltage
VGS (V)  -10/+25 		Drain
Current
ID (A)  33 		Drain-Source
On-Resistance
RDS(ON)
Max
@VGS=18V (Ω)   		Drain-Source
On-Resistance
RDS(ON)
Max
@VGS=15V (Ω)   		Gate
Threshold
Voltage
VGS(th) Min
(V)  2 		Gate
Threshold
Voltage
VGS(th) Max (V)  4.5 		ESD
Diodes  No 		Junction
Temperature
Tj [max]
(°C)  175 		Single
Pulsed
Avalanche
Energy
EAS(mJ)   		Pulsed Drain
Current
IDM(A)  81

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code
SICW080N120H TO-247AB TO-247AB 5.6000 SICW080N120H

Environmental Information link icon

Reliability Report Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Environmental Compliance Download
MSL
N/A

Similar Recommendations

Part Number Category Package Type Status Datasheet
SICW080N120Y SIC MOSFETS TO-247 Active Datasheet
SICW080N120Y4 SIC MOSFETS TO-247-4 Active Datasheet
SICBG160N120A SIC MOSFETS TO-263-7L Active Datasheet
SICW028N120A4 SIC MOSFETS TO-247-4 Active Datasheet
