ESD Protection Devices | Status :
Active

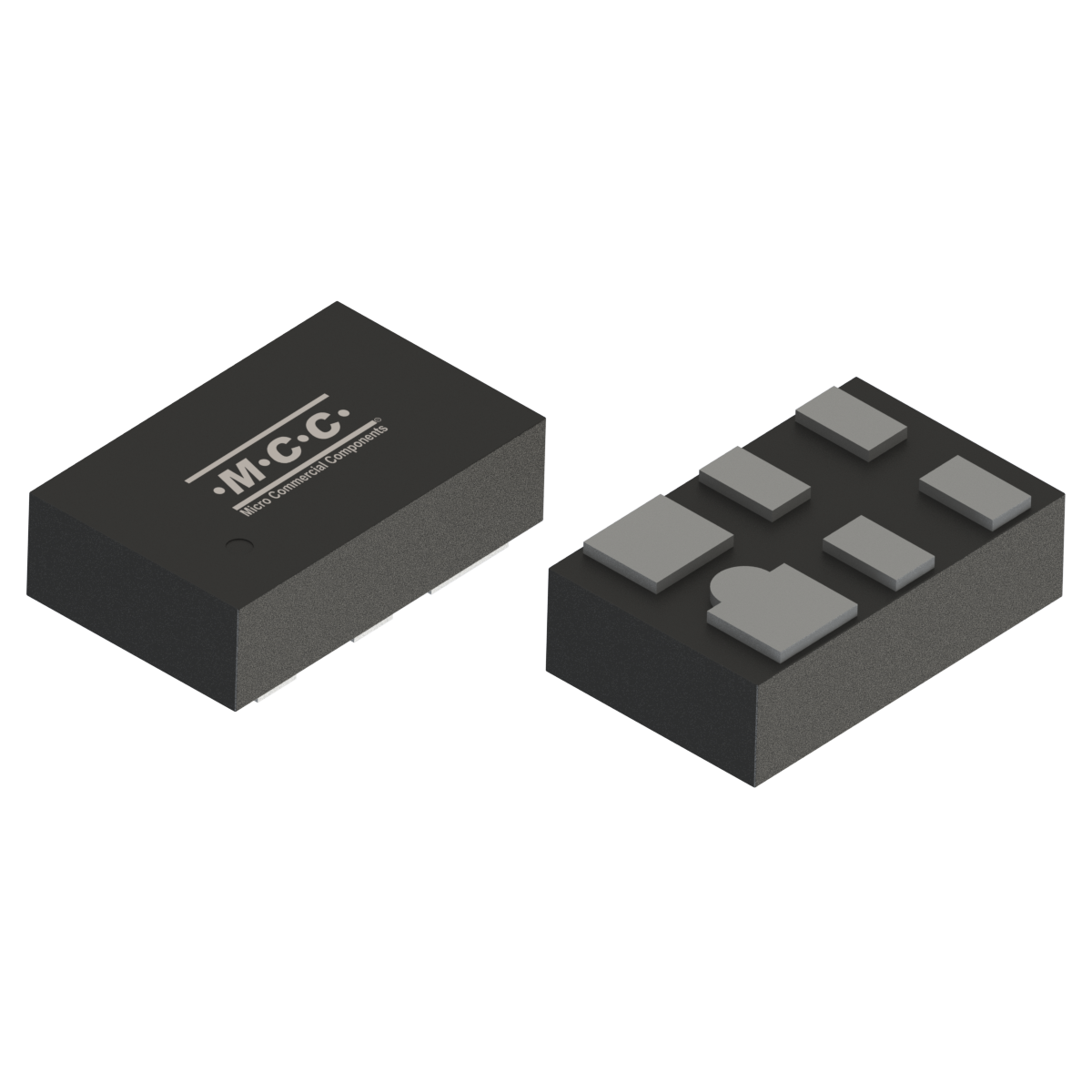

CSPSBULC3V3P6
- Package Type:CSP1610-6
- Packing Info:Tape&Reel: 10Kpcs/Reel;
- Category:ESD Protection Devices
- MPN:CSPSBULC3V3P6-TP
Product Detail
| Part Number | Number of Functions | Configuration | Reverse Standoff Voltage VRWM(V) |
Peak Pulse Current IPP(A) |
Max. Clamping Voltage VC (V) |
Junction Capacitance CJ(pF) |
Peak Pluse Power Dissipation PPPK (W) |
Maximum Reverse Leakage IR (uA) |
Breakdown Voltage Min VBR(V) |
Breakdown Voltage Max VBR(V) |
Junction Temperature Tj [max] (°C) |
VESDIEC61000-4-2 Air/Contact (kV) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CSPSBULC3V3P6 | 2 | Bidirectional | 3.3 | 12 | 16.5 | 0.5 | 200 | 0.05 | 3.8 | 6 | 125 | ±30 |
| Part Number CSPSBULC3V3P6 | Number of Functions 2 | Configuration Bidirectional |
Reverse Standoff Voltage VRWM(V) 3.3 |
Peak Pulse Current IPP(A) 12 |
Max. Clamping Voltage VC (V) 16.5 |
Junction Capacitance CJ(pF) 0.5 |
Peak Pluse Power Dissipation PPPK (W) 200 |
Maximum Reverse Leakage IR (uA) 0.05 |
Breakdown Voltage Min VBR(V) 3.8 |
Breakdown Voltage Max VBR(V) 6 |
Junction Temperature Tj [max] (°C) 125 |
VESDIEC61000-4-2 Air/Contact (kV) ±30 |
Packing Information
| Part Number | Package Type | Packing Specification | Component Weight (g) | Marking Code | Packing Info |
|---|---|---|---|---|---|
| CSPSBULC3V3P6 | CSP1610-6 | CSP1610-6 | 0.0007 | 3382P | Tape&Reel: 10Kpcs/Reel; |
Environmental Information
Download
| MSL |
|---|
| 1 |
