ESD Protection Devices | Status :
Active
ESDULC3V3PRB

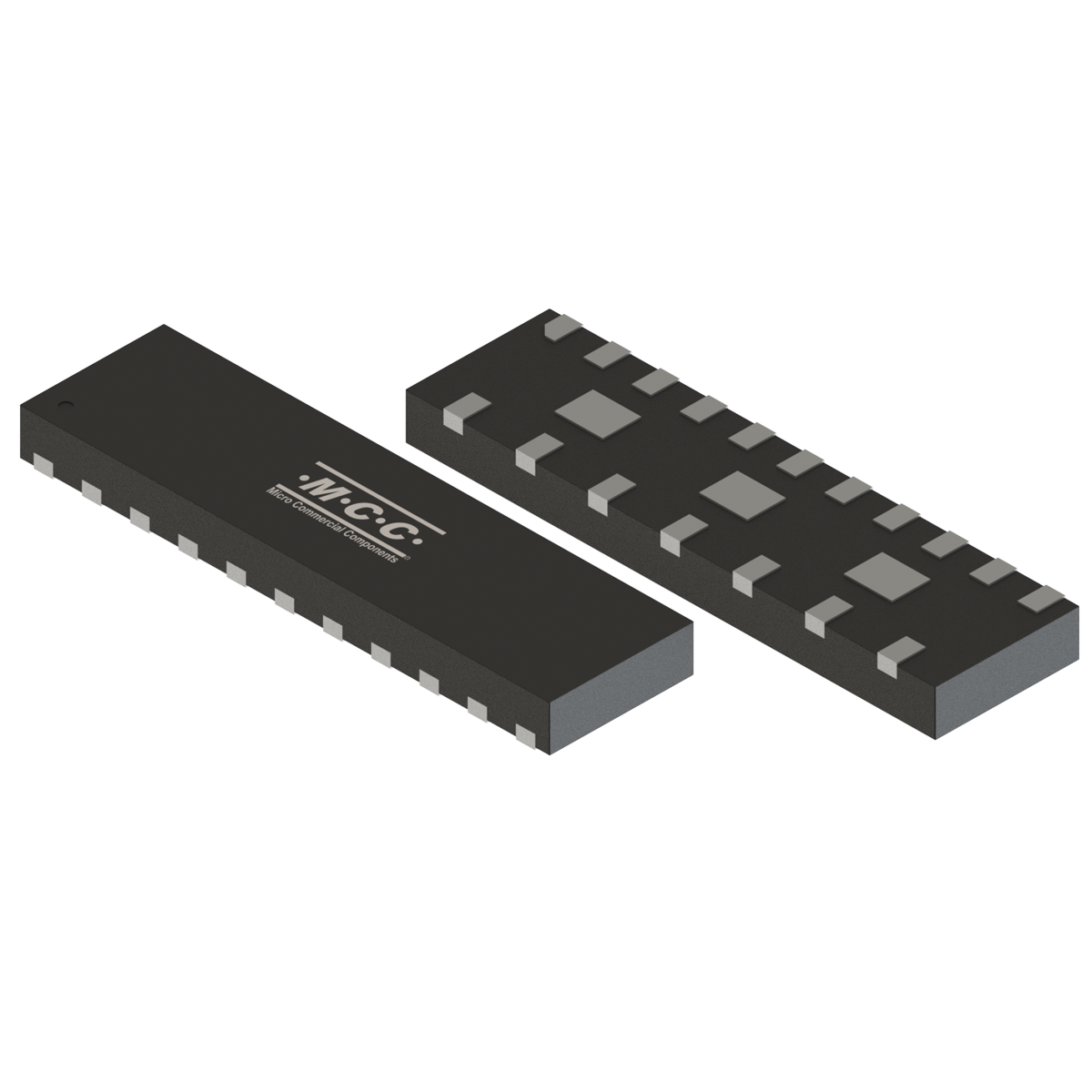

- Package Type:DFN5515-18
- Packing Info:Tape&Reel: 3Kpcs/Reel;
- Category:ESD Protection Devices
- MPN:ESDULC3V3PRB-TP
Product Detail
| Part Number | Number of Functions | Configuration | Reverse Standoff Voltage VRWM(V) |
Peak Pulse Current IPP(A) |
Max. Clamping Voltage VC (V) |
Junction Capacitance CJ(pF) |
Peak Pluse Power Dissipation PPPK (W) |
Maximum Reverse Leakage IR (uA) |
Breakdown Voltage Min VBR(V) |
Breakdown Voltage Max VBR(V) |
Junction Temperature Tj [max] (°C) |
VESDIEC61000-4-2 Air/Contact (kV) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ESDULC3V3PRB | 8 | Unidirectional | 3.3 | 3 | 15 | 0.25 | 45 | 0.2 | 3.5 | 125 | ±20 |
| Part Number ESDULC3V3PRB | Number of Functions 8 | Configuration Unidirectional |
Reverse Standoff Voltage VRWM(V) 3.3 |
Peak Pulse Current IPP(A) 3 |
Max. Clamping Voltage VC (V) 15 |
Junction Capacitance CJ(pF) 0.25 |
Peak Pluse Power Dissipation PPPK (W) 45 |
Maximum Reverse Leakage IR (uA) 0.2 |
Breakdown Voltage Min VBR(V) 3.5 |
Breakdown Voltage Max VBR(V) |
Junction Temperature Tj [max] (°C) 125 |
VESDIEC61000-4-2 Air/Contact (kV) ±20 |
Packing Information
| Part Number | Package Type | Packing Specification | Component Weight (g) | Marking Code | Packing Info |
|---|---|---|---|---|---|
| ESDULC3V3PRB | DFN5515-18 | DFN5515-18 | 0.0118 | 3318P | Tape&Reel: 3Kpcs/Reel; |
Environmental Information
Download
| MSL |
|---|
| 1 |
