Bridge Rectifiers | Status : Active

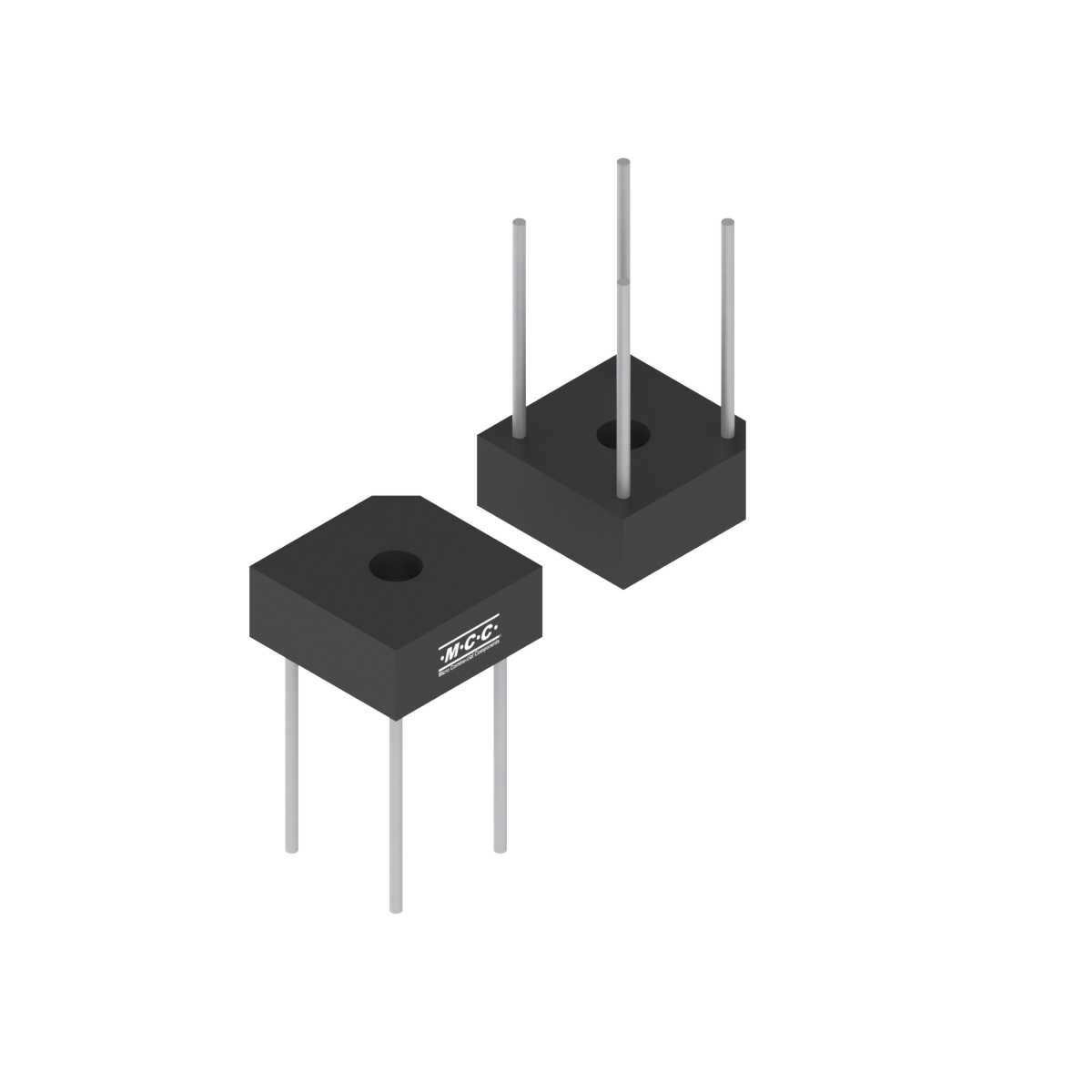

BR1010

  • Package Type:PB-6
  • Packing Info:Bulk : 1.6Kpcs/Carton;
  • Category:Bridge Rectifiers
  • MPN:BR1010-BP
Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions IF(AV)(A) VRWM (V) VF
(V) [max]@IF(A)		 IR (uA)  [max] @
VR		 IFSM (A) IF(A) VR (V) Tj [max] (°C)
BR1010 1-Phase Bridge 10 1000 1.1 10 150 5 1000 150
Part Number BR1010 Number of Functions 1-Phase Bridge IF(AV)(A)  10 VRWM (V)  1000 VF
(V) [max]@IF(A)  1.1 		IR (uA)  [max] @
VR  10 		IFSM (A)  150 IF(A)  5 VR (V)  1000 Tj [max] (°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code
BR1010 PB-6 PB-6 4.0000 BR1010

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report MTBF FIT
Tin Whisker Test Report 27479.27 4.2

ECN/PCN

ECN/PCN No# Title PDF Issued Date
051518-1 MCC will use laser mark instead of ink mark for power bridge rectifiers PDF 05/15/2018
070103 Pb(Lead) Free Plating Conversion PDF 07/01/2003
