Bridge Rectifiers | Status : Active

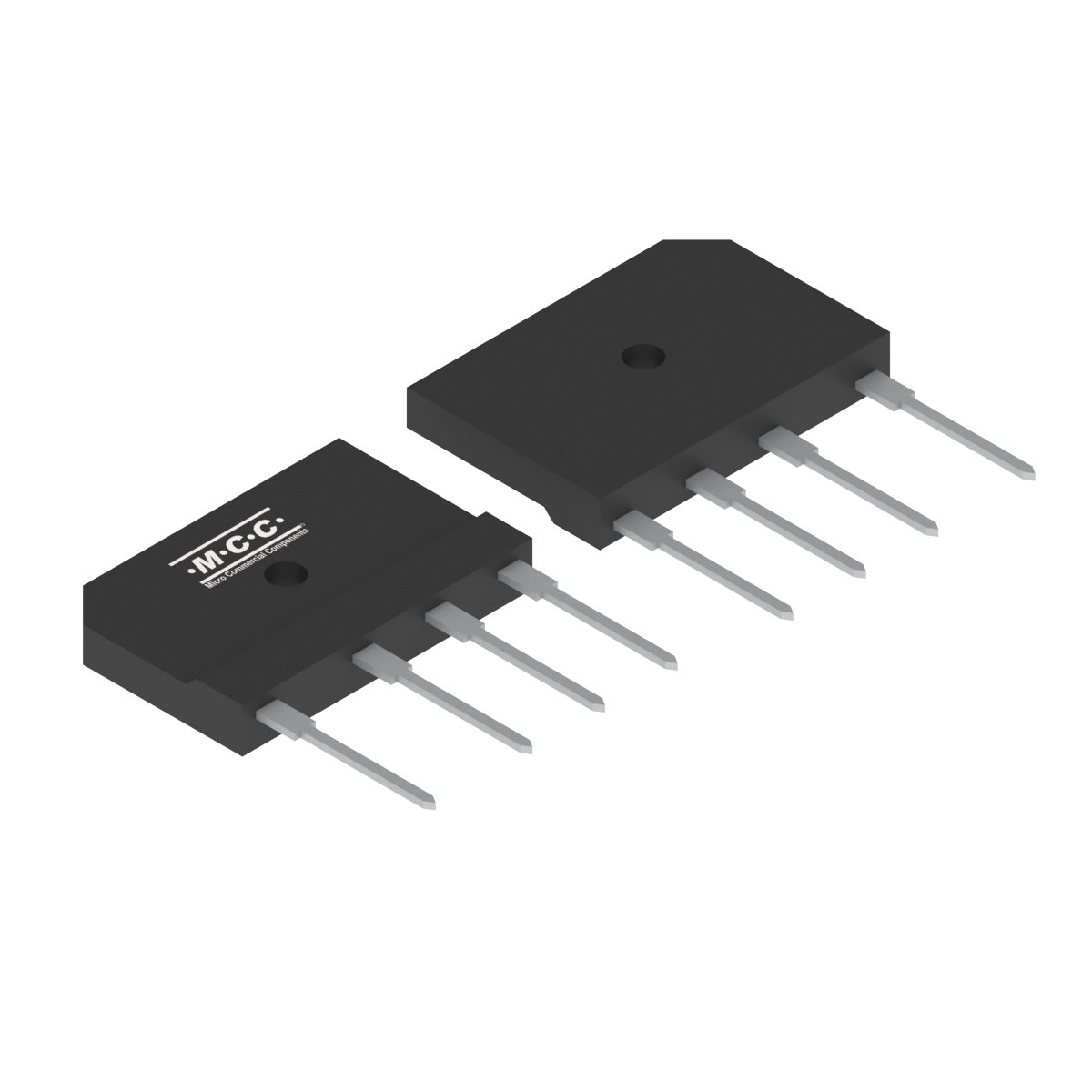

GBJ2008

  • Package Type:GBJ
  • Packing Info:Tube : 15pcs/Tube, 750pcs/Box, 1.5K/Ctn;
  • Category:Bridge Rectifiers
  • MPN:GBJ2008-BP
Check Stock Add To Cart
Datasheet ECAD Model

Product Detail

Part Number Number of Functions IF(AV)(A) VRWM (V) VF
(V) [max]@IF(A)		 IR (uA)  [max] @
VR		 IFSM (A) IF(A) VR (V) Tj [max] (°C)
GBJ2008 1-Phase Bridge 20 800 1.05 10 240 10 800 150
Part Number GBJ2008 Number of Functions 1-Phase Bridge IF(AV)(A)  20 VRWM (V)  800 VF
(V) [max]@IF(A)  1.05 		IR (uA)  [max] @
VR  10 		IFSM (A)  240 IF(A)  10 VR (V)  800 Tj [max] (°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code
GBJ2008 GBJ GBJ 6.8730 GBJ2008

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report
Tin Whisker Test Report

ECN/PCN

ECN/PCN No# Title PDF Issued Date
021110 Bridge Rectifiers Min/Mult Quantity Update PDF 03/01/2010
070103 Pb(Lead) Free Plating Conversion PDF 07/01/2003
