Bridge Rectifiers | Status : Active

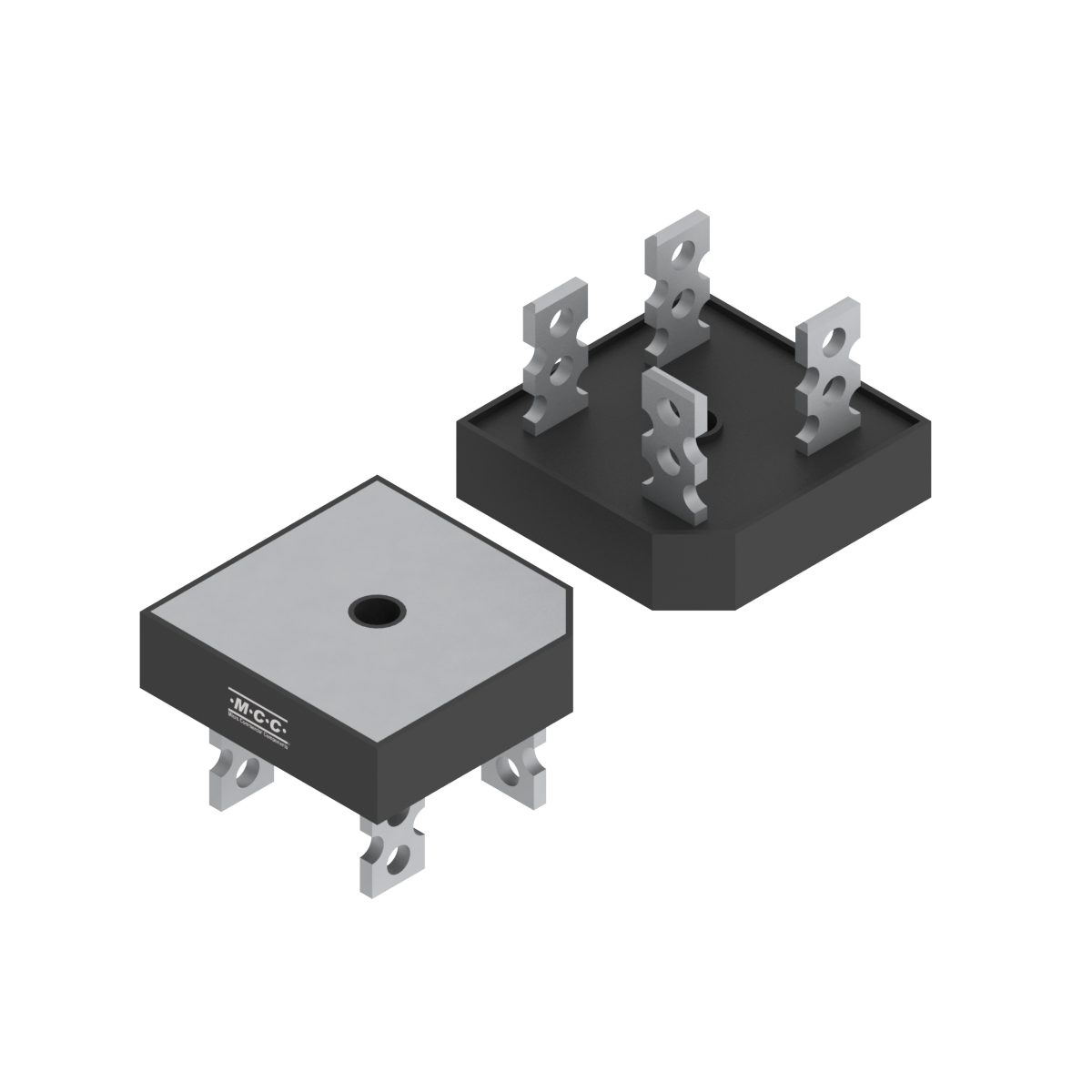

GBPC5004

Check Stock Add To Cart
Datasheet ECAD Model

Product Detail

Part Number Number of Functions IF(AV)(A) VRWM (V) VF
(V) [max]@IF(A)		 IR (uA)  [max] @
VR		 IFSM (A) IF(A) VR (V) Tj [max] (°C)
GBPC5004 1-Phase Bridge 50 400 1.1 5.0 500 25 400 150
Part Number GBPC5004 Number of Functions 1-Phase Bridge IF(AV)(A)  50 VRWM (V)  400 VF
(V) [max]@IF(A)  1.1 		IR (uA)  [max] @
VR  5.0 		IFSM (A)  500 IF(A)  25 VR (V)  400 Tj [max] (°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code
GBPC5004 GBPC GBPC 13.8000 GBPC5004

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download

ECN/PCN

ECN/PCN No# Title PDF Issued Date
051518-1 MCC will use laser mark instead of ink mark for power bridge rectifiers PDF 05/15/2018
070103 Pb(Lead) Free Plating Conversion PDF 07/01/2003
