Bridge Rectifiers | Status :
Active

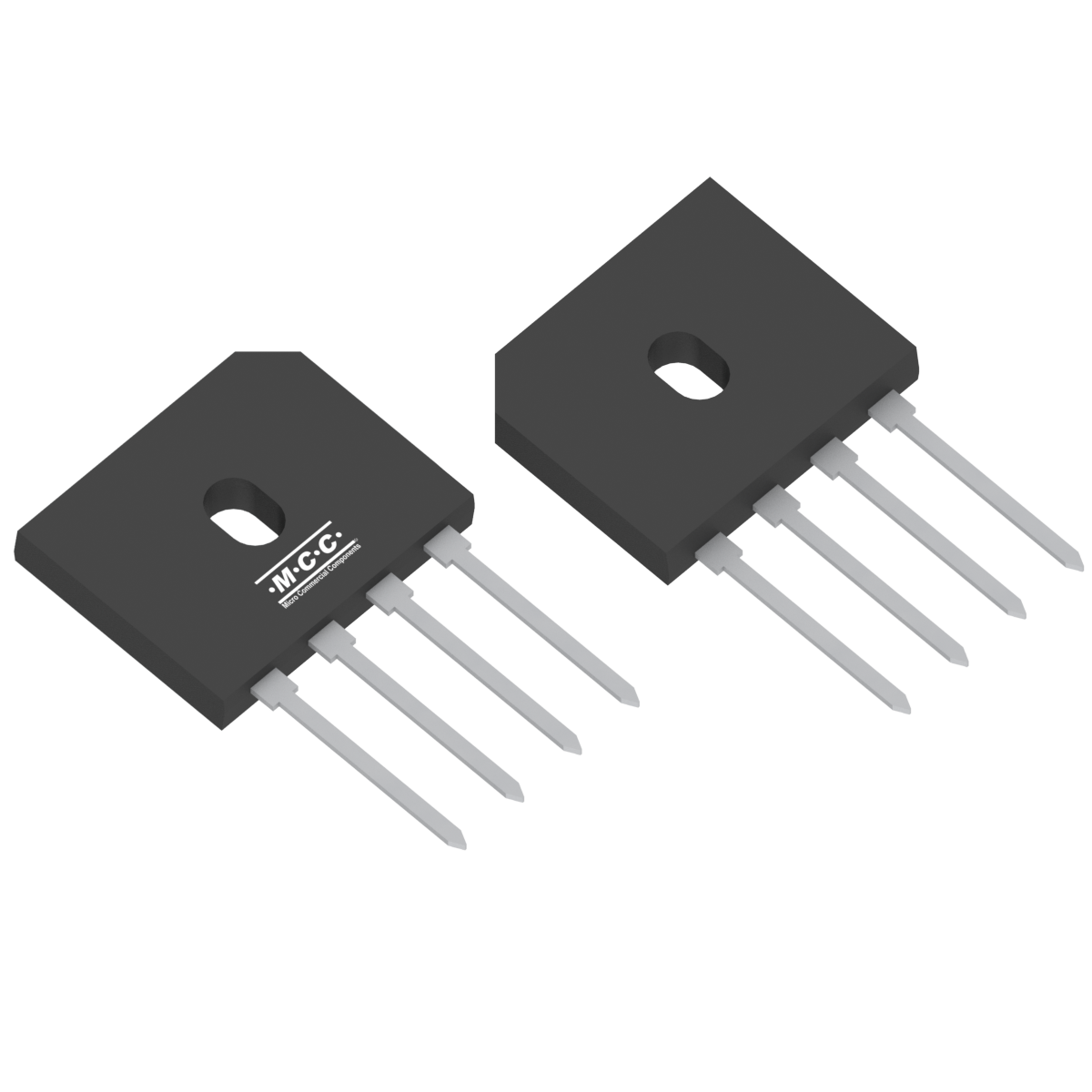

GBU2008
- Package Type:GBU
- Packing Info:Tube:20pcs/Tube, 1K/Box, 2K/Ctn;
- Category:Bridge Rectifiers
Product Detail
| Part Number | Number of Functions | IF(AV)(A) | VRWM (V) | VF (V) [max]@IF(A) |
IR (uA) [max] @ VR |
IFSM (A) | IF(A) | VR (V) | Tj [max] (°C) |
|---|---|---|---|---|---|---|---|---|---|
| GBU2008 | 1-Phase Bridge | 20 | 800 | 1.1 | 5 | 240 | 10 | 800 | 150 |
| Part Number GBU2008 | Number of Functions 1-Phase Bridge | IF(AV)(A) 20 | VRWM (V) 800 |
VF (V) [max]@IF(A) 1.1 |
IR (uA) [max] @ VR 5 |
IFSM (A) 240 | IF(A) 10 | VR (V) 800 | Tj [max] (°C) 150 |
Packing Information
Environmental Information
Download
| Tin Whisker Test Report |
|---|
|
