Bridge Rectifiers | Status : Active

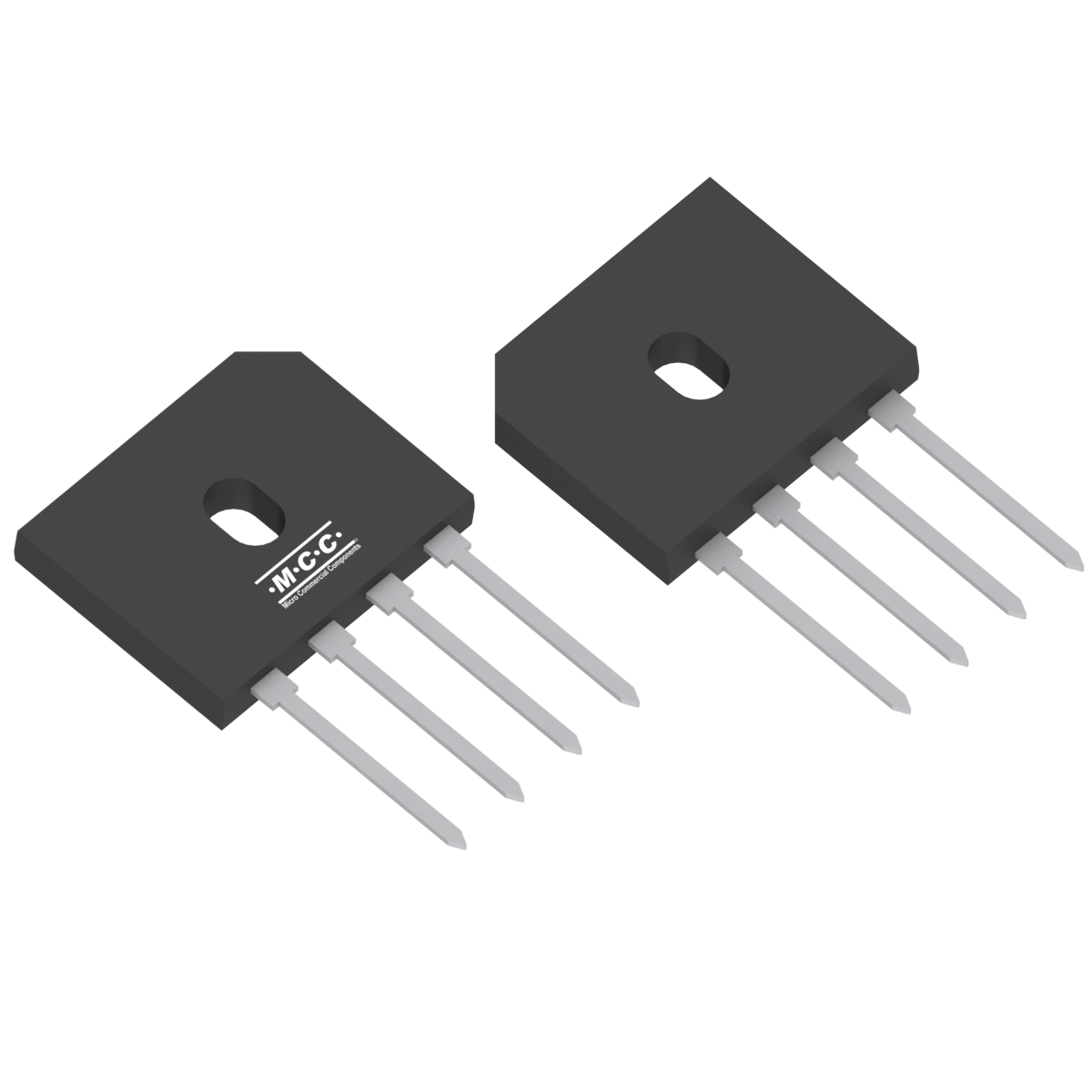

GBU3510

  • Package Type:GBU
  • Packing Info:Tube:20pcs/Tube, 1K/Box, 2K/Ctn;
  • Category:Bridge Rectifiers
Check Stock Add To Cart
Datasheet ECAD Model

Product Detail

Part Number Number of Functions IF(AV)(A) VRWM (V) VF
(V) [max]@IF(A)		 IR (uA)  [max] @
VR		 IFSM (A) IF(A) VR (V) Tj [max] (°C)
GBU3510 1-Phase Bridge 35 1000 1.05 5 450 17.5 1000 150
Part Number GBU3510 Number of Functions 1-Phase Bridge IF(AV)(A)  35 VRWM (V)  1000 VF
(V) [max]@IF(A)  1.05 		IR (uA)  [max] @
VR  5 		IFSM (A)  450 IF(A)  17.5 VR (V)  1000 Tj [max] (°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code
GBU3510 GBU GBU 4.0280 GBU3510

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report
Tin Whisker Test Report
