Bridge Rectifiers | Status : Active

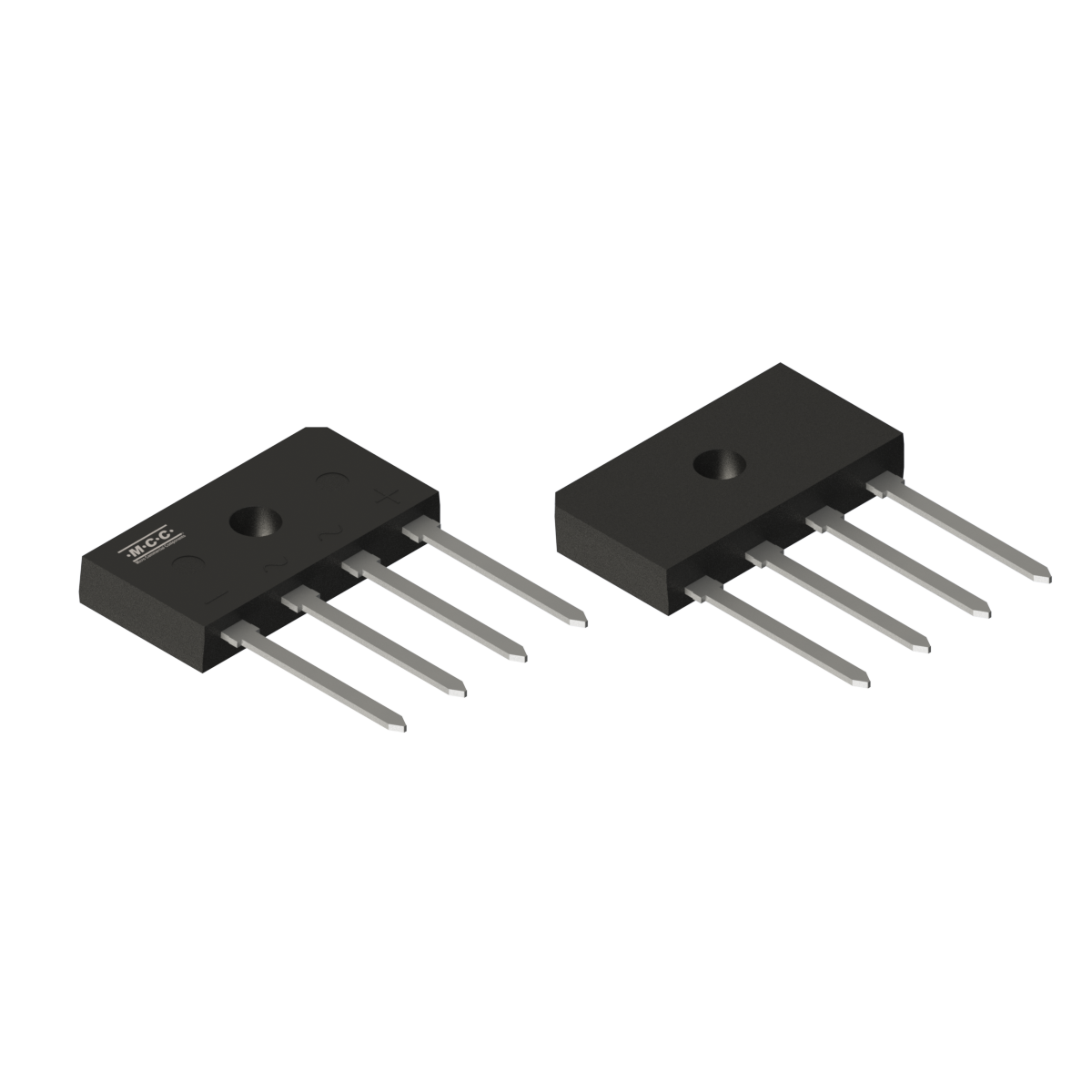

GBUA10M

  • Package Type:JC
  • Packing Info:Bulk:25pcs/Tube,625pcs/Box,5000pcs/Carton; Bulk:25pcs/Tube,625pcs/Box,5000pcs/Carton;
  • Category:Bridge Rectifiers
Check Stock Add To Cart
Datasheet ECAD Model

Product Detail

Part Number Number of Functions IF(AV)(A) VRWM (V) VF
(V) [max]@IF(A)		 IR (uA)  [max] @
VR		 IFSM (A) IF(A) VR (V) Tj [max] (°C)
GBUA10M 1-Phase Bridge 10 1000 1 5 175 5 1000 150
Part Number GBUA10M Number of Functions 1-Phase Bridge IF(AV)(A)  10 VRWM (V)  1000 VF
(V) [max]@IF(A)  1 		IR (uA)  [max] @
VR  5 		IFSM (A)  175 IF(A)  5 VR (V)  1000 Tj [max] (°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code
GBUA10M Package Type Image JC JC 2.5467 GBUA10M

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Halogen Free
Halogen Free
