Bridge Rectifiers | Status : Active

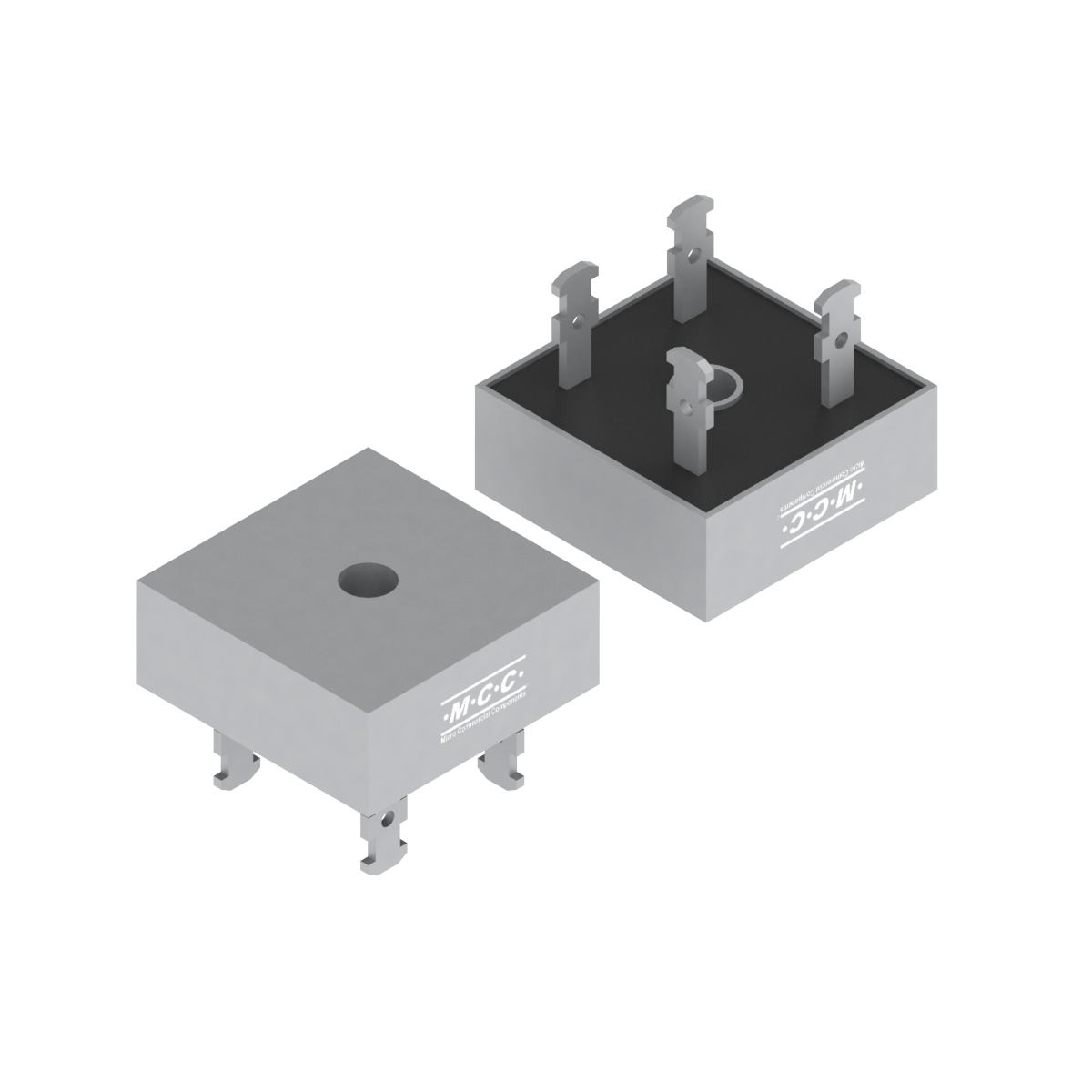

MB356

  • Package Type:MB-35
  • Packing Info:Bulk: 50pcs/Box, 400Pcs/Ctn .;
  • Category:Bridge Rectifiers
  • MPN:MB356-BP
Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions IF(AV)(A) VRWM (V) VF
(V) [max]@IF(A)		 IR (uA)  [max] @
VR		 IFSM (A) IF(A) VR (V) Tj [max] (°C)
MB356 1-Phase Bridge 35 600 1.1 10 400 17.5 600 125
Part Number MB356 Number of Functions 1-Phase Bridge IF(AV)(A)  35 VRWM (V)  600 VF
(V) [max]@IF(A)  1.1 		IR (uA)  [max] @
VR  10 		IFSM (A)  400 IF(A)  17.5 VR (V)  600 Tj [max] (°C)  125

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code
MB356 MB-35 MB-35 24.0000 MB356

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
MTBF FIT
6729.17 17.0

ECN/PCN

ECN/PCN No# Title PDF Issued Date
021110 Bridge Rectifiers Min/Mult Quantity Update PDF 03/01/2010
070103 Pb(Lead) Free Plating Conversion PDF 07/01/2003
