Bridge Rectifiers | Status : Active

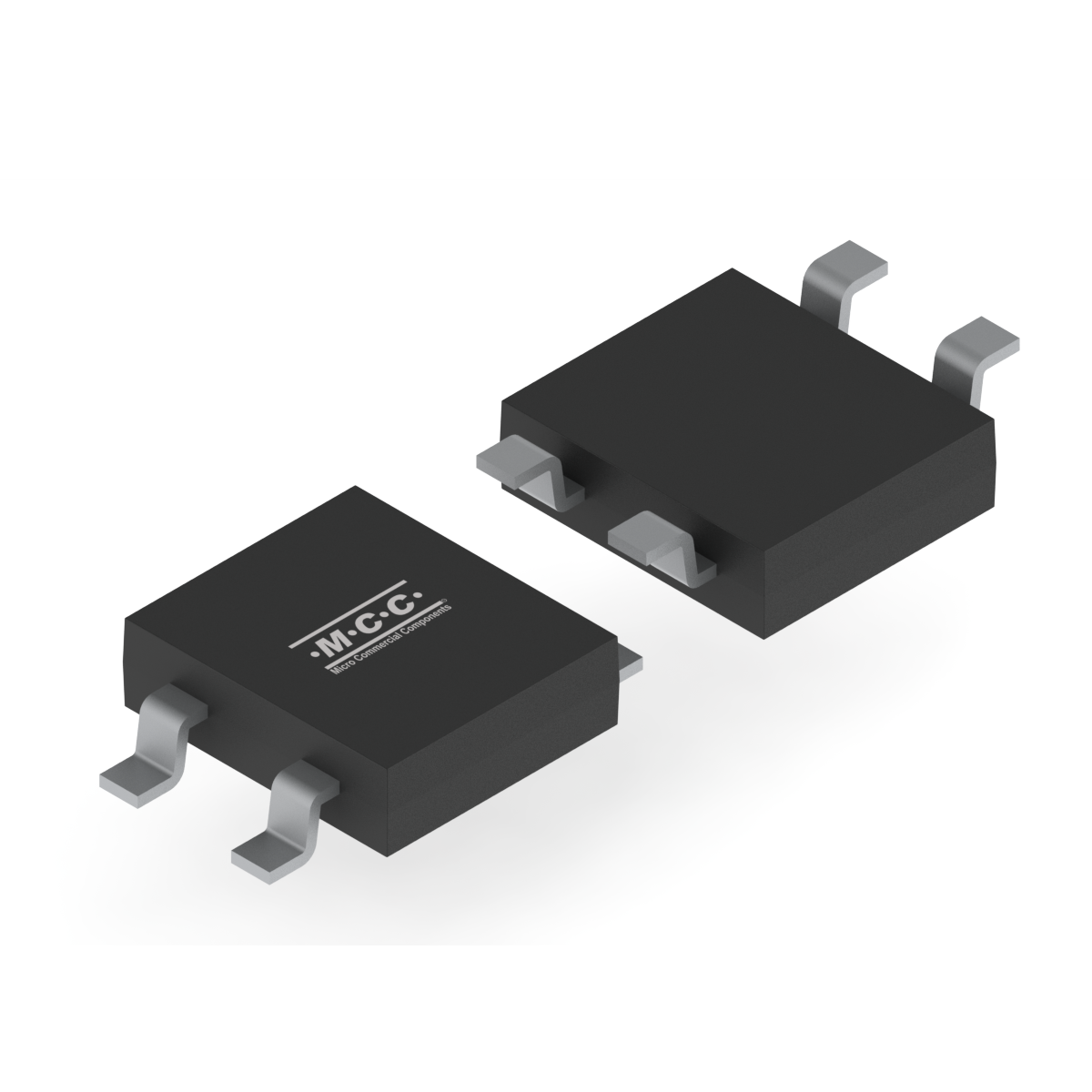

MBL10S

  • Package Type:MBLS-1
  • Packing Info: Tape&Reel: 4Kpcs/Reel;
  • Category:Bridge Rectifiers
Check Stock Add To Cart
Datasheet ECAD Model

Product Detail

Part Number Number of Functions IF(AV)(A) VRWM (V) VF
(V) [max]@IF(A)		 IR (uA)  [max] @
VR		 IFSM (A) IF(A) VR (V) Tj [max] (°C)
MBL10S 1-Phase Bridge 0.5 1000 1.0 5.0 35 0.4 1000 150
Part Number MBL10S Number of Functions 1-Phase Bridge IF(AV)(A)  0.5 VRWM (V)  1000 VF
(V) [max]@IF(A)  1.0 		IR (uA)  [max] @
VR  5.0 		IFSM (A)  35 IF(A)  0.4 VR (V)  1000 Tj [max] (°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
MBL10S MBLS-1 MBLS-1 0.0850 BL10S Tape&Reel: 4Kpcs/Reel;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report
Tin Whisker Test Report
