Bridge Rectifiers | Status : Active

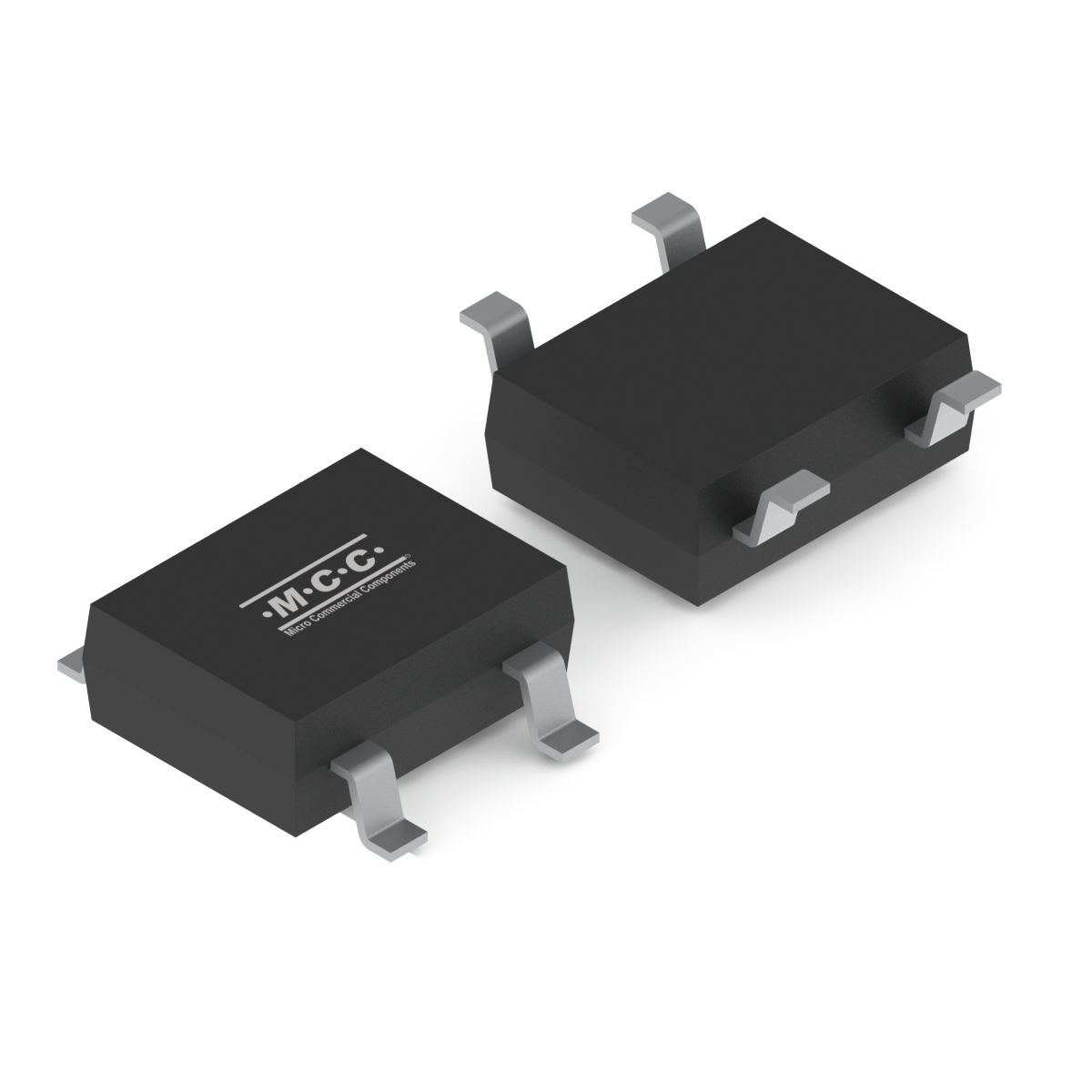

SDB105

  • Package Type:SDB-1
  • Packing Info: Tape: 1.5K/Reel , 21K/Ctn;
  • Category:Bridge Rectifiers
Check Stock Add To Cart
Datasheet ECAD Model

Product Detail

Part Number Number of Functions IF VRWM VF IR TRR
SDB105 1-Phase Bridge 1.0 600 1.1 10
IF (A) VRWM (V) VF (V) IR (µA) TRR (µs)
Part Number SDB105 Number of Functions 1-Phase Bridge IF  1.0 VRWM  600 VF  1.1 IR  10 TRR

Package

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
SDB105 Package Type Image SDB-1 SDB-1 0.3470 SDB105 Tape: 1.5K/Reel , 21K/Ctn;

Reliability & Chemical Content link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report Halogen Free
Tin Whisker Test Report Halogen Free

ECN/PCN

ECN/PCN No# Title PDF Issued Date
080115-2 MCC Introduces Auto-Soldering Process For DB-1&SDB-1 Package PDF 08/01/2015
070103 Pb(Lead) Free Plating Conversion PDF 07/01/2003
