Schottky Barrier Rectifiers | Status : Active

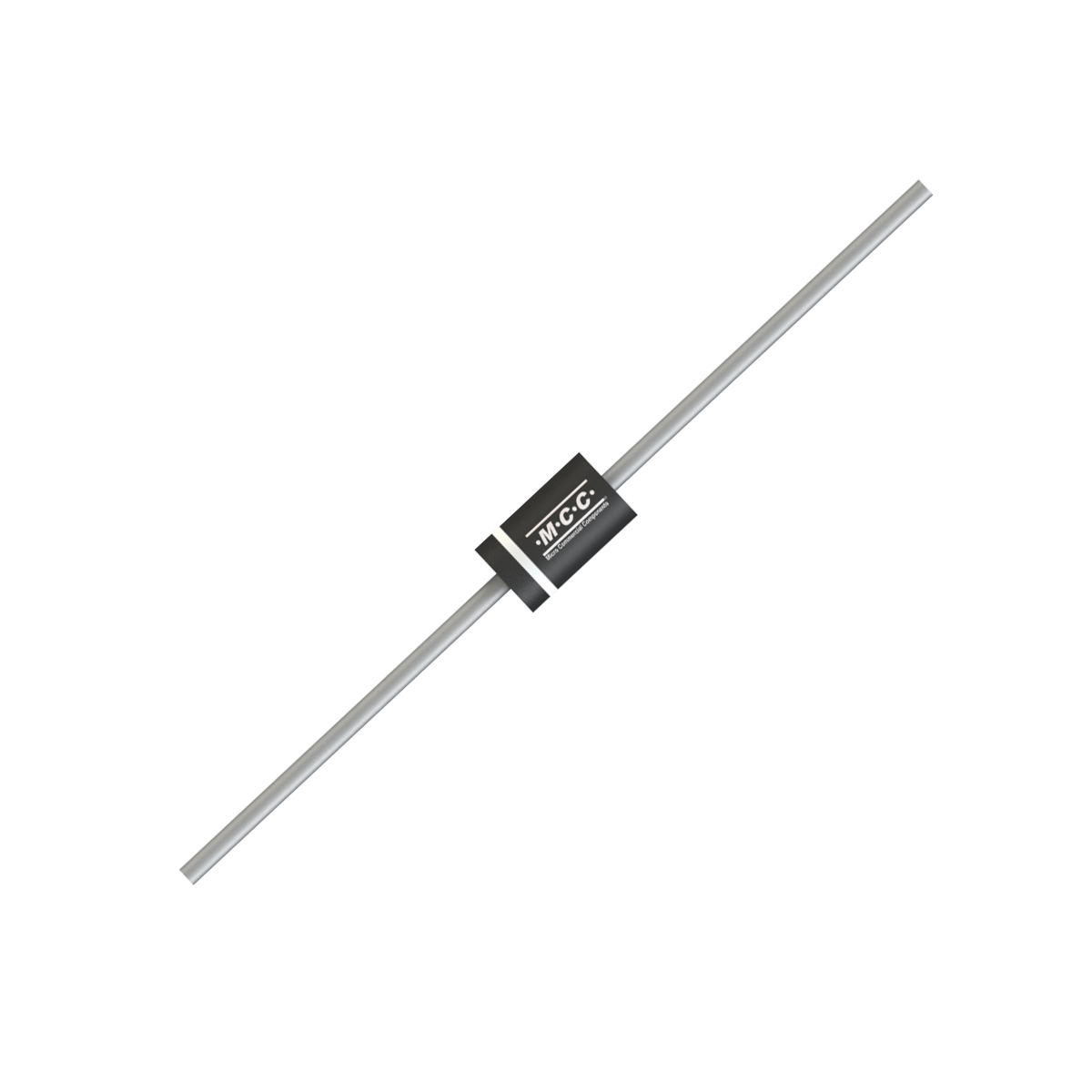

1N5822

  • Package Type:DO-201AD
  • Packing Info:Tape : 1.2K/Reel, 4.8K/Ctn; Bulk: 500pcs/Box, 12K/Ctn; T/B: 1.2K/Ammo Box, 12K/Ctn.;
  • Category:Schottky Barrier Rectifiers
Check Stock Add To Cart
Datasheet ECAD Model

Product Detail

Part Number Number of Functions IF(AV)(A) VRWM (V) VF
(V) [max]@IF(A)		 IR (uA)  [max] @
VR		 IFSM (A) VR (V) IF(A) Tj [max]
(°C)
1N5822 Single 3 40 0.525 100 80 40 3 125
Part Number 1N5822 Number of Functions Single IF(AV)(A)  3 VRWM (V)  40 VF
(V) [max]@IF(A)  0.525 		IR (uA)  [max] @
VR  100 		IFSM (A)  80 VR (V)  40 IF(A)  3 Tj [max]
(°C)  125

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
1N5822 DO-201AD DO-201AD 1.1410 1N5822 Tape : 1.2K/Reel, 4.8K/Ctn;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report MSL
Tin Whisker Test Report N/A

ECN/PCN

ECN/PCN No# Title PDF Issued Date
070103 Pb(Lead) Free Plating Conversion PDF 07/01/2003
