Schottky Barrier Rectifiers | Status : Active

MBR1080F

Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions IF(AV)(A) VRWM (V) VF
(V) [max]@IF(A)		 IR (uA)  [max] @
VR		 IFSM (A) VR (V) IF(A) Tj [max]
(°C)
MBR1080F Single 10 80 0.85 100 150 80 10 150
Part Number MBR1080F Number of Functions Single IF(AV)(A)  10 VRWM (V)  80 VF
(V) [max]@IF(A)  0.85 		IR (uA)  [max] @
VR  100 		IFSM (A)  150 VR (V)  80 IF(A)  10 Tj [max]
(°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code

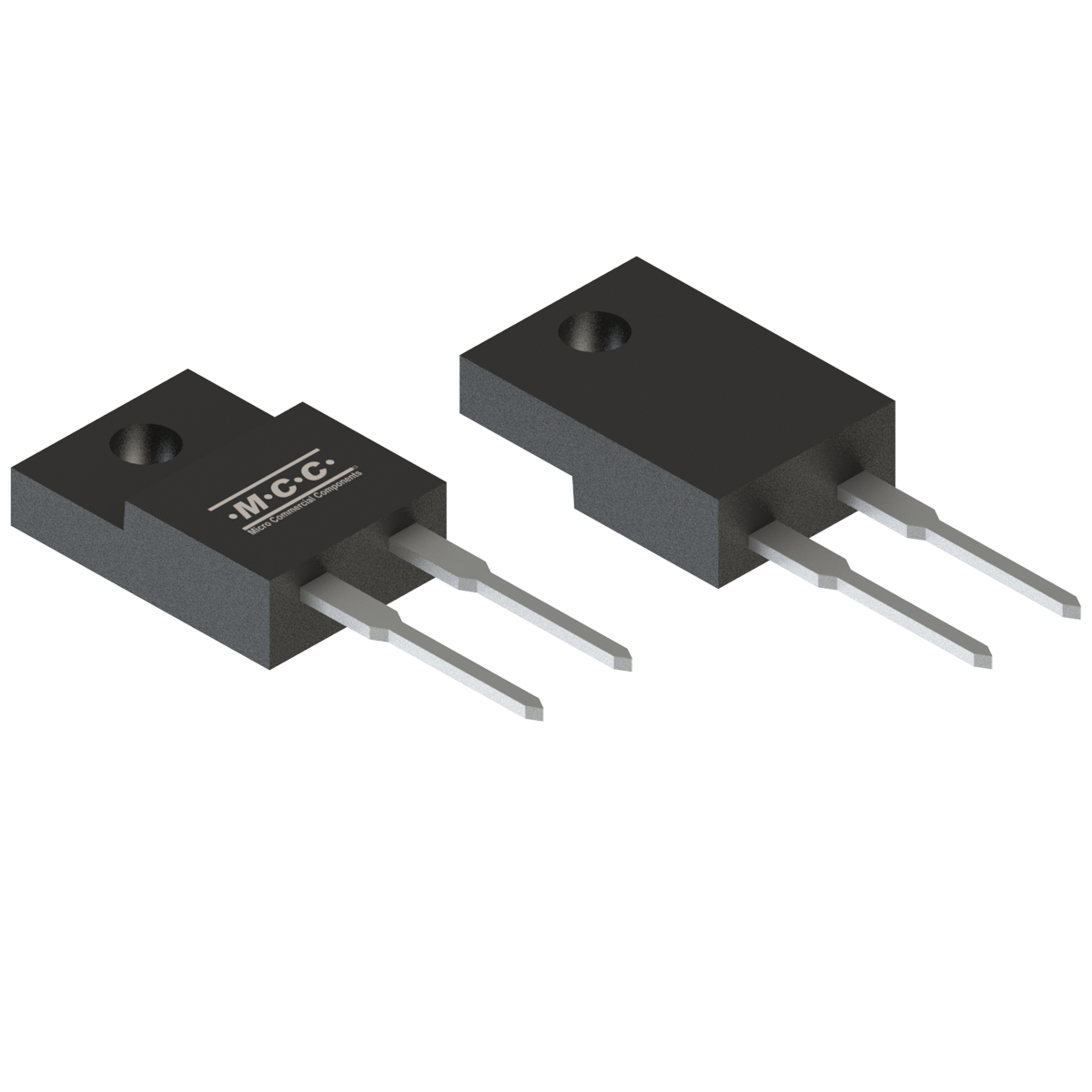

MBR1080F ITO-220AC ITO-220AC 1.3930 MBR1080F

Environmental Information link icon

Reliability Report Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report MSL MTBF FIT
Tin Whisker Test Report N/A 27479.27 4.2

ECN/PCN

ECN/PCN No# Title PDF Issued Date
080622-1 ITO-220 Series Package Pin Dimension Change PDF 08/06/2022
070103 Pb(Lead) Free Plating Conversion PDF 07/01/2003
