Schottky Barrier Rectifiers | Status : Active
Automotive

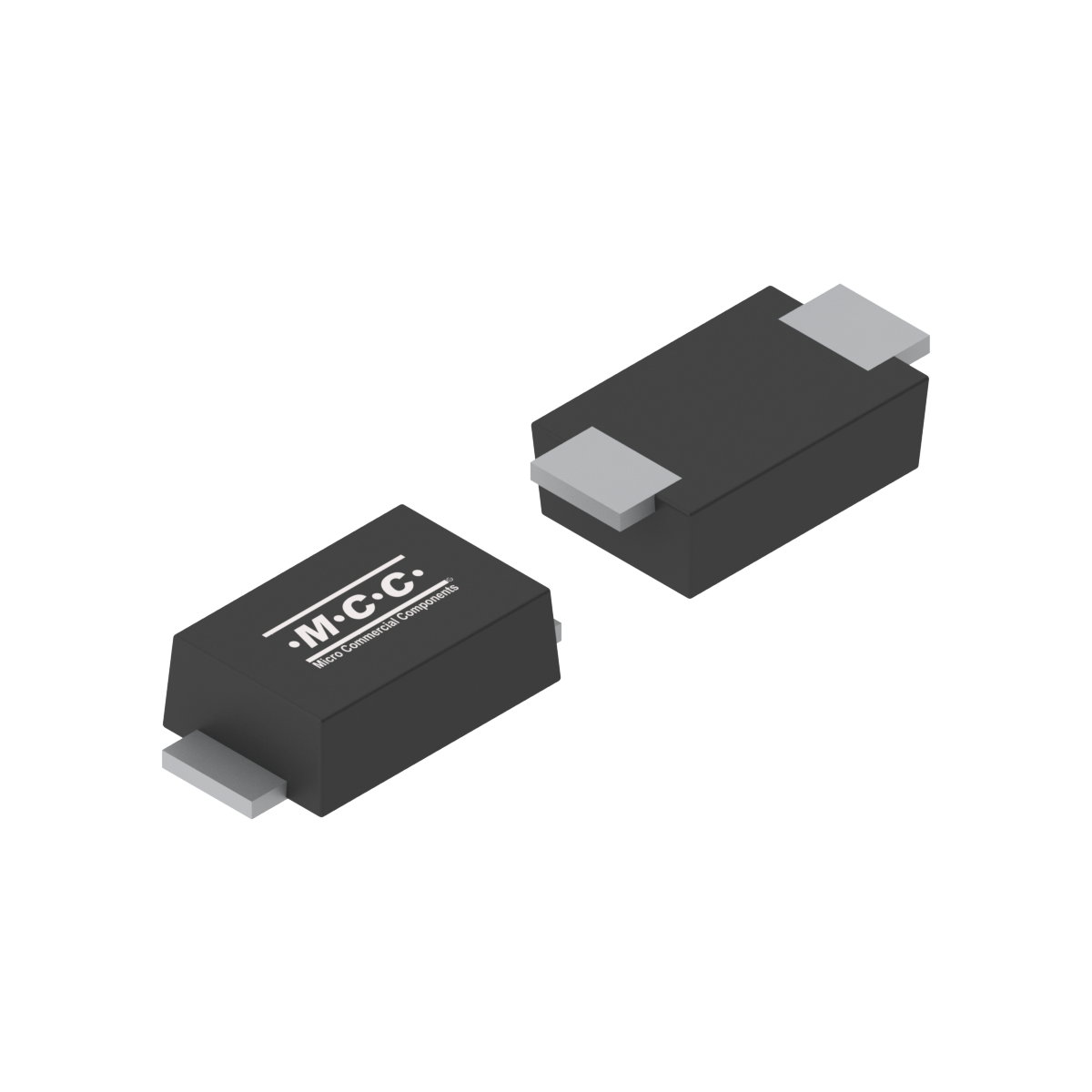

SK520AFLQ

Check Stock Add To Cart
Datasheet ECAD Model

Product Detail

Part Number Number of Functions IF(AV)(A) VRWM (V) VF
(V) [max]@IF(A)		 IR (uA)  [max] @
VR		 IFSM (A) VR (V) IF(A) Tj [max]
(°C)
SK520AFLQ Single 5 200 0.9 5 120 200 5
Part Number SK520AFLQ Number of Functions Single IF(AV)(A)  5 VRWM (V)  200 VF
(V) [max]@IF(A)  0.9 		IR (uA)  [max] @
VR  5 		IFSM (A)  120 VR (V)  200 IF(A)  5 Tj [max]
(°C)

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
SK520AFLQ DO-221AC DO-221AC 0.0350 SK520 Tape&Reel: 10Kpcs/Reel;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report MSL Halogen Free
Tin Whisker Test Report 1 Halogen Free
