Schottky Barrier Rectifiers | Status : Active
Automotive

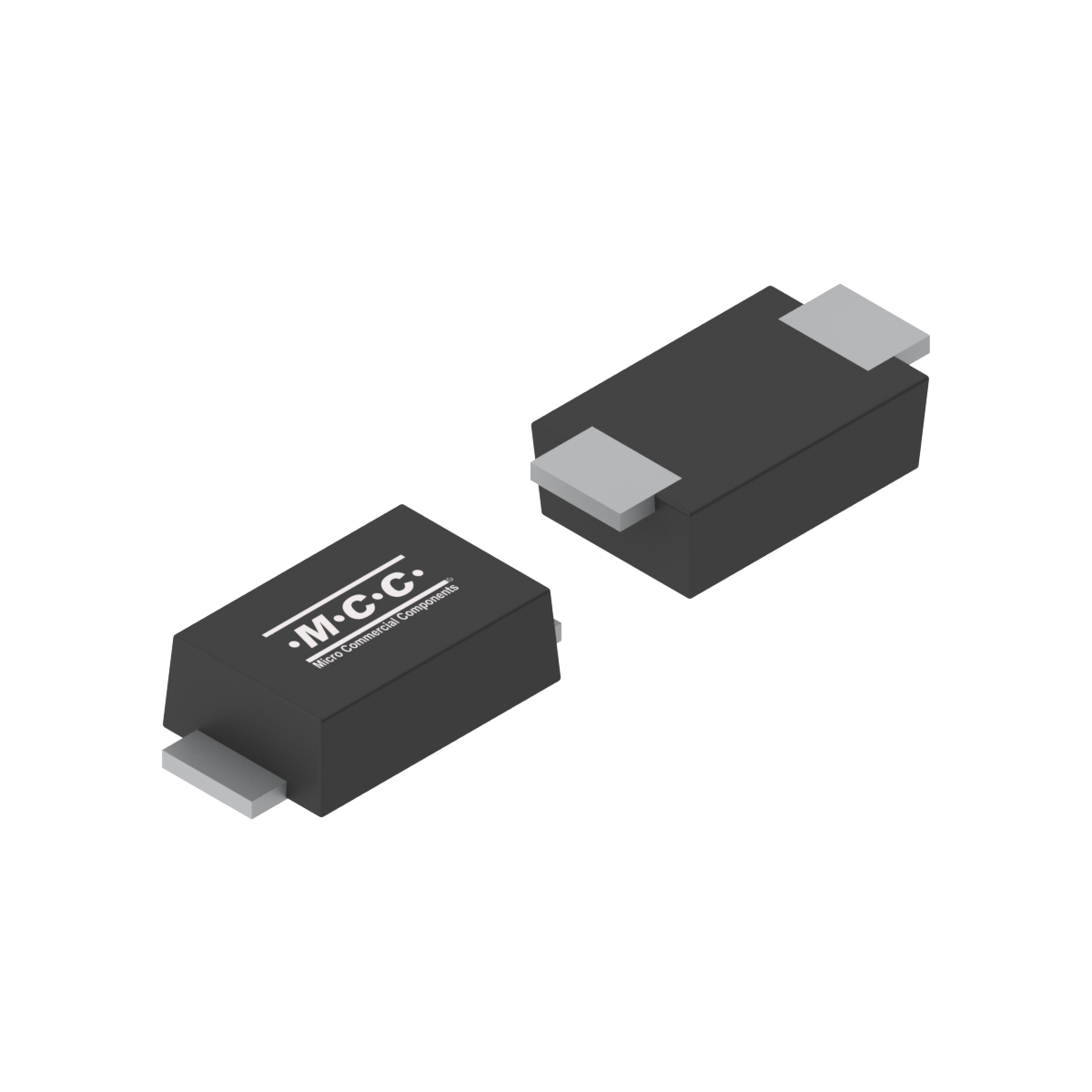

SK56AFLQ

Check Stock Add To Cart
Datasheet ECAD Model

Product Detail

Part Number Number of Functions IF(AV)(A) VRWM (V) VF
(V) [max]@IF(A)		 IR (uA)  [max] @
VR		 IFSM (A) VR (V) IF(A) Tj [max]
(°C)
SK56AFLQ Single 5 60 0.7 100 120 60 5
Part Number SK56AFLQ Number of Functions Single IF(AV)(A)  5 VRWM (V)  60 VF
(V) [max]@IF(A)  0.7 		IR (uA)  [max] @
VR  100 		IFSM (A)  120 VR (V)  60 IF(A)  5 Tj [max]
(°C)

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
SK56AFLQ DO-221AC DO-221AC 0.0350 SK56 Tape&Reel: 10Kpcs/Reel;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report MSL Halogen Free
Tin Whisker Test Report 1 Halogen Free
