Schottky Barrier Rectifiers | Status : Active

SR5200

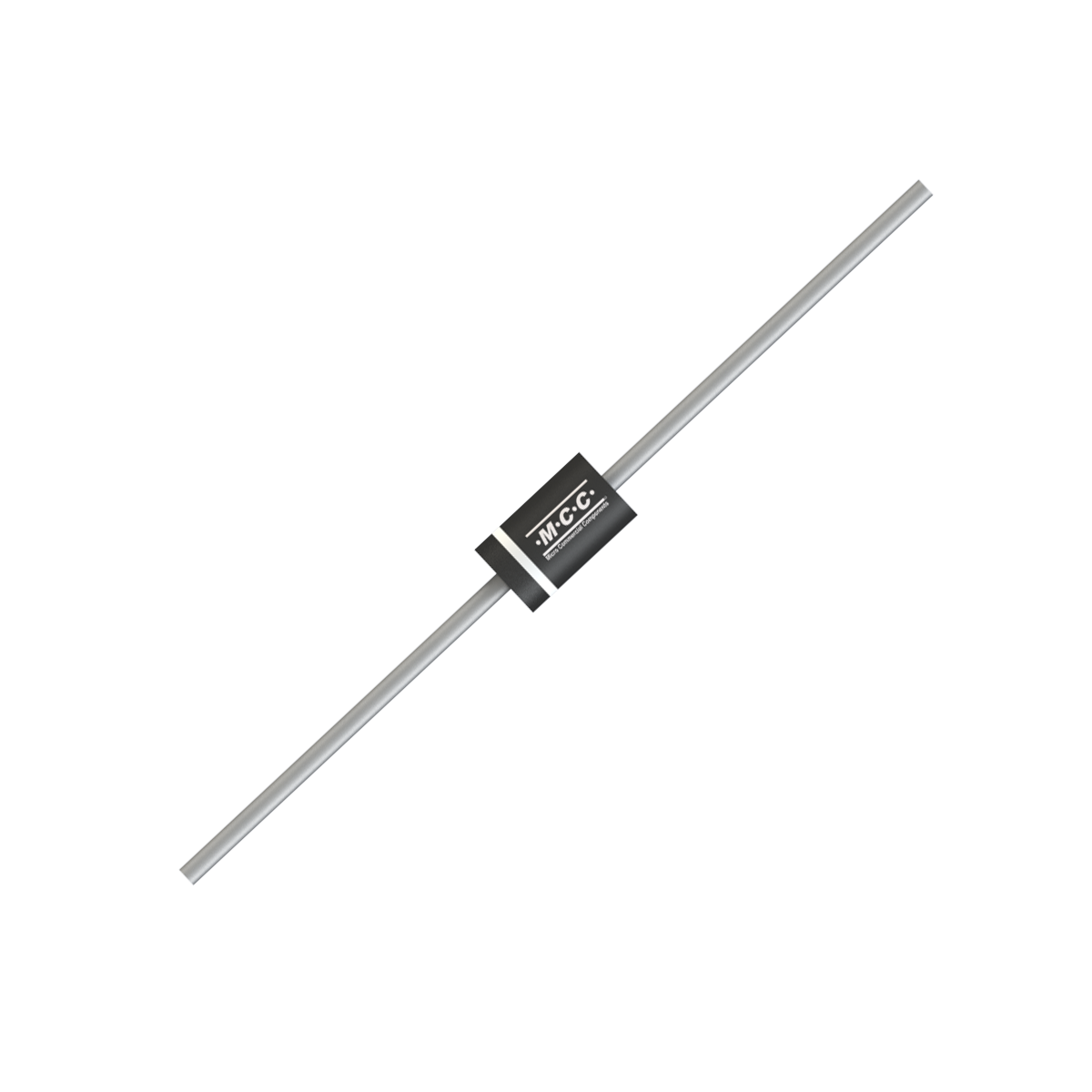

  • Package Type:DO-201AD
  • Packing Info:Tape : 1.2K/Reel, 4.8K/Ctn; Bulk: 500pcs/Box, 12K/Ctn; T/B: 1.2K/Ammo Box, 12K/Ctn.;
  • Category:Schottky Barrier Rectifiers
  • MPN:SR5200-TP, SR5200-AP, SR5200-BP
Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions IF(AV)(A) VRWM (V) VF
(V) [max]@IF(A)		 IR (uA)  [max] @
VR		 IFSM (A) VR (V) IF(A) Tj [max]
(°C)
SR5200 Single 5 200 0.9 10 150 200 5 150
Part Number SR5200 Number of Functions Single IF(AV)(A)  5 VRWM (V)  200 VF
(V) [max]@IF(A)  0.9 		IR (uA)  [max] @
VR  10 		IFSM (A)  150 VR (V)  200 IF(A)  5 Tj [max]
(°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
SR5200 DO-201AD DO-201AD 1.1410 SR5200 Tape : 1.2K/Reel, 4.8K/Ctn;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report MSL MTBF FIT
Tin Whisker Test Report N/A 27479.27 4.2
