Schottky Barrier Rectifiers | Status : Active
Automotive

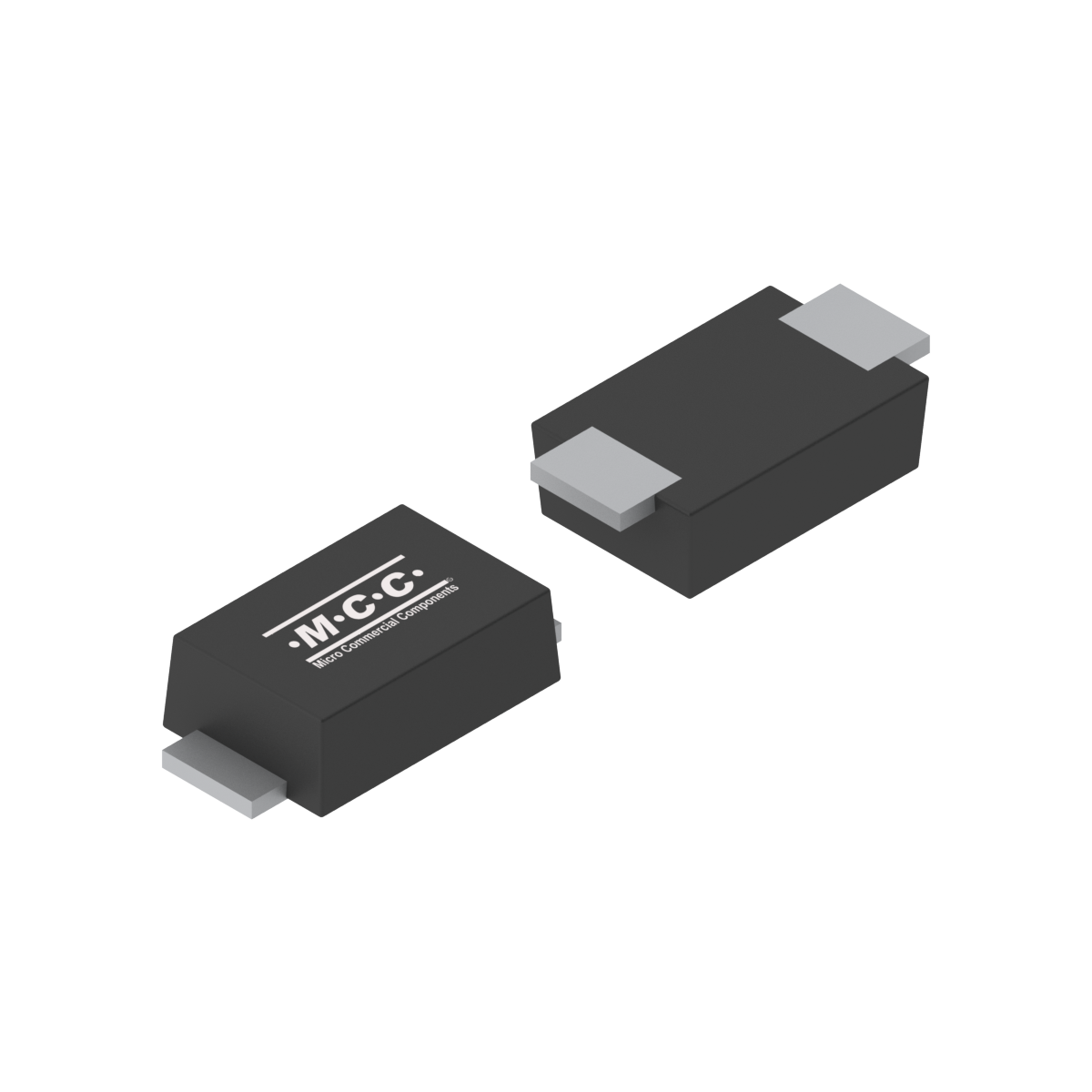

SS220FLQ

Check Stock Add To Cart
Datasheet ECAD Model

Product Detail

Part Number Number of Functions IF(AV)(A) VRWM (V) VF
(V) [max]@IF(A)		 IR (uA)  [max] @
VR		 IFSM (A) VR (V) IF(A) Tj [max]
(°C)
SS220FLQ Single 2 200 0.9 5 75 200 2 175
Part Number SS220FLQ Number of Functions Single IF(AV)(A)  2 VRWM (V)  200 VF
(V) [max]@IF(A)  0.9 		IR (uA)  [max] @
VR  5 		IFSM (A)  75 VR (V)  200 IF(A)  2 Tj [max]
(°C)  175

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
SS220FLQ DO-221AC DO-221AC 0.0350 SS220 Tape&Reel: 10Kpcs/Reel;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report MSL Halogen Free
Tin Whisker Test Report 1 Halogen Free
