Schottky Barrier Rectifiers | Status : Preferred
Automotive

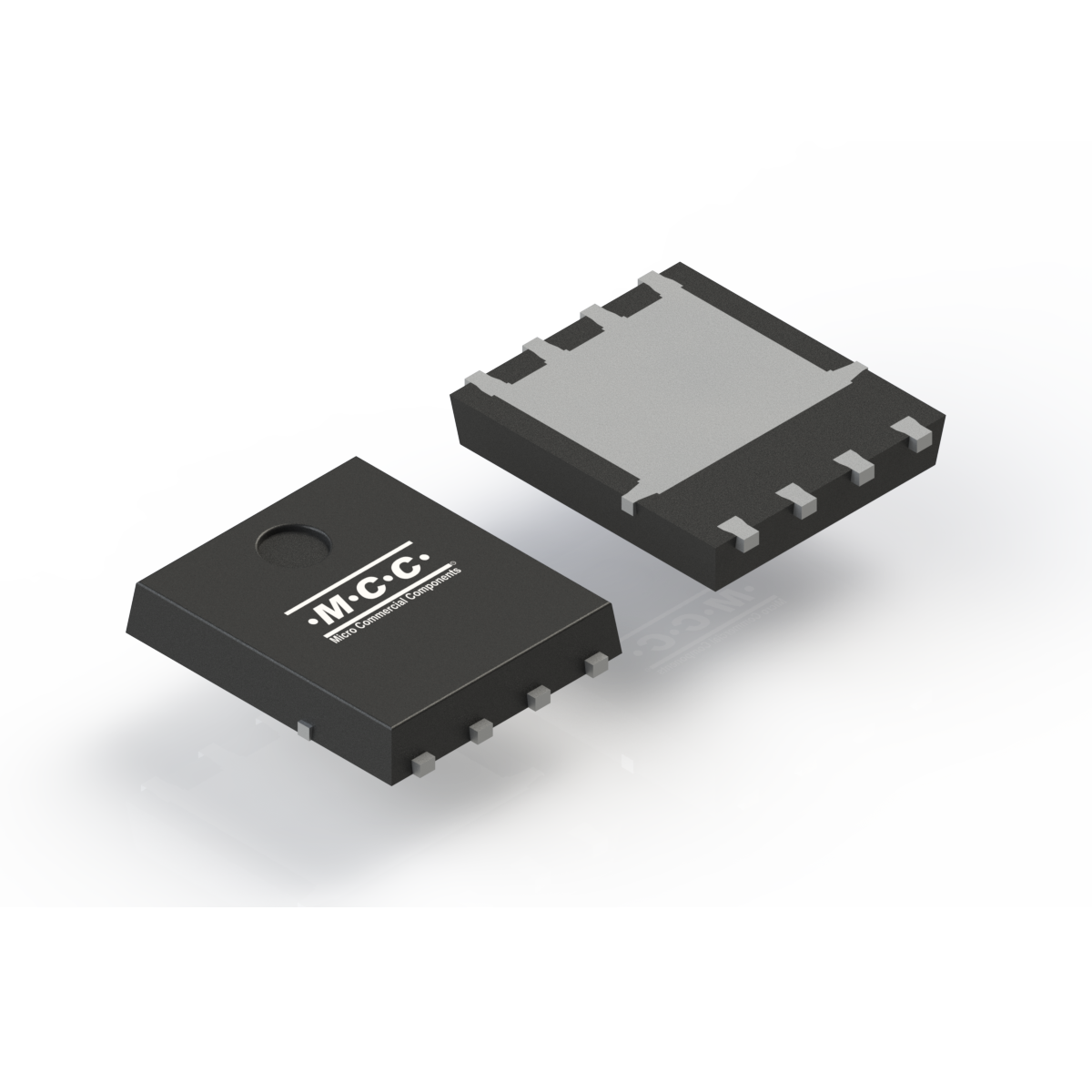

MBRP1560Q

Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions IF(AV)(A) VRWM (V) VF
(V) [max]@IF(A)		 IR (uA)  [max] @
VR		 IFSM (A) VR (V) IF(A) Tj [max]
(°C)
MBRP1560Q Single 15 60 0.8 100 200 60 15 175
Part Number MBRP1560Q Number of Functions Single IF(AV)(A)  15 VRWM (V)  60 VF
(V) [max]@IF(A)  0.8 		IR (uA)  [max] @
VR  100 		IFSM (A)  200 VR (V)  60 IF(A)  15 Tj [max]
(°C)  175

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
MBRP1560Q DFN5060 DFN5060 0.0878 MBRP1560 Tape&Reel:5Kpcs/Reel;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report MSL Halogen Free MTBF FIT
Tin Whisker Test Report 1 Halogen Free 0.00 0.0
