Schottky Barrier Rectifiers | Status : Preferred
Automotive

MBRP6200CTQ

Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions IF(AV)(A) VRWM (V) VF
(V) [max]@IF(A)		 IR (uA)  [max] @
VR		 IFSM (A) VR (V) IF(A) Tj [max]
(°C)
MBRP6200CTQ Dual 6 200 0.9 5 80 200 3 175
Part Number MBRP6200CTQ Number of Functions Dual IF(AV)(A)  6 VRWM (V)  200 VF
(V) [max]@IF(A)  0.9 		IR (uA)  [max] @
VR  5 		IFSM (A)  80 VR (V)  200 IF(A)  3 Tj [max]
(°C)  175

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info

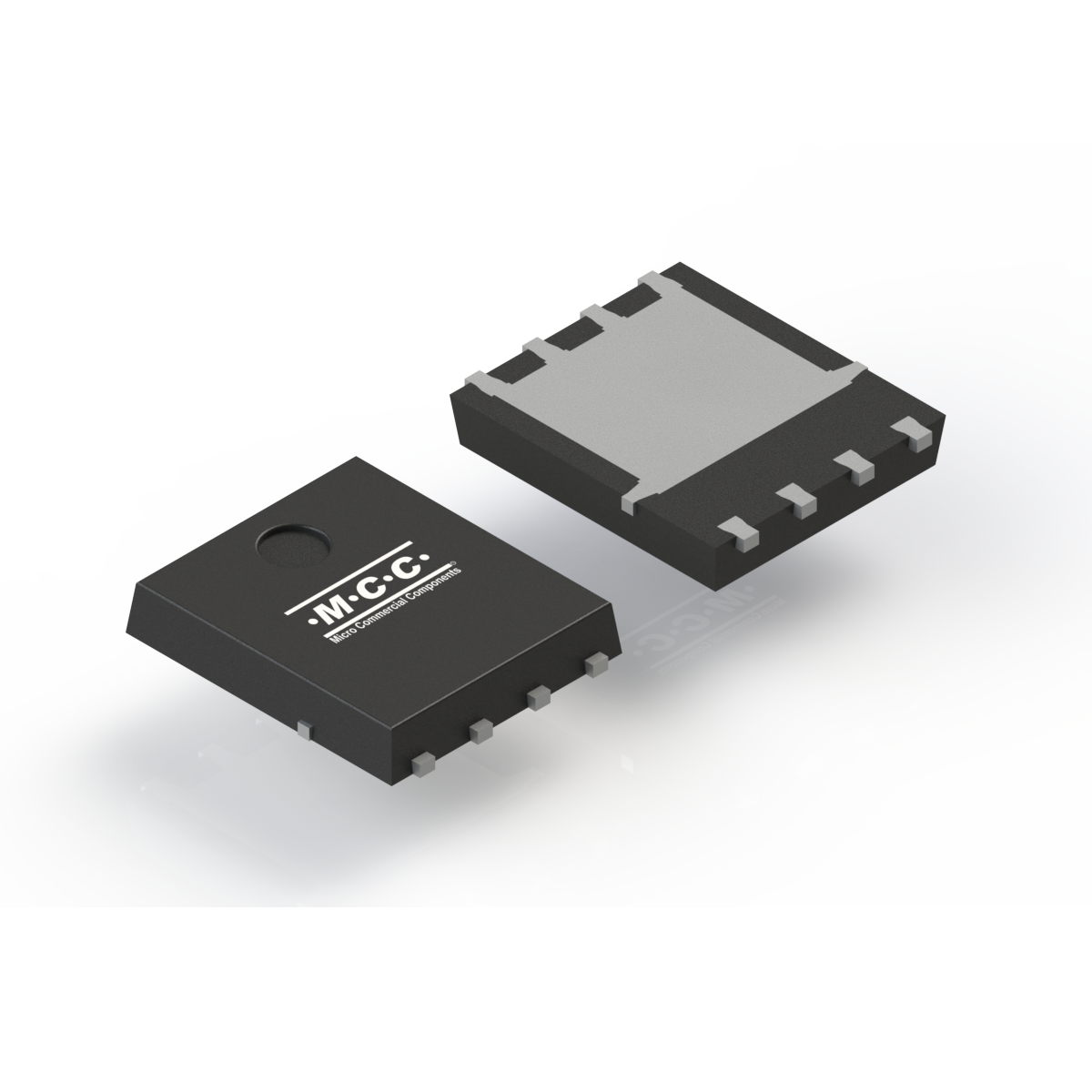

MBRP6200CTQ DFN5060 DFN5060 0.0878 MBRP6200CT Tape&Reel:5Kpcs/Reel;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report MSL Halogen Free MTBF FIT
Tin Whisker Test Report 1 Halogen Free 0.00 0.0
