Small Signal Schottky Diodes | Status :
Active

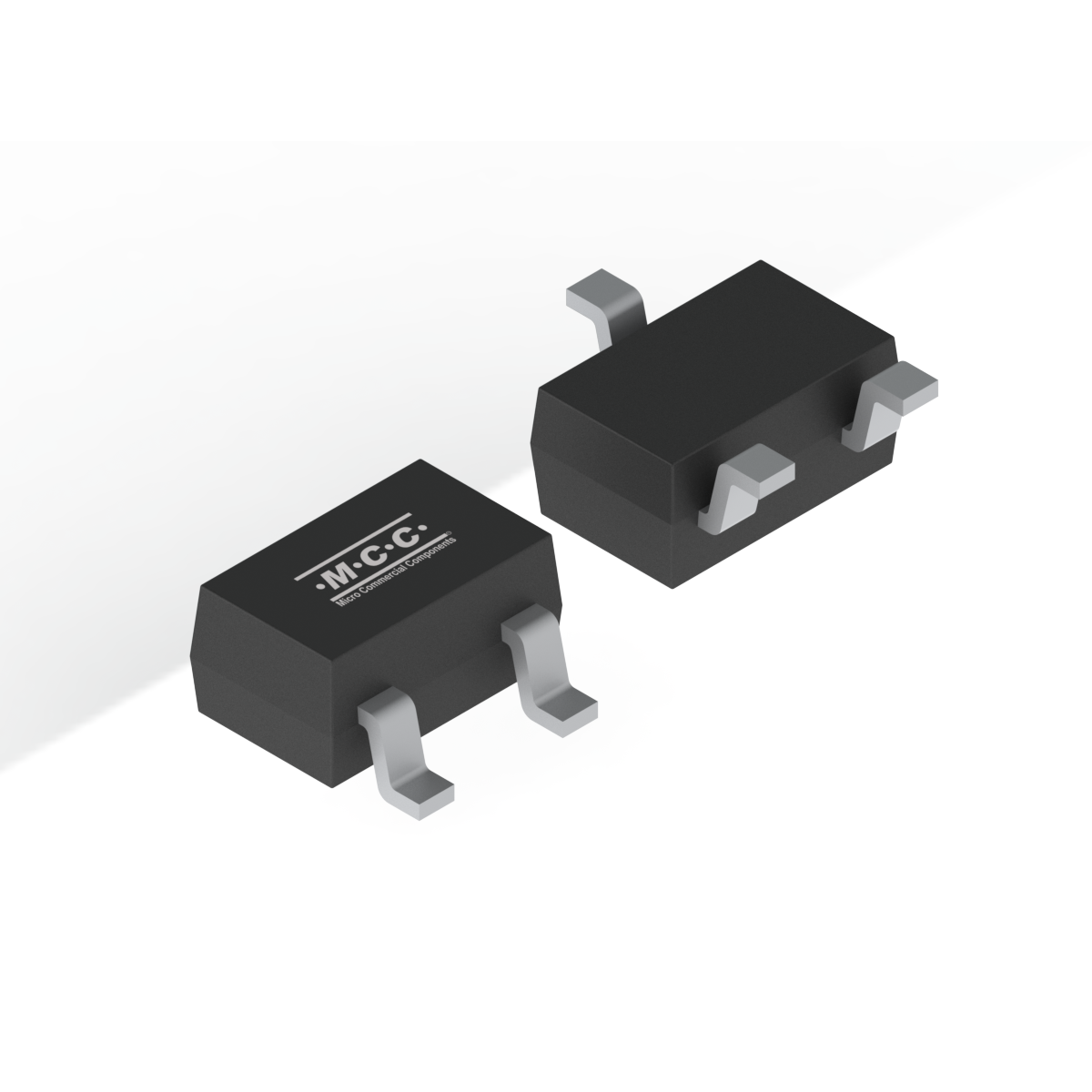

BAT720WT
- Package Type:SOT-323
- Packing Info:Tape : 3K/Reel, 120K/Ctn;
- Category:Small Signal Schottky Diodes
- MPN:BAT720WT-TP
Product Detail
| Part Number | Number of Functions | IF(AV)(A) | VRWM (V) | VF (V) [max]@IF(A) |
IR (uA) [max] @ VR |
VR (V) | IF(A) | Tj [max] (°C) |
|---|---|---|---|---|---|---|---|---|
| BAT720WT | Single | 0.5 | 40 | 0.55 | 100 | 35 | 0.5 | 125 |
| Part Number BAT720WT | Number of Functions Single | IF(AV)(A) 0.5 | VRWM (V) 40 |
VF (V) [max]@IF(A) 0.55 |
IR (uA) [max] @ VR 100 |
VR (V) 35 | IF(A) 0.5 | Tj [max] (°C) 125 |
Packing Information
| Part Number | Package Type | Packing Specification | Component Weight (g) | Marking Code | Packing Info |
|---|---|---|---|---|---|
| BAT720WT | SOT-323 | SOT-323 | 0.0050 | L61 | Tape : 3K/Reel, 120K/Ctn; |
Environmental Information
Download
| Tin Whisker Test Report | Halogen Free |
|---|---|
|
|
