Standard Recovery Rectifiers | Status : Active

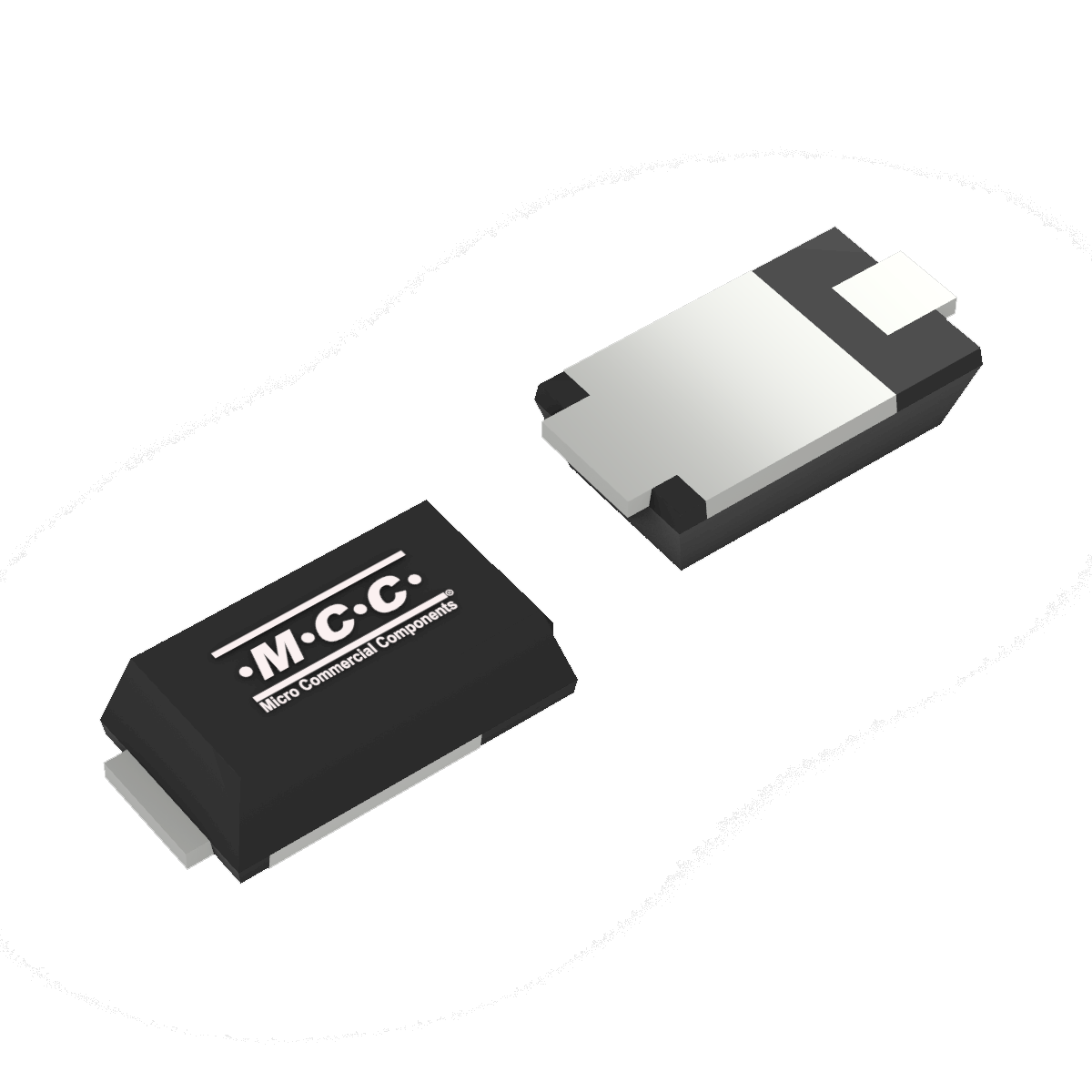

GS1MHL

Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions IF(AV)(A) VRWM (V) VF
(V) [max]@IF(A)		 IR (uA)  [max] @
VR		 TRR (μs) IFSM (A) IF(A) VR (V) Tj [max]
(°C)
GS1MHL Single 1 1000 1.1 5 30 1 1000 150
Part Number GS1MHL Number of Functions Single IF(AV)(A)  1 VRWM (V)  1000 VF
(V) [max]@IF(A)  1.1 		IR (uA)  [max] @
VR  5 		TRR (μs)   IFSM (A)  30 IF(A)  1 VR (V)  1000 Tj [max]
(°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
GS1MHL SOD-123HL SOD-123HL 0.0169 GS1M Tape&Reel:2.5 Kpcs/Reel;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
MSL Halogen Free MTBF FIT
1 Halogen Free 0.00 0.0
