Standard Recovery Rectifiers | Status : Active

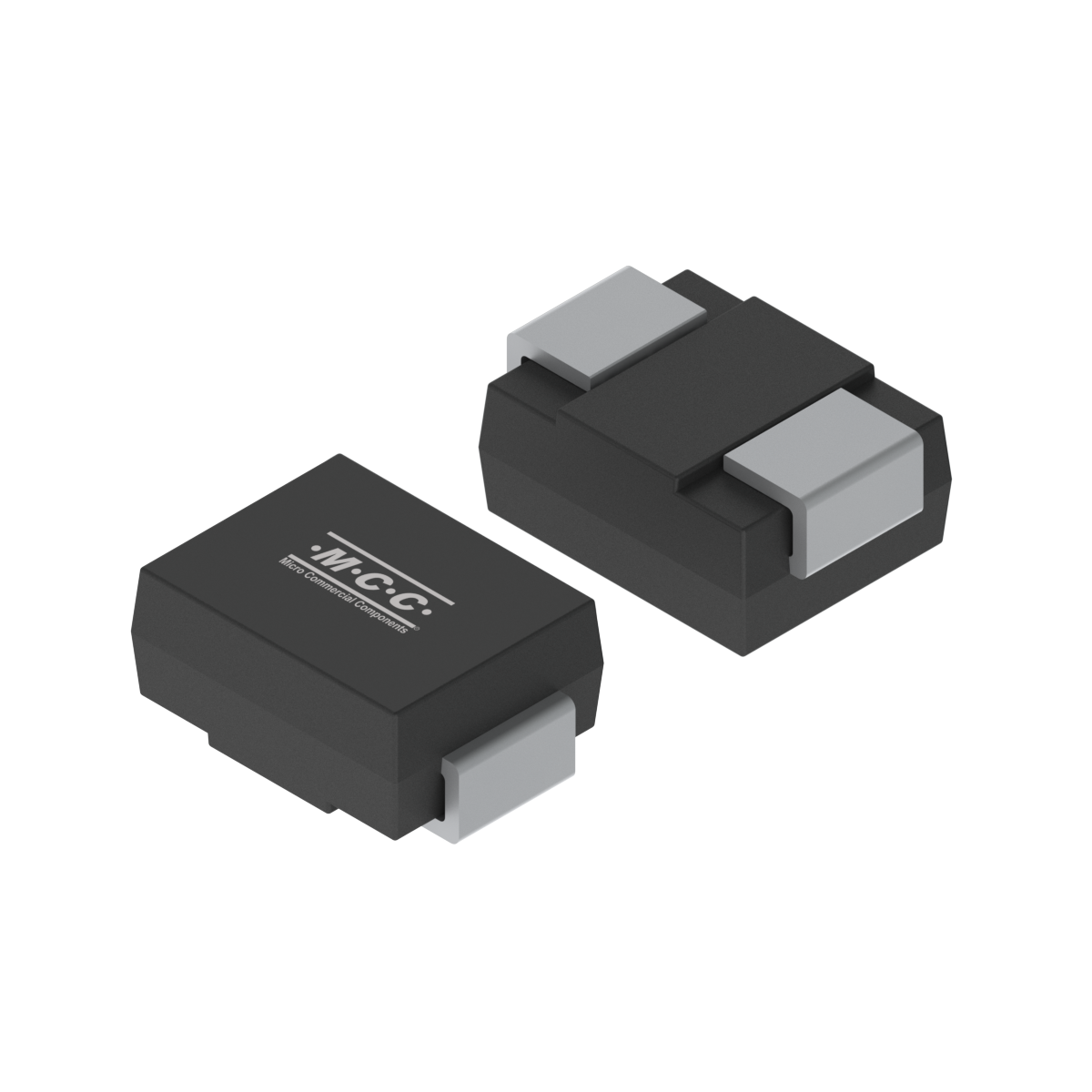

S3DB

Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions IF(AV)(A) VRWM (V) VF
(V) [max]@IF(A)		 IR (uA)  [max] @
VR		 TRR (μs) IFSM (A) IF(A) VR (V) Tj [max]
(°C)
S3DB Single 3 200 1.1 5 100 3 200 150
Part Number S3DB Number of Functions Single IF(AV)(A)  3 VRWM (V)  200 VF
(V) [max]@IF(A)  1.1 		IR (uA)  [max] @
VR  5 		TRR (μs)   IFSM (A)  100 IF(A)  3 VR (V)  200 Tj [max]
(°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
S3DB SMB SMB 0.0990 S3DB Tape : 3K/Reel, 48K/Ctn;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report MSL Halogen Free MTBF FIT
Tin Whisker Test Report 1 Halogen Free 19984.92 5.7

ECN/PCN

ECN/PCN No# Title PDF Issued Date
010925-1 Additional assembly & test centre PDF 01/09/2025
030322-1 Additional Qualified (A/T) Assembly/Test Equipments PDF 03/03/2022
080115-3 MCC Introduces Auto-Soldering Process For SMA&SMB&SMC Packages PDF 08/01/2015
070103 Pb(Lead) Free Plating Conversion PDF 07/01/2003
