Super Fast Recovery Rectifiers | Status :
Obsoleted
MUR880
Last Time Ship Date:07/18/2025
EOL Notice

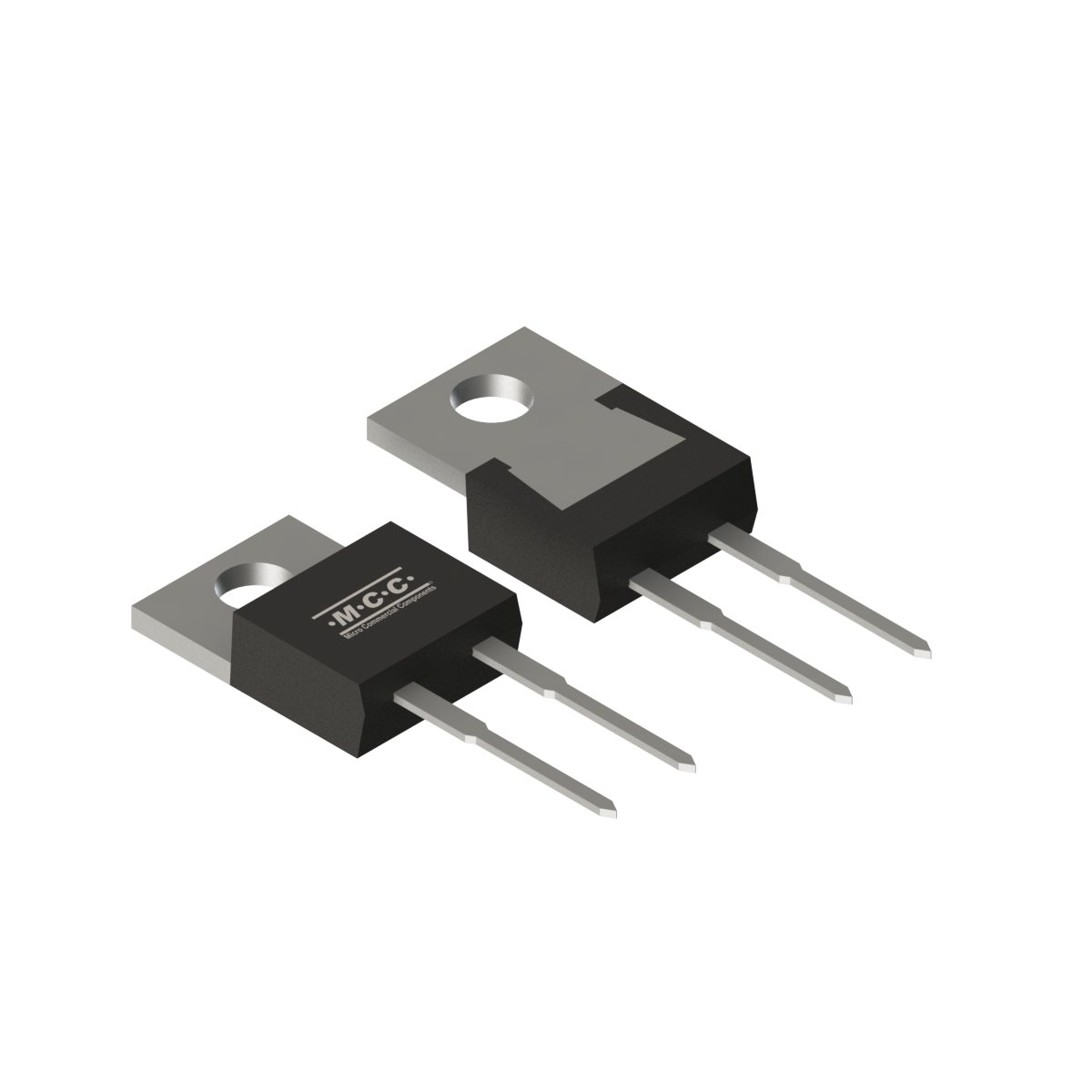

- Package Type:TO-220AC
- Packing Info:Tube: 50pcs/Tube, 1K/Box, 5k/Ctn .;
- Category:Super Fast Recovery Rectifiers
- MPN:MUR880-BP
Product Detail
| Part Number | Number of Functions | IF(AV)(A) | VRWM (V) | VF (V) [max]@IF(A) |
IR (uA) [max] @ VR |
TRR (μs) | IFSM (A) | IF(A) | VR (V) | Tj [max] (°C) |
|---|---|---|---|---|---|---|---|---|---|---|
| MUR880 | Single | 8 | 800 | 1.9 | 10 | 0.075 | 125 | 8 | 800 | 150 |
| Part Number MUR880 | Number of Functions Single | IF(AV)(A) 8 | VRWM (V) 800 |
VF (V) [max]@IF(A) 1.9 |
IR (uA) [max] @ VR 10 |
TRR (μs) 0.075 | IFSM (A) 125 | IF(A) 8 | VR (V) 800 |
Tj [max] (°C) 150 |
Packing Information
Environmental Information
Download
| Tin Whisker Test Report | MSL | MTBF | FIT |
|---|---|---|---|
|
N/A | 22483.04 | 5.1 |
