Super Fast Recovery Rectifiers | Status : Active

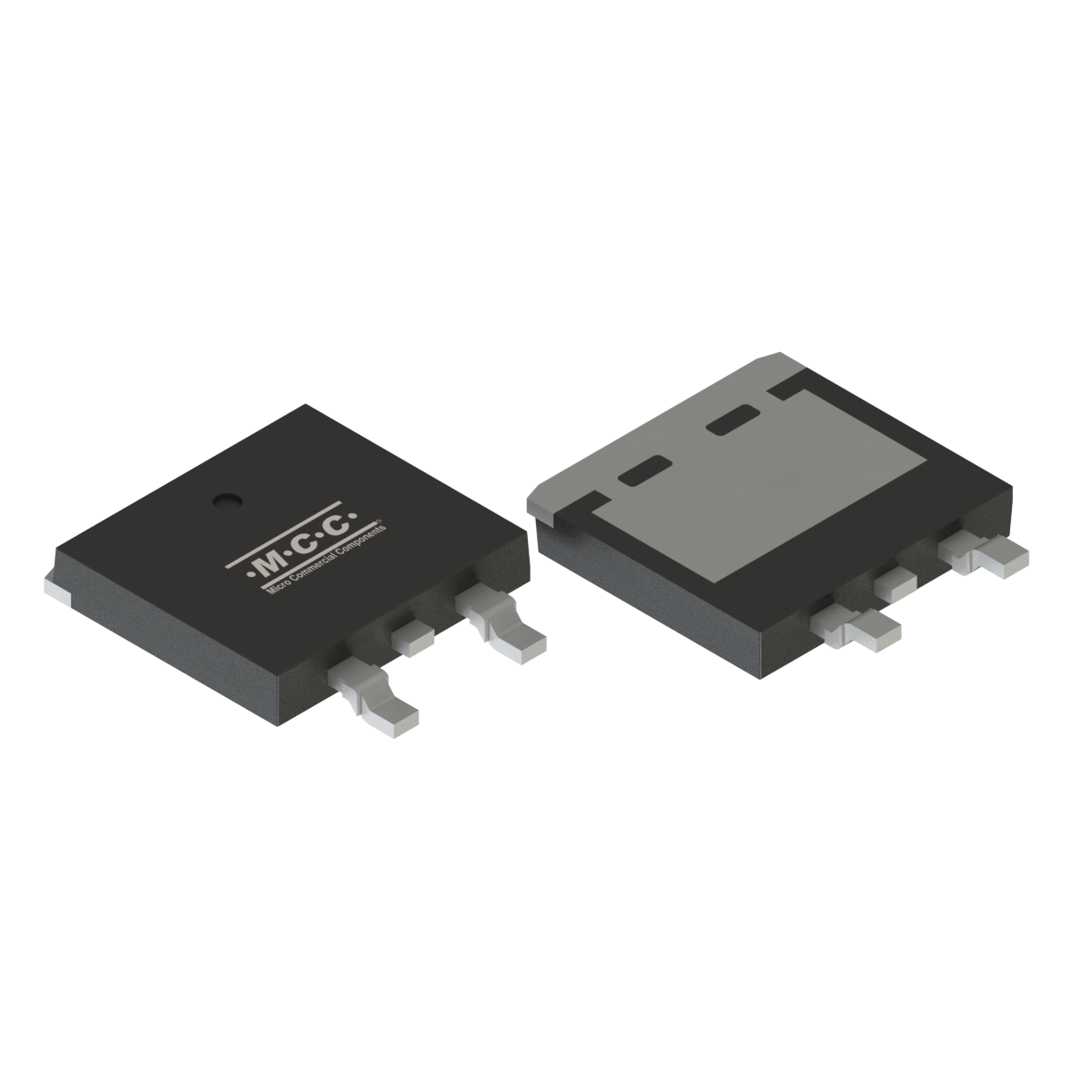

MURBF1660C

Check Stock Add To Cart
Datasheet ECAD Model

Product Detail

Part Number Number of Functions IF(AV)(A) VRWM (V) VF
(V) [max]@IF(A)		 IR (uA)  [max] @
VR		 TRR (μs) IFSM (A) IF(A) VR (V) Tj [max]
(°C)
MURBF1660C Single 16 600 1.3 10 0.055 200 16 600 175
Part Number MURBF1660C Number of Functions Single IF(AV)(A)  16 VRWM (V)  600 VF
(V) [max]@IF(A)  1.3 		IR (uA)  [max] @
VR  10 		TRR (μs)  0.055 IFSM (A)  200 IF(A)  16 VR (V)  600 Tj [max]
(°C)  175

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
MURBF1660C TO-263AC TO-263AC 1.5500 MURBF1660C Tape&Reel:1500pcs/Reel;

Environmental Information link icon

Reliability Report Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Environmental Compliance Download
MSL Halogen Free
1 Halogen Free
