Super Fast Recovery Rectifiers | Status : Active

MURBF1660CT

Check Stock Add To Cart
Datasheet ECAD Model

Product Detail

Part Number Number of Functions Configuration IF(AV)(A) VRWM (V) VF
(V) [max]@IF(A)		 IR (uA)  [max] @
VR		 TRR (μs) IFSM (A) IF(A) VR (V) Tj [max]
(°C)
MURBF1660CT Dual Common Cathode 16 600 1.5 10 0.035 120 8 600 175
Part Number MURBF1660CT Number of Functions Dual Configuration Common Cathode IF(AV)(A)  16 VRWM (V)  600 VF
(V) [max]@IF(A)  1.5 		IR (uA)  [max] @
VR  10 		TRR (μs)  0.035 IFSM (A)  120 IF(A)  8 VR (V)  600 Tj [max]
(°C)  175

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info

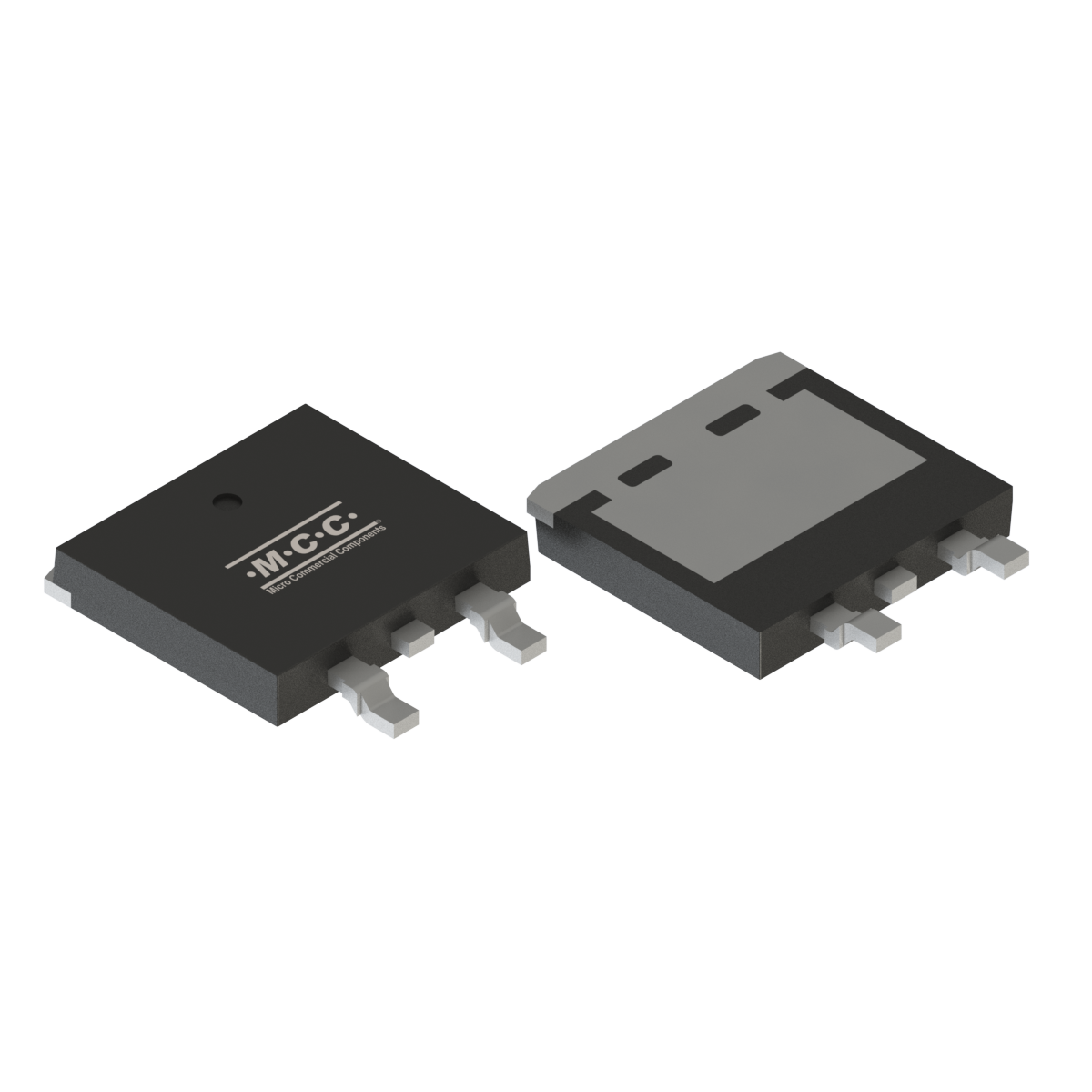

MURBF1660CT TO-263AC TO-263AC 1.5500 MURBF1660CT Tape&Reel:1500pcs/Reel;

Environmental Information link icon

Reliability Report Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Environmental Compliance Download
MSL Halogen Free
1 Halogen Free
