Super Fast Recovery Rectifiers | Status : Active

MURBF3060CT

Check Stock Add To Cart
Datasheet ECAD Model

Product Detail

Part Number Number of Functions Configuration IF(AV)(A) VRWM (V) VF
(V) [max]@IF(A)		 IR (uA)  [max] @
VR		 TRR (μs) IFSM (A) IF(A) VR (V) Tj [max]
(°C)
MURBF3060CT Dual Common Cathode 30 600 1.15 10 0.055 200 15 600 175
Part Number MURBF3060CT Number of Functions Dual Configuration Common Cathode IF(AV)(A)  30 VRWM (V)  600 VF
(V) [max]@IF(A)  1.15 		IR (uA)  [max] @
VR  10 		TRR (μs)  0.055 IFSM (A)  200 IF(A)  15 VR (V)  600 Tj [max]
(°C)  175

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info

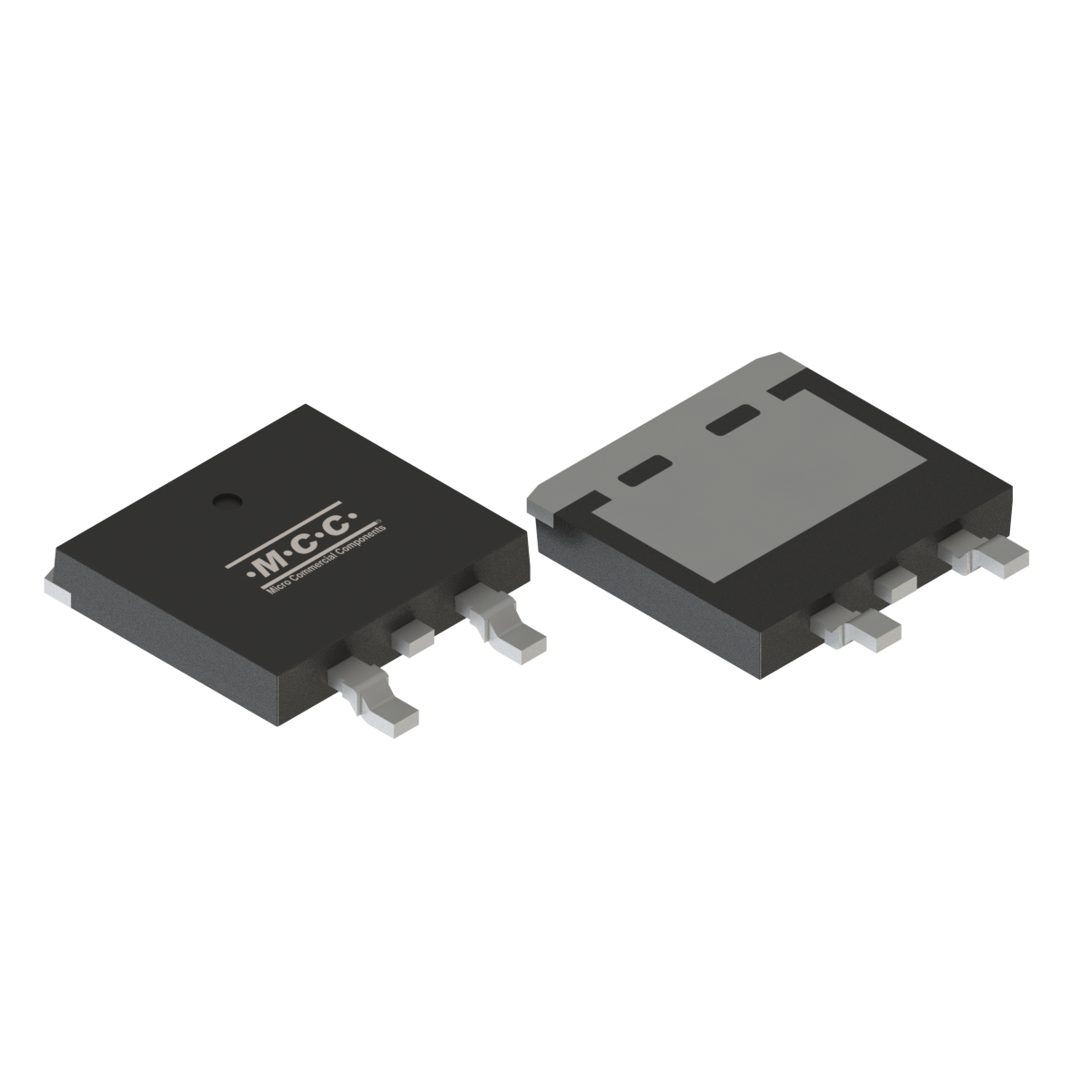

MURBF3060CT TO-263AC TO-263AC 1.5500 MURBF3060CT Tape&Reel:1500pcs/Reel;

Environmental Information link icon

Reliability Report Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Environmental Compliance Download
MSL Halogen Free
1 Halogen Free
