Switching Diodes | Status : Active

BAS16V

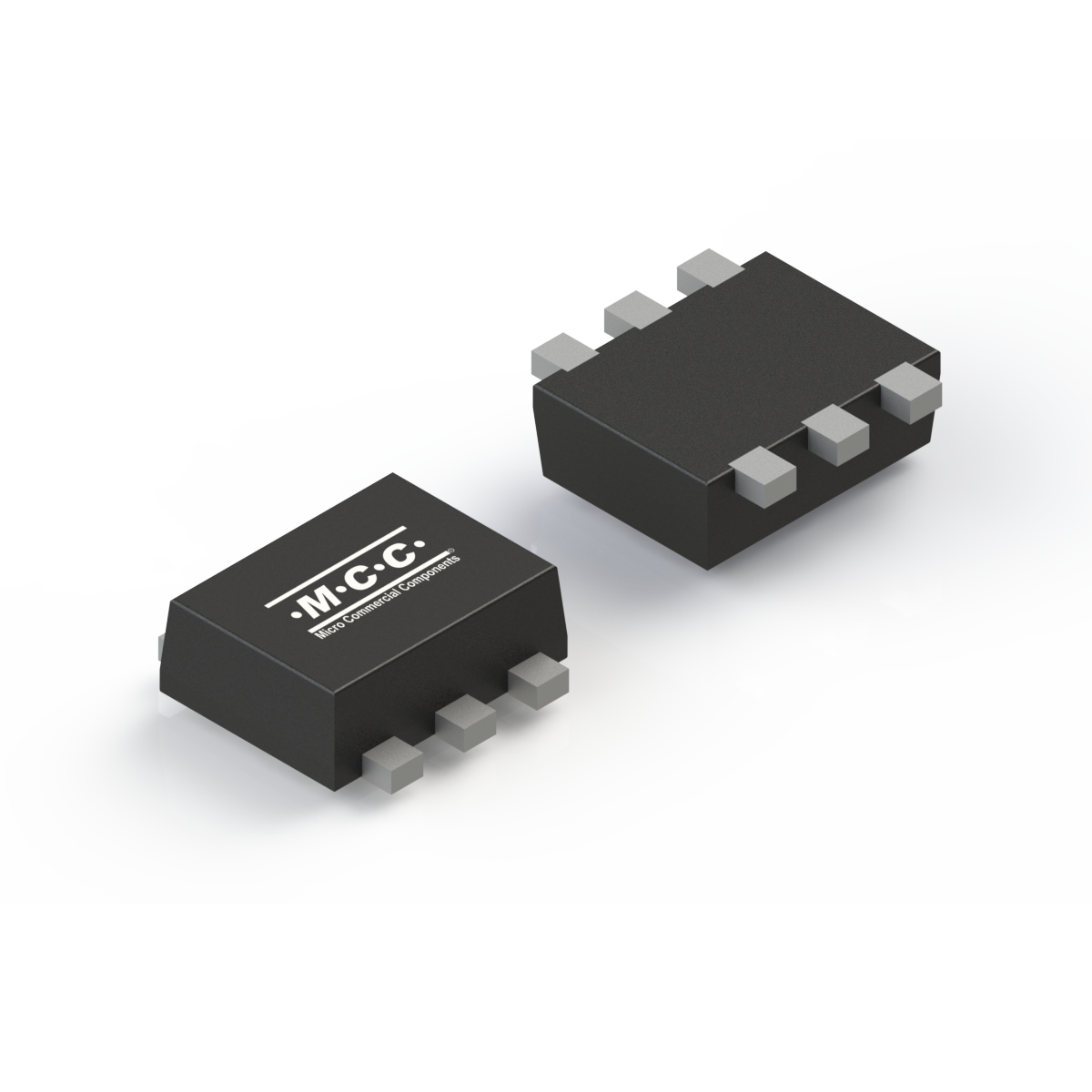

  • Package Type:SOT-563
  • Packing Info: Tape : 3K/Reel , 120K/Ctn;
  • Category:Switching Diodes
Check Stock Add To Cart
Datasheet ECAD Model

Product Detail

Part Number Number of Functions Configuration IF(AV)(A) VRWM(V) VF
(V) [max]@IF(A)		 IR(uA) [max] @
VR		 TRR (μs) VR (V) IF(A) PD (mW) Tj [max] (°C)
BAS16V Dual Isolated 0.2 75 1.0 1.0 0.004 75 0.05 150 150
Part Number BAS16V Number of Functions Dual Configuration Isolated IF(AV)(A)  0.2 VRWM(V)  75 VF
(V) [max]@IF(A)  1.0 		IR(uA) [max] @
VR  1.0 		TRR (μs)  0.004 VR (V)  75 IF(A)  0.05 PD (mW)  150 Tj [max] (°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
BAS16V SOT-563 SOT-563 0.0030 KAM Tape : 3K/Reel , 120K/Ctn;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report Halogen Free
Tin Whisker Test Report Halogen Free

ECN/PCN

ECN/PCN No# Title PDF Issued Date
043021-2 Additional new lead frame for SOT-563 Package PDF 04/30/2021
080111 Remove the plastic ziploc bag of the reel for SOT&SOD Packages PCN#080111 PDF 08/15/2011
070103 Pb(Lead) Free Plating Conversion PDF 07/01/2003
