Switching Diodes | Status : Active

BAV21W

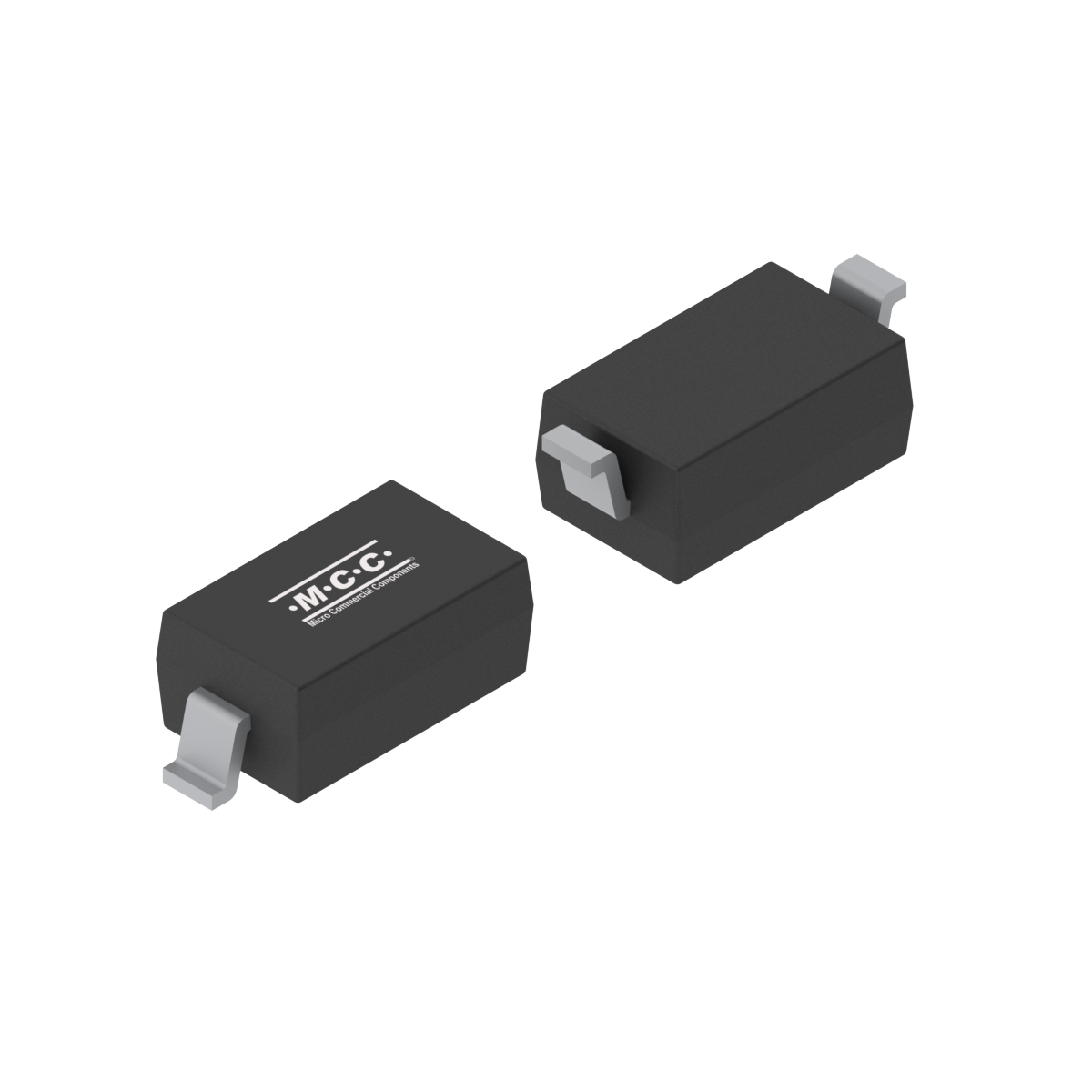

  • Package Type:SOD-123
  • Packing Info: Tape : 3K/Reel, 120K/Ctn;
  • Category:Switching Diodes
Check Stock Add To Cart
Datasheet ECAD Model

Product Detail

Part Number Number of Functions IF(AV)(A) VRWM(V) VF
(V) [max]@IF(A)		 IR(uA) [max] @
VR		 TRR (μs) VR (V) IF(A) PD (mW) Tj [max] (°C)
BAV21W Single 0.25 250 1 0.1 0.05 200 0.1 410 150
Part Number BAV21W Number of Functions Single IF(AV)(A)  0.25 VRWM(V)  250 VF
(V) [max]@IF(A)  1 		IR(uA) [max] @
VR  0.1 		TRR (μs)  0.05 VR (V)  200 IF(A)  0.1 PD (mW)  410 Tj [max] (°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
BAV21W SOD-123 SOD-123 0.0090 T3 Tape : 3K/Reel, 120K/Ctn;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report Halogen Free
Tin Whisker Test Report Halogen Free

ECN/PCN

ECN/PCN No# Title PDF Issued Date
080111 Remove the plastic ziploc bag of the reel for SOT&SOD Packages PCN#080111 PDF 08/15/2011
070103 Pb(Lead) Free Plating Conversion PDF 07/01/2003
