Switching Diodes | Status : Active

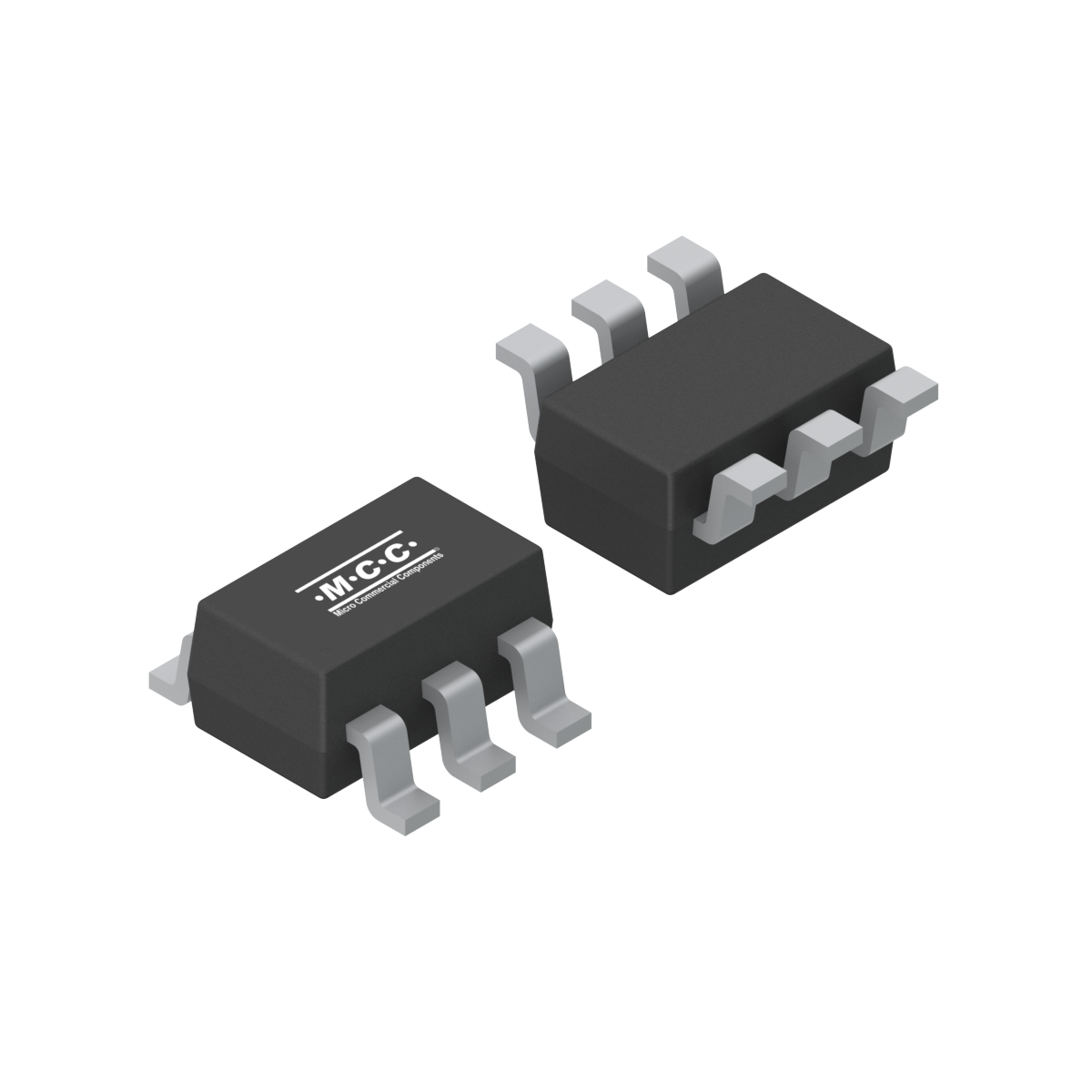

MMBD4448HAQW

  • Package Type:SOT-363
  • Packing Info: Tape : 3K/Reel, 120K/Ctn;
  • Category:Switching Diodes
Check Stock Add To Cart
Datasheet ECAD Model

Product Detail

Part Number Number of Functions Configuration IF(AV)(A) VRWM(V) VF
(V) [max]@IF(A)		 IR(uA) [max] @
VR		 TRR (μs) VR (V) IF(A) PD (mW) Tj [max] (°C)
MMBD4448HAQW Quad Common Anode 0.25 80 1.0 0.1 0.004 70 0.05 200 150
Part Number MMBD4448HAQW Number of Functions Quad Configuration Common Anode IF(AV)(A)  0.25 VRWM(V)  80 VF
(V) [max]@IF(A)  1.0 		IR(uA) [max] @
VR  0.1 		TRR (μs)  0.004 VR (V)  70 IF(A)  0.05 PD (mW)  200 Tj [max] (°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
MMBD4448HAQW SOT-363 SOT-363 0.0090 KA5 Tape : 3K/Reel, 120K/Ctn;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report Halogen Free
Tin Whisker Test Report Halogen Free

ECN/PCN

ECN/PCN No# Title PDF Issued Date
012622-1 Additional new lead frame of SOT-363 Package Switching Diodes PDF 01/26/2022
080111 Remove the plastic ziploc bag of the reel for SOT&SOD Packages PCN#080111 PDF 08/15/2011
070103 Pb(Lead) Free Plating Conversion PDF 07/01/2003
