Zener Diodes | Status :
Obsoleted
DL4120
Last Time Ship Date:12-01-2014
EOL Notice

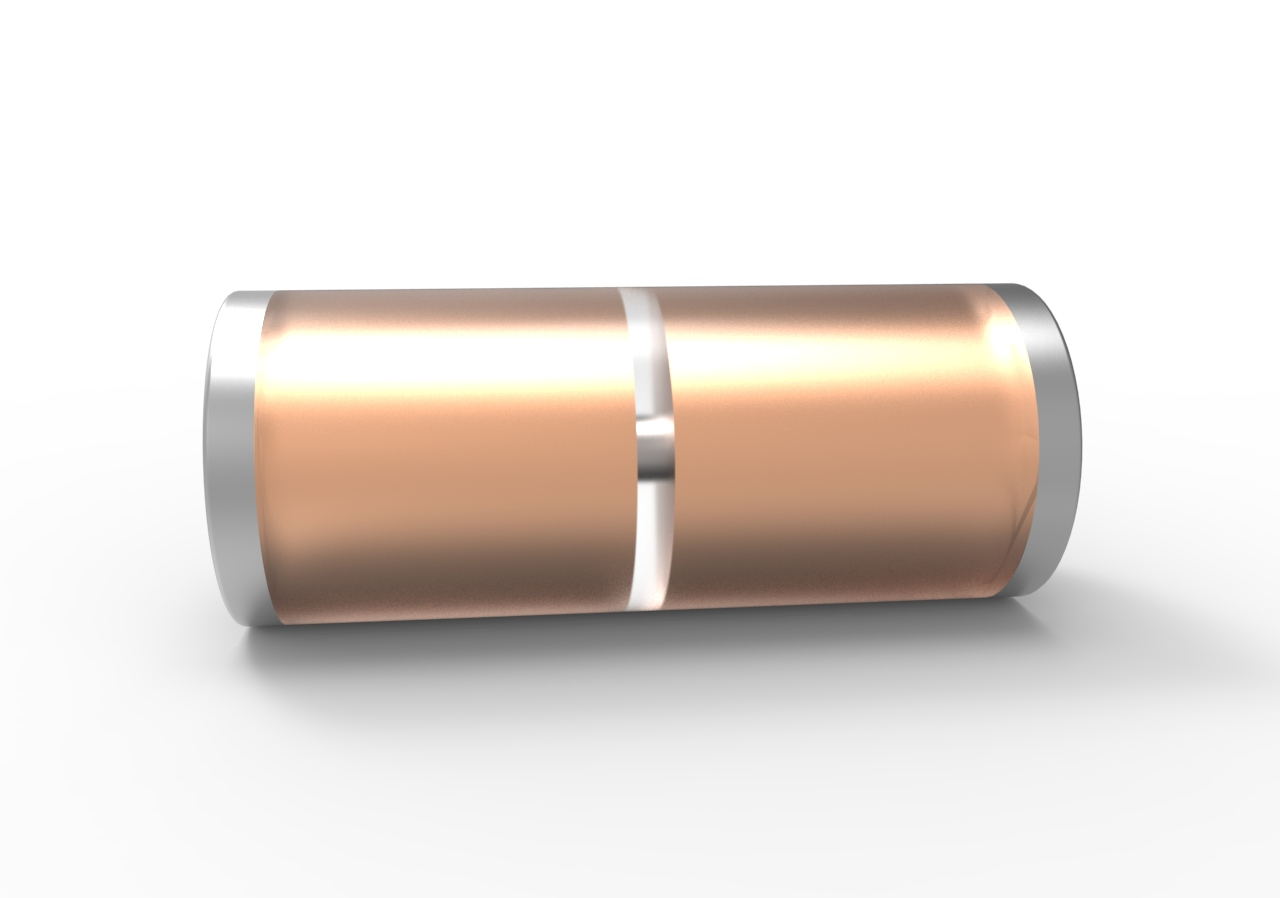

- Package Type:MINIMELF
- Packing Info:Tape&Reel: 2.5Kpcs/Reel;
- Category:Zener Diodes
Product Detail
| Part Number | Number of Functions | PD(W) | VZ[Nom](V) | IZT(mA) | IR (mA) [max] @VR |
VR(V) | ZZT(Ω) @IZT |
ZZK(Ω) @IZT |
IZK(mA) | Tj [max] (°C) |
|---|---|---|---|---|---|---|---|---|---|---|
| DL4120 | Single | 0.5 | 28.5 | 0.25 | 0.00001 | 22.8 | 200 | 175 |
| Part Number DL4120 | Number of Functions Single | PD(W) 0.5 | VZ[Nom](V) 28.5 | IZT(mA) 0.25 |
IR (mA) [max] @VR 0.00001 |
VR(V) 22.8 |
ZZT(Ω) @IZT 200 |
ZZK(Ω) @IZT |
IZK(mA) |
Tj [max] (°C) 175 |
Packing Information
| Part Number | Package Type | Packing Specification | Component Weight (g) | Packing Info |
|---|---|---|---|---|
| DL4120 | MINIMELF |
MINIMELF
|
0.0300 | Tape&Reel: 2.5Kpcs/Reel; |
Environmental Information
Download
| MTBF | FIT |
|---|---|
| 27479.27 | 4.2 |
ECN/PCN
| ECN/PCN No# | Title | Issued Date | |
|---|---|---|---|
| 070103 | Pb(Lead) Free Plating Conversion |
|
07/01/2003 |
