Zener Diodes | Status : Active

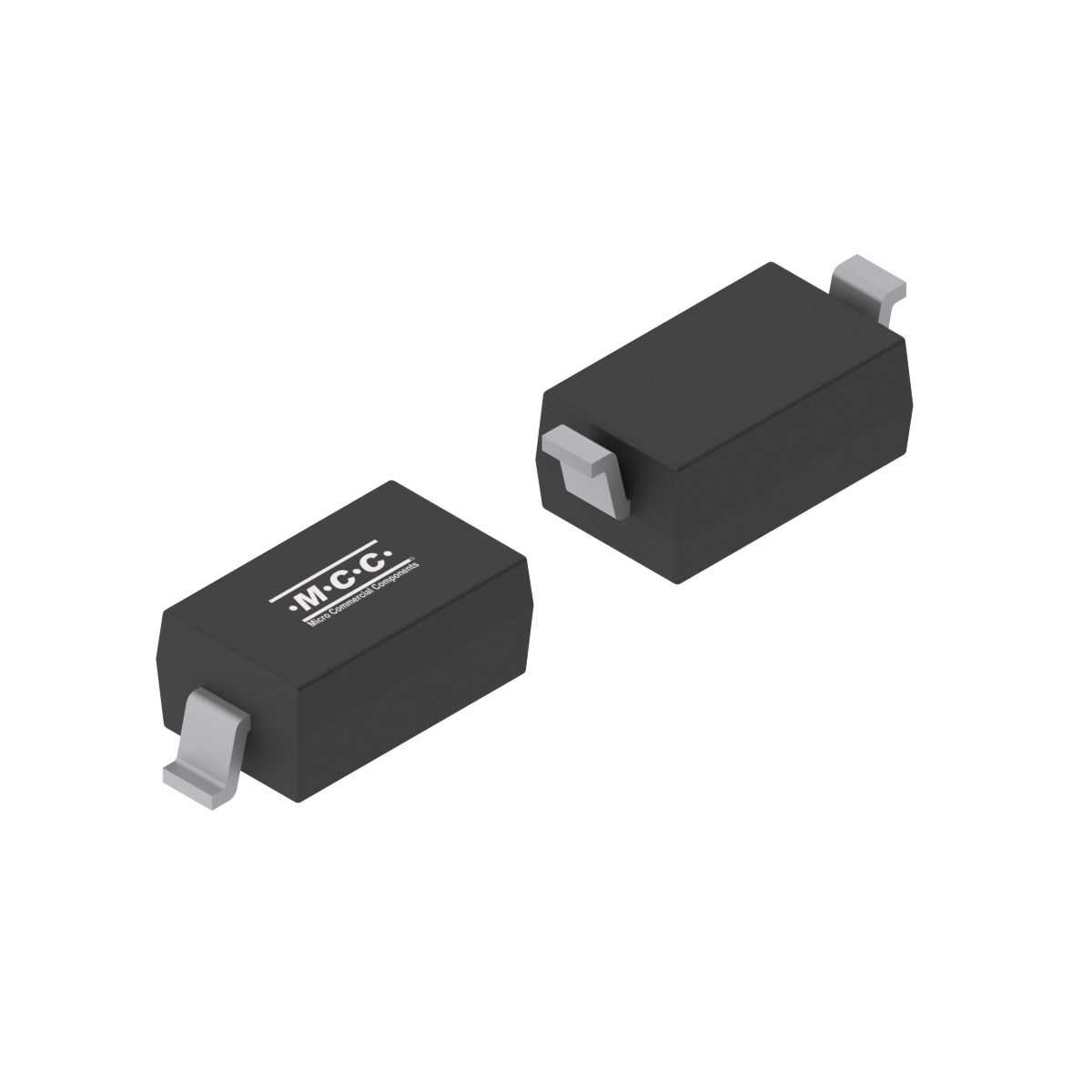

MMSZ5229B

  • Package Type:SOD-123
  • Packing Info:Tape : 3K/Reel, 120K/Ctn;
  • Category:Zener Diodes
  • MPN:MMSZ5229B-TP
Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions PD(W) VZ[Nom](V) IZT(mA) IR (mA) [max]
@VR		 VR(V) ZZT(Ω)
@IZT		 ZZK(Ω)
@IZT		 IZK(mA) Tj [max]
(°C)
MMSZ5229B Single 0.5 4.3 20 0.005 1 22 2000 0.25 150
Part Number MMSZ5229B Number of Functions Single PD(W)  0.5 VZ[Nom](V)  4.3 IZT(mA)  20 IR (mA) [max]
@VR  0.005 		VR(V)  1 ZZT(Ω)
@IZT  22 		ZZK(Ω)
@IZT  2000 		IZK(mA)  0.25 Tj [max]
(°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
MMSZ5229B SOD-123 SOD-123 0.0090 G4 Tape : 3K/Reel, 120K/Ctn;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report Halogen Free MTBF FIT
Tin Whisker Test Report Halogen Free 19984.92 5.7

ECN/PCN

ECN/PCN No# Title PDF Issued Date
080111 Remove the plastic ziploc bag of the reel for SOT&SOD Packages PCN#080111 PDF 08/15/2011
070103 Pb(Lead) Free Plating Conversion PDF 07/01/2003

Similar Recommendations

Part Number Category Package Type Status Datasheet
MMBZ5229B ZENER DIODES SOT-23 Active Datasheet
MMXZ5229B ZENER DIODES SOD-323 Active Datasheet
BZX84C4V3 ZENER DIODES SOT-23 Active Datasheet
BZX84C4V3W ZENER DIODES SOT-323 Active Datasheet
