Zener Diodes | Status : Active

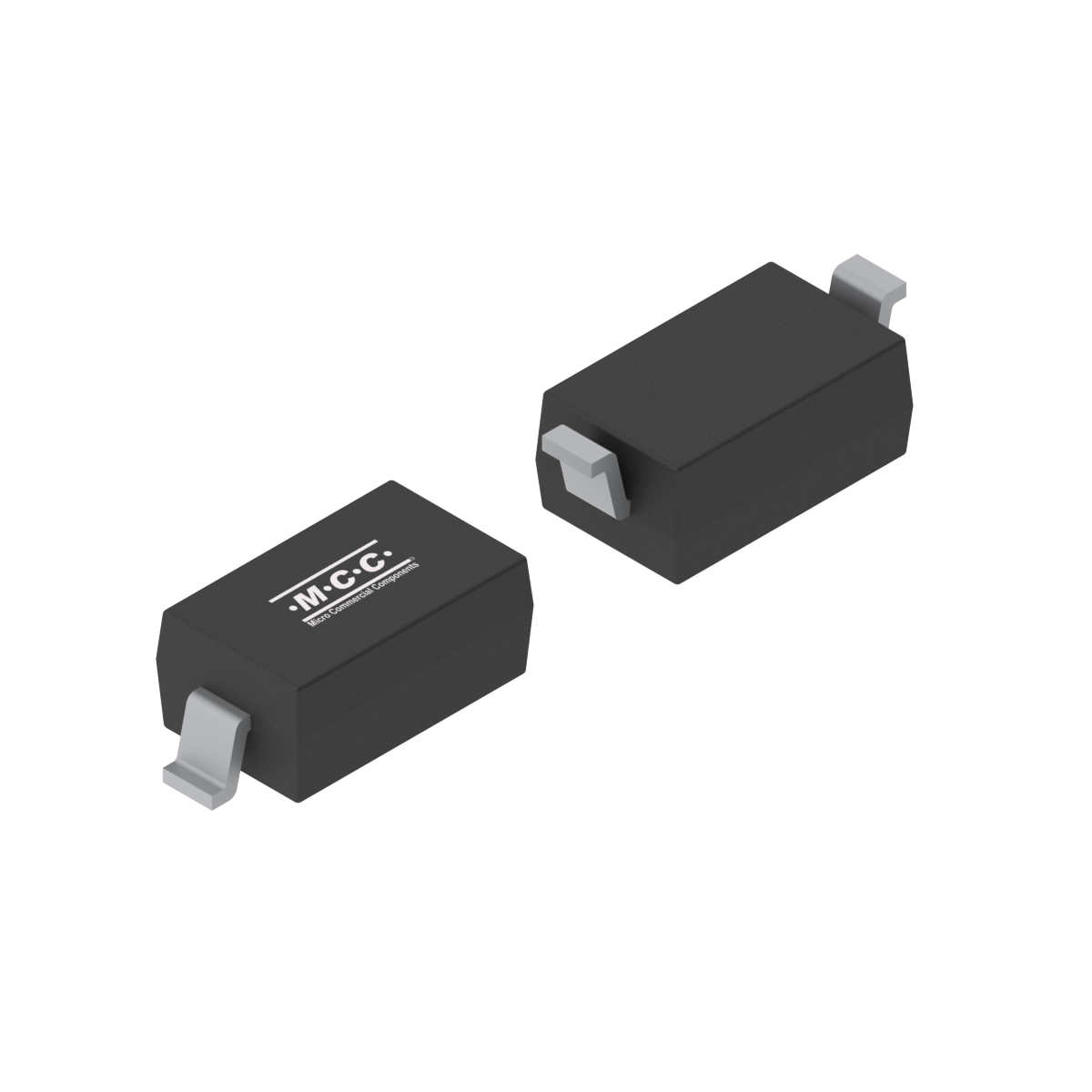

MMSZ5230B

  • Package Type:SOD-123
  • Packing Info:Tape : 3K/Reel, 120K/Ctn;
  • Category:Zener Diodes
  • MPN:MMSZ5230B-TP
Check Stock Add To Cart
Datasheet ECAD Model

Product Detail

Part Number Number of Functions PD(W) VZ[Nom](V) IZT(mA) IR (mA) [max]
@VR		 VR(V) ZZT(Ω)
@IZT		 ZZK(Ω)
@IZT		 IZK(mA) Tj [max]
(°C)
MMSZ5230B Single 0.5 4.7 20 0.005 2 19 1900 0.25 150
Part Number MMSZ5230B Number of Functions Single PD(W)  0.5 VZ[Nom](V)  4.7 IZT(mA)  20 IR (mA) [max]
@VR  0.005 		VR(V)  2 ZZT(Ω)
@IZT  19 		ZZK(Ω)
@IZT  1900 		IZK(mA)  0.25 Tj [max]
(°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
MMSZ5230B SOD-123 SOD-123 0.0090 G5 Tape : 3K/Reel, 120K/Ctn;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report Halogen Free
Tin Whisker Test Report Halogen Free

ECN/PCN

ECN/PCN No# Title PDF Issued Date
080111 Remove the plastic ziploc bag of the reel for SOT&SOD Packages PCN#080111 PDF 08/15/2011
070103 Pb(Lead) Free Plating Conversion PDF 07/01/2003
