ESD Protection Devices | Status : Active

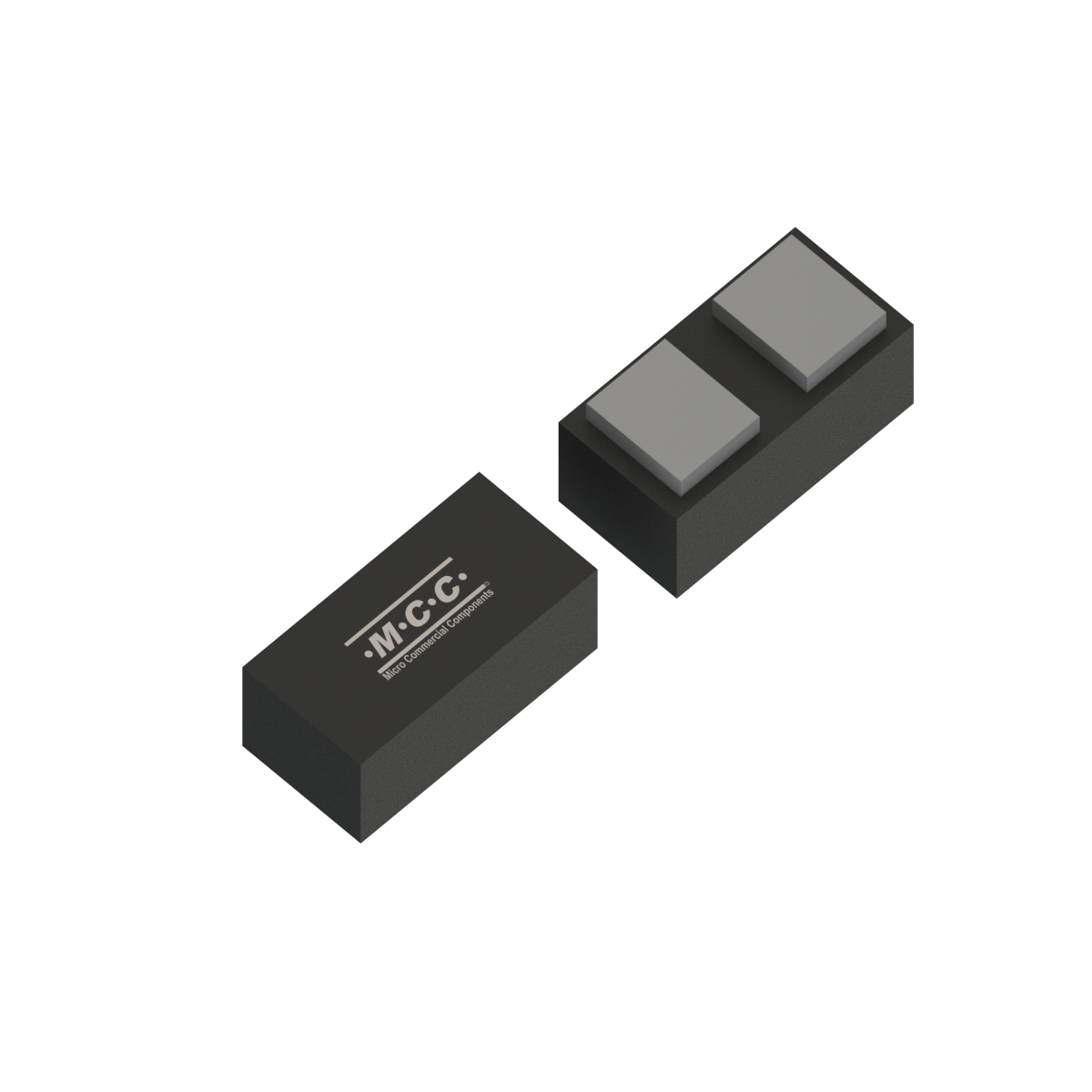

CSPSBSLC24VAE

Check Stock Add To Cart
Datasheet ECAD Model

Product Detail

Part Number Number of Functions Configuration Reverse
Standoff
Voltage
VRWM(V)		 Peak Pulse
Current
IPP(A)		 Max.
Clamping
Voltage
VC (V)		 Junction
Capacitance
CJ(pF)		 Peak Pluse
Power
Dissipation
PPPK (W)		 Maximum
Reverse
Leakage
IR (uA)		 Breakdown
Voltage
Min VBR(V)		 Breakdown
Voltage
Max VBR(V)		 Junction
Temperature
Tj [max] (°C)		 VESDIEC61000-4-2
Air/Contact
(kV)
CSPSBSLC24VAE 1 Bidirectional 24 5 8 0.7 40 0.2 26 125 ±15
Part Number CSPSBSLC24VAE Number of Functions 1 Configuration Bidirectional Reverse
Standoff
Voltage
VRWM(V)  24 		Peak Pulse
Current
IPP(A)  5 		Max.
Clamping
Voltage
VC (V)  8 		Junction
Capacitance
CJ(pF)  0.7 		Peak Pluse
Power
Dissipation
PPPK (W)  40 		Maximum
Reverse
Leakage
IR (uA)  0.2 		Breakdown
Voltage
Min VBR(V)  26 		Breakdown
Voltage
Max VBR(V)   		Junction
Temperature
Tj [max] (°C)  125 		VESDIEC61000-4-2
Air/Contact
(kV)  ±15

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
CSPSBSLC24VAE CSP0201 CSP0201 0.0001 CR Tape&Reel:10Kpcs/Reel;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
