ESD Protection Devices | Status : Active

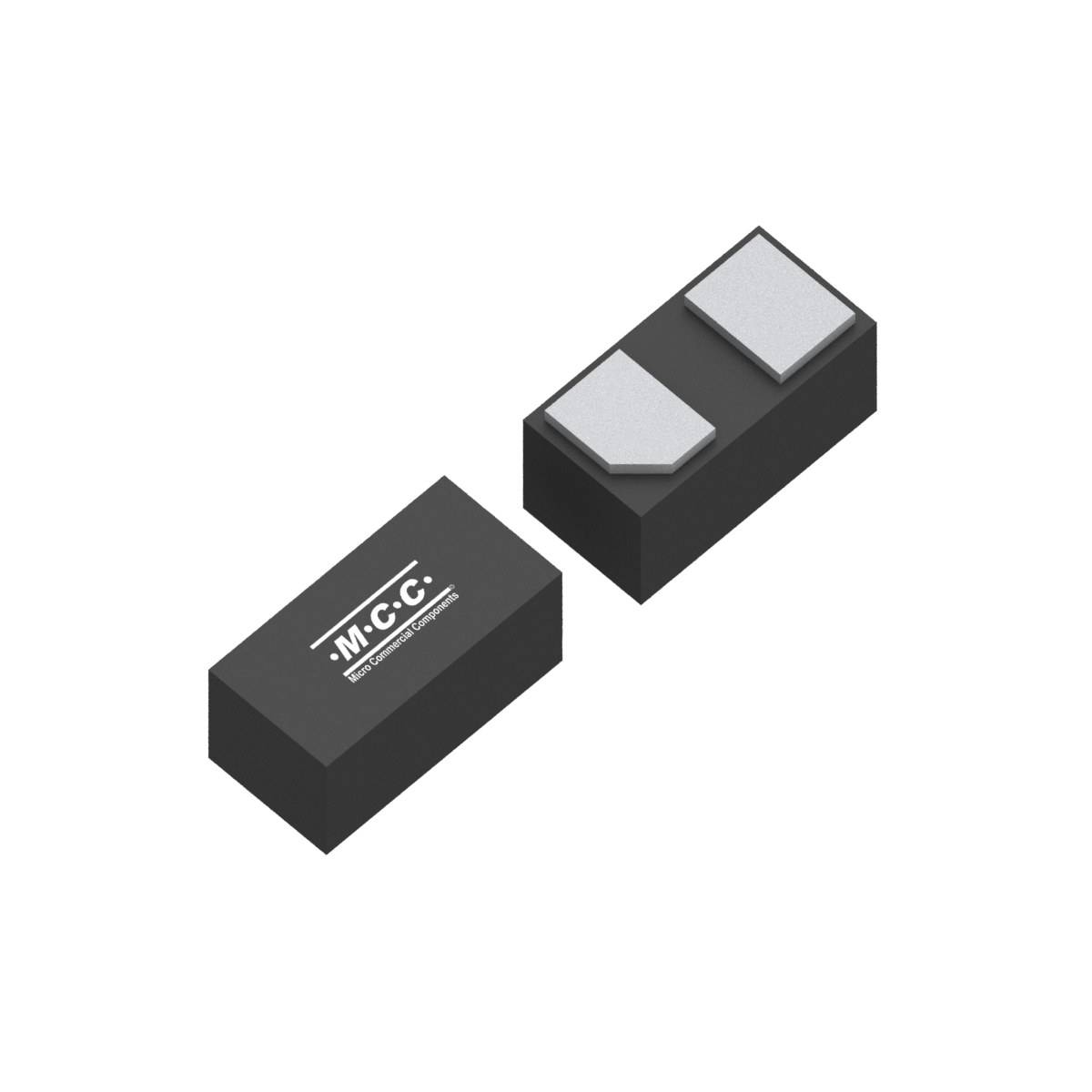

ESDSBULC5V0AE2

Check Stock Add To Cart
Datasheet ECAD Model

Product Detail

Part Number Number of Functions Configuration Reverse
Standoff
Voltage
VRWM(V)		 Peak Pulse
Current
IPP(A)		 Max.
Clamping
Voltage
VC (V)		 Junction
Capacitance
CJ(pF)		 Peak Pluse
Power
Dissipation
PPPK (W)		 Maximum
Reverse
Leakage
IR (uA)		 Breakdown
Voltage
Min VBR(V)		 Breakdown
Voltage
Max VBR(V)		 Junction
Temperature
Tj [max] (°C)		 VESDIEC61000-4-2
Air/Contact
(kV)
ESDSBULC5V0AE2 1 Bidirectional 5 13 10 0.5 130 0.2 6 85 ±30
Part Number ESDSBULC5V0AE2 Number of Functions 1 Configuration Bidirectional Reverse
Standoff
Voltage
VRWM(V)  5 		Peak Pulse
Current
IPP(A)  13 		Max.
Clamping
Voltage
VC (V)  10 		Junction
Capacitance
CJ(pF)  0.5 		Peak Pluse
Power
Dissipation
PPPK (W)  130 		Maximum
Reverse
Leakage
IR (uA)  0.2 		Breakdown
Voltage
Min VBR(V)  6 		Breakdown
Voltage
Max VBR(V)   		Junction
Temperature
Tj [max] (°C)  85 		VESDIEC61000-4-2
Air/Contact
(kV)  ±30

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
ESDSBULC5V0AE2 0201-A 0201-A 0.0002 4R Tape&Reel: 10Kpcs/Reel;

Environmental Information link icon

Reliability Report Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Environmental Compliance Download
