TVS | Status : Active

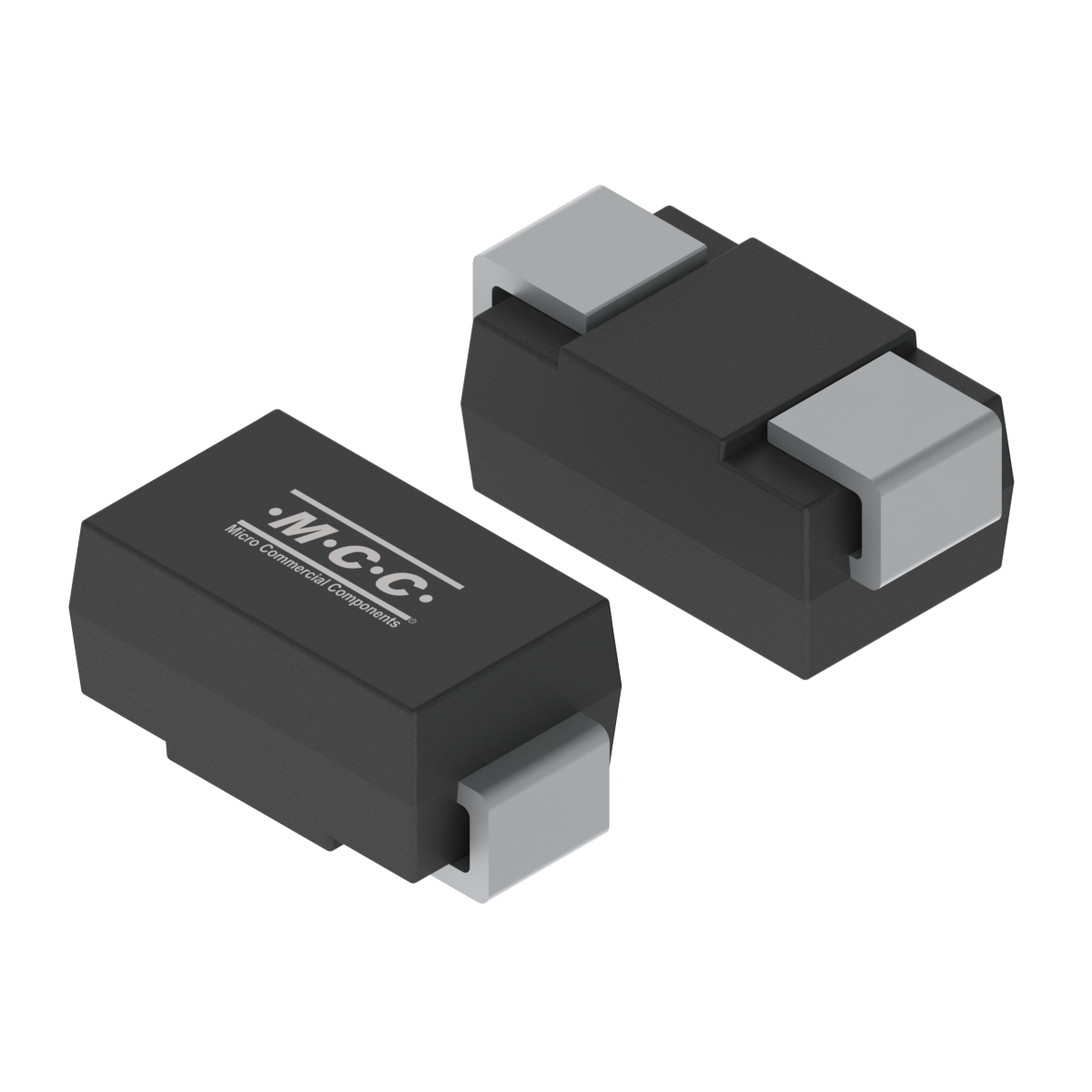

SMAJ5.0CA

  • Package Type:SMA
  • Packing Info: Tape: 5K/Reel, 80K/Ctn;
  • Category:TVS
Check Stock Add To Cart
Datasheet ECAD Model Spice Model

Product Detail

Part Number Configuration Peak Pluse
Power
Dissipation
PPPM (W)		 Reverse
Standoff
Voltage
VRWM(V)		 Reverse
Leakage
IR(uA)		 Max.
Clamping
Voltage
VC (V)		 Peak Pulse
Current
IPP(A) 		Breakdown
Voltage
Min VBR(V)		 Breakdown
Voltage
Max VBR(V)		 Junction
Temperature
Tj [max] (°C)
SMAJ5.0CA Bidirectional 400 5 800 9.2 43.5 6.4 7 175
Part Number SMAJ5.0CA Configuration Bidirectional Peak Pluse
Power
Dissipation
PPPM (W)  400 		Reverse
Standoff
Voltage
VRWM(V)  5 		Reverse
Leakage
IR(uA)  800 		Max.
Clamping
Voltage
VC (V)  9.2 		Peak Pulse
Current
IPP(A)  43.5 		Breakdown
Voltage
Min VBR(V)  6.4 		Breakdown
Voltage
Max VBR(V)  7 		Junction
Temperature
Tj [max] (°C)  175

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
SMAJ5.0CA SMA SMA 0.0600 WE Tape: 5K/Reel, 80K/Ctn;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report Halogen Free
Tin Whisker Test Report Halogen Free

ECN/PCN

ECN/PCN No# Title PDF Issued Date
080816-1 MCC Introduces Auto-Assembly Process For Some SMD TVS PDF 08/08/2016
070103 Pb(Lead) Free Plating Conversion PDF 07/01/2003
