TVS | Status : Active

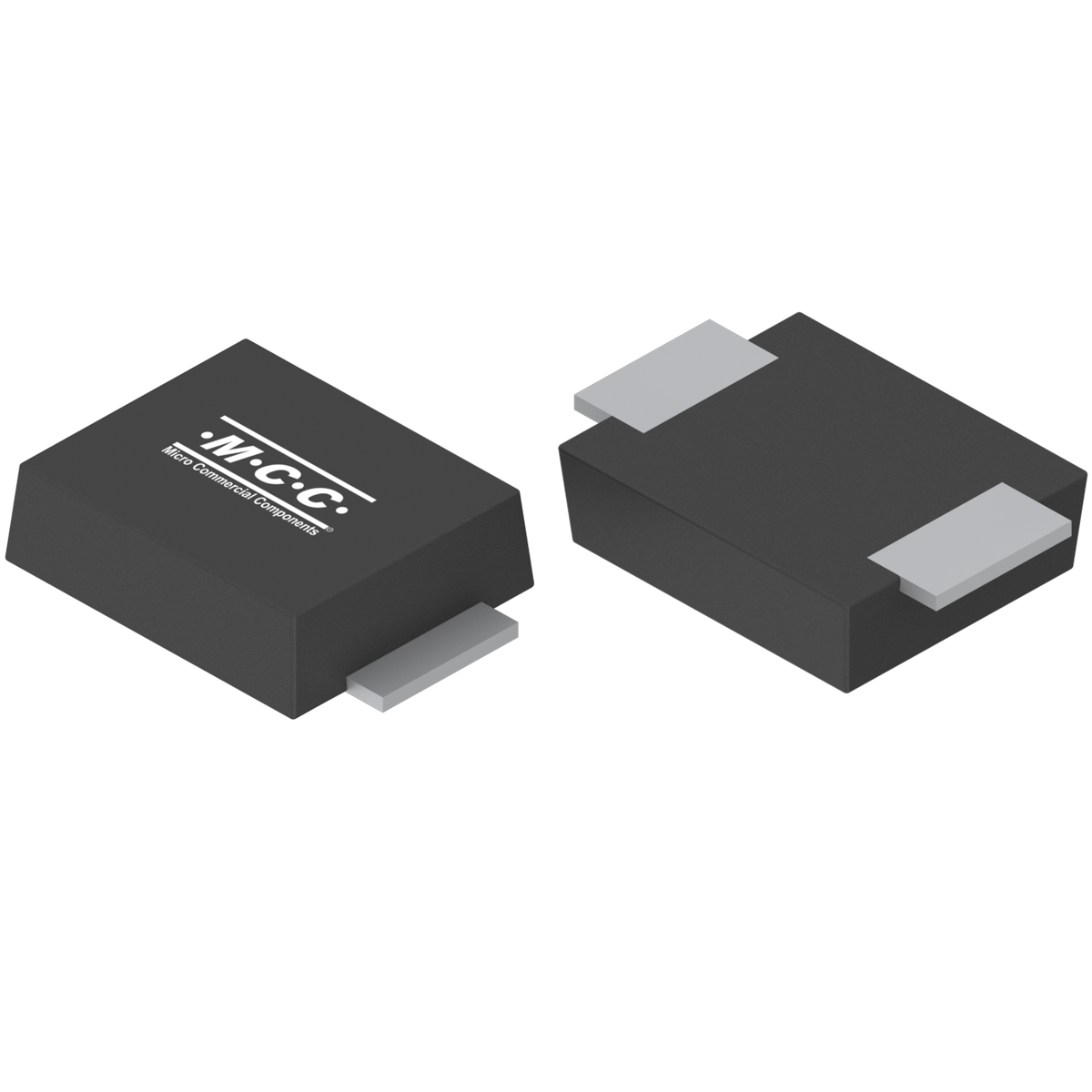

SMBF40A

  • Package Type:SMBF
  • Packing Info: Tape&Reel: 5Kpcs/Reel;
  • Category:TVS
Check Stock Add To Cart
Datasheet ECAD Model

Product Detail

Part Number Configuration Peak Pluse
Power
Dissipation
PPPM (W)		 Reverse
Standoff
Voltage
VRWM(V)		 Reverse
Leakage
IR(uA)		 Max.
Clamping
Voltage
VC (V)		 Peak Pulse
Current
IPP(A) 		Breakdown
Voltage
Min VBR(V)		 Breakdown
Voltage
Max VBR(V)		 Junction
Temperature
Tj [max] (°C)
SMBF40A Unidirectional 600 40 1 64.5 9.3 44.4 49.1 150
Part Number SMBF40A Configuration Unidirectional Peak Pluse
Power
Dissipation
PPPM (W)  600 		Reverse
Standoff
Voltage
VRWM(V)  40 		Reverse
Leakage
IR(uA)  1 		Max.
Clamping
Voltage
VC (V)  64.5 		Peak Pulse
Current
IPP(A)  9.3 		Breakdown
Voltage
Min VBR(V)  44.4 		Breakdown
Voltage
Max VBR(V)  49.1 		Junction
Temperature
Tj [max] (°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
SMBF40A SMBF SMBF 0.0650 40A Tape&Reel: 5Kpcs/Reel;
