TVS | Status : Active

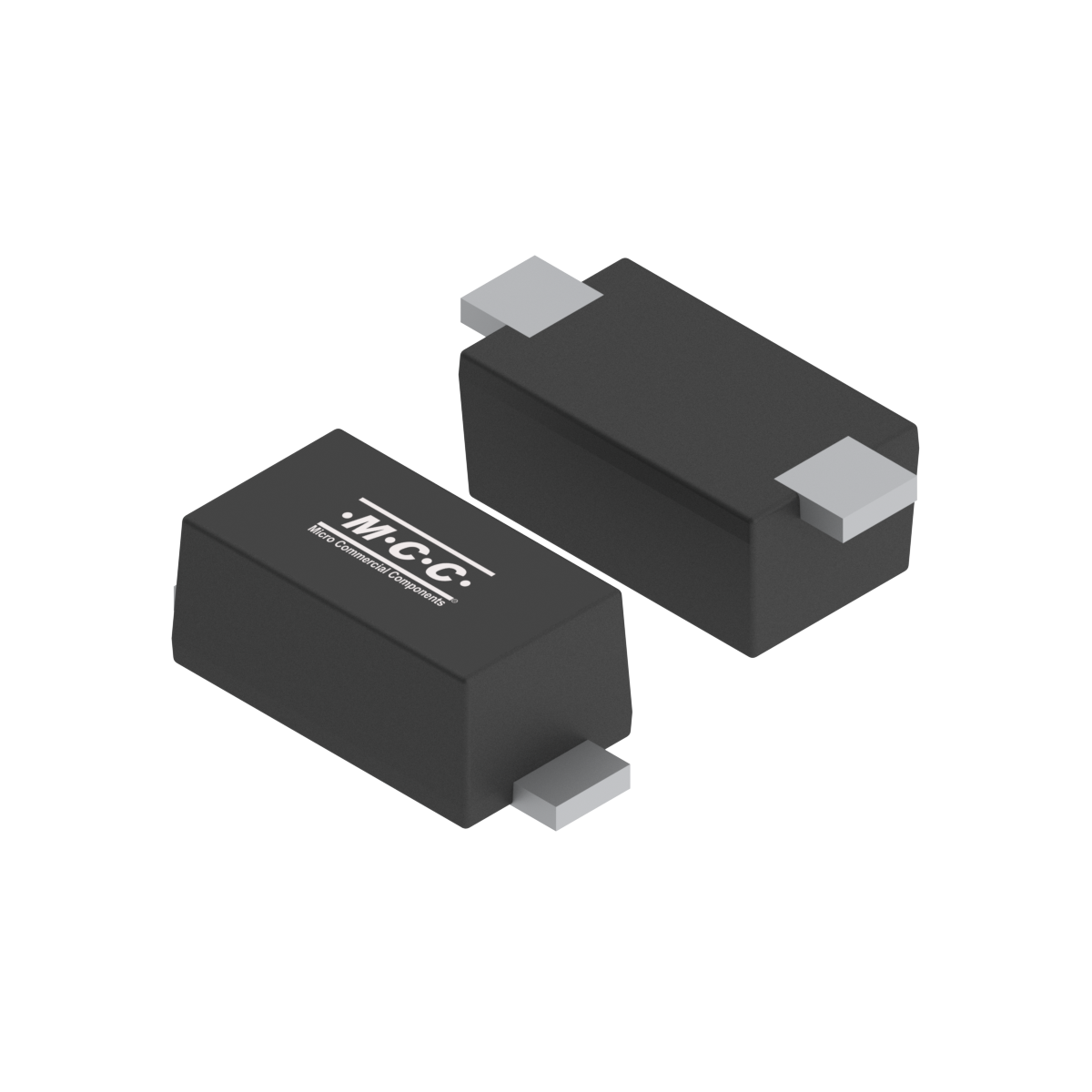

SMF12A

  • Package Type:SOD-123FL
  • Packing Info: Tape&Reel: 2.5Kpcs/Reel;
  • Category:TVS
Check Stock Add To Cart
Datasheet ECAD Model

Product Detail

Part Number Configuration Peak Pluse
Power
Dissipation
PPPM (W)		 Reverse
Standoff
Voltage
VRWM(V)		 Reverse
Leakage
IR(uA)		 Max.
Clamping
Voltage
VC (V)		 Peak Pulse
Current
IPP(A) 		Breakdown
Voltage
Min VBR(V)		 Breakdown
Voltage
Max VBR(V)		 Junction
Temperature
Tj [max] (°C)
SMF12A Unidirectional 200 12 2.5 19.9
Part Number SMF12A Configuration Unidirectional Peak Pluse
Power
Dissipation
PPPM (W)  200 		Reverse
Standoff
Voltage
VRWM(V)  12 		Reverse
Leakage
IR(uA)  2.5 		Max.
Clamping
Voltage
VC (V)  19.9 		Peak Pulse
Current
IPP(A)   		Breakdown
Voltage
Min VBR(V)   		Breakdown
Voltage
Max VBR(V)   		Junction
Temperature
Tj [max] (°C)

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
SMF12A SOD-123FL SOD-123FL 0.0180 12A Tape&Reel: 2.5Kpcs/Reel;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report Halogen Free
Tin Whisker Test Report Halogen Free

ECN/PCN

ECN/PCN No# Title PDF Issued Date
070103 Pb(Lead) Free Plating Conversion PDF 07/01/2003
