TVS | Status :
Active

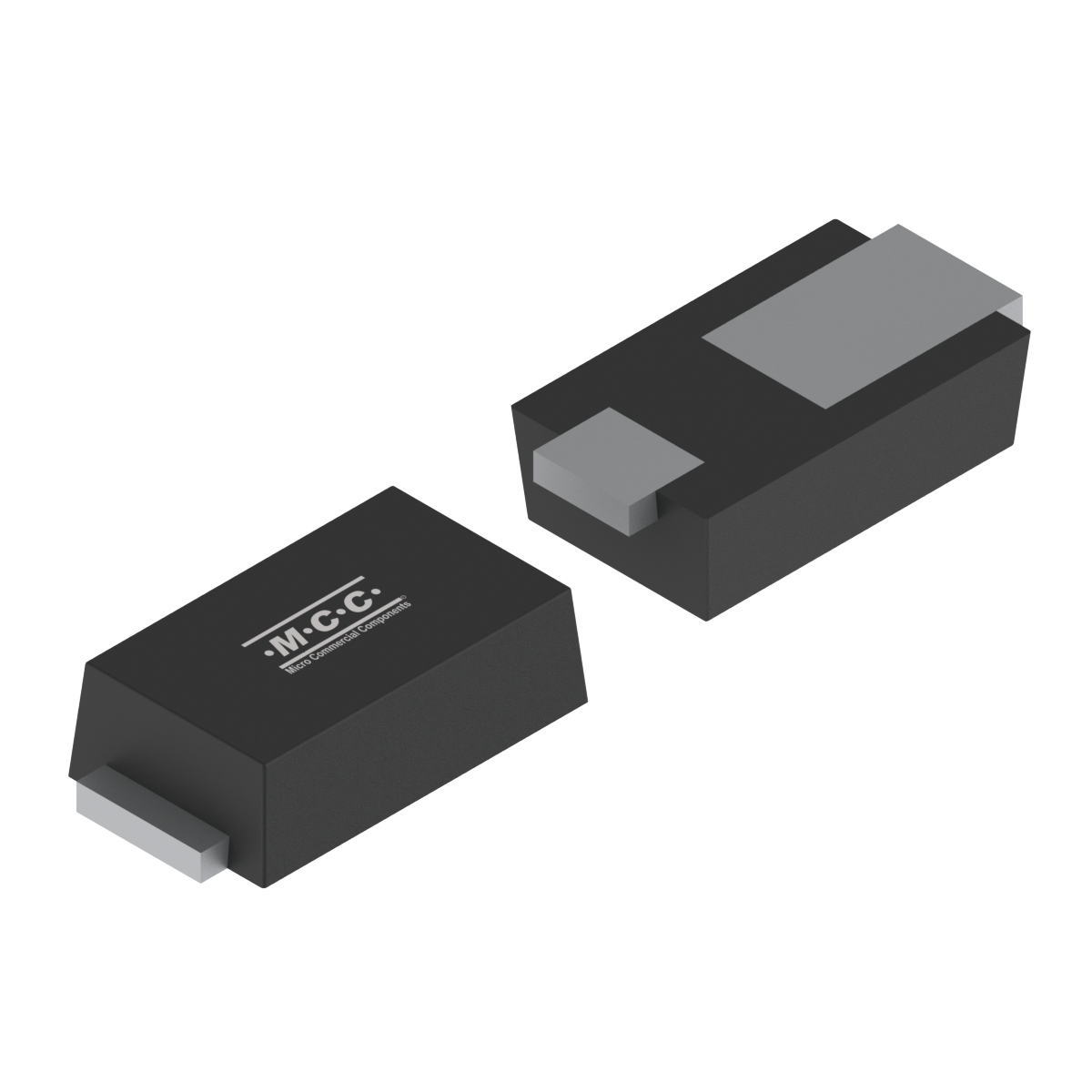

SMHE30A
- Package Type:SOD-323HE-B
- Packing Info:Tape&Reel:2.5Kpcs/Reel;
- Category:TVS
Product Detail
| Part Number | Configuration | Peak Pluse Power Dissipation PPPM (W) |
Reverse Standoff Voltage VRWM(V) |
Reverse Leakage IR(uA) |
Max. Clamping Voltage VC (V) |
Peak Pulse Current IPP(A) |
Breakdown Voltage Min VBR(V) |
Breakdown Voltage Max VBR(V) |
Junction Temperature Tj [max] (°C) |
|---|---|---|---|---|---|---|---|---|---|
| SMHE30A | Unidirectional | 150 | 30 | 1 | 48.4 | 3.1 | 33.3 | 36.8 | 150 |
| Part Number SMHE30A | Configuration Unidirectional |
Peak Pluse Power Dissipation PPPM (W) 150 |
Reverse Standoff Voltage VRWM(V) 30 |
Reverse Leakage IR(uA) 1 |
Max. Clamping Voltage VC (V) 48.4 |
Peak Pulse Current IPP(A) 3.1 |
Breakdown Voltage Min VBR(V) 33.3 |
Breakdown Voltage Max VBR(V) 36.8 |
Junction Temperature Tj [max] (°C) 150 |
Packing Information
| Part Number | Package Type | Packing Specification | Component Weight (g) | Marking Code | Packing Info |
|---|---|---|---|---|---|
| SMHE30A | SOD-323HE-B | SOD-323HE-B | 0.0040 | CM | Tape&Reel:2.5Kpcs/Reel; |
Environmental Information
Download
| MSL | Halogen Free |
|---|---|
| 1 |
|
