TVS | Status : Active
Automotive

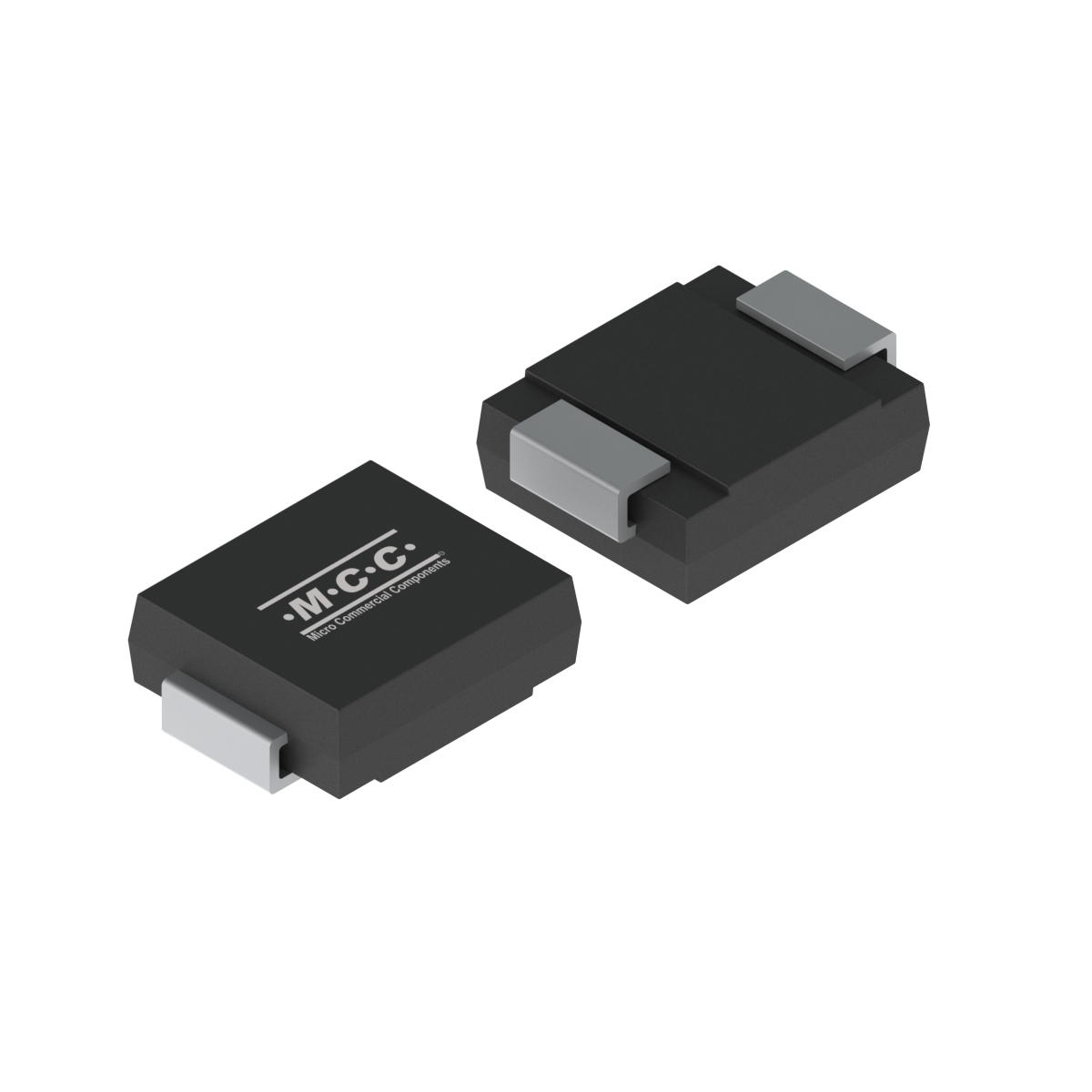

SMLJ78AQ

  • Package Type:SMC
  • Packing Info:Tape&Reel:3Kpcs/Reel;
  • Category:TVS
  • MPN:SMLJ78AQ-TP
Check Stock Add To Cart
Datasheet ECAD Model

Product Detail

Part Number Configuration Peak Pulse
Power
Dissipation
PPPM (W)		 Reverse
Standoff
Voltage
VRWM(V)		 Reverse
Leakage
IR(uA)		 Max.
Clamping
Voltage
VC (V)		 Peak Pulse
Current
IPP(A) 		Breakdown
Voltage
Min VBR(V)		 Breakdown
Voltage
Max VBR(V)		 Junction
Temperature
Tj [max] (°C)
SMLJ78AQ Unidirectional 3000 78 1 126 23.81 86.7 95.8 175
Part Number SMLJ78AQ Configuration Unidirectional Peak Pulse
Power
Dissipation
PPPM (W)  3000 		Reverse
Standoff
Voltage
VRWM(V)  78 		Reverse
Leakage
IR(uA)  1 		Max.
Clamping
Voltage
VC (V)  126 		Peak Pulse
Current
IPP(A)  23.81 		Breakdown
Voltage
Min VBR(V)  86.7 		Breakdown
Voltage
Max VBR(V)  95.8 		Junction
Temperature
Tj [max] (°C)  175

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
SMLJ78AQ SMC SMC 0.2570 PGT Tape&Reel:3Kpcs/Reel;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report MSL Halogen Free
Tin Whisker Test Report 1 Halogen Free
